DTC P0125: Closed Loop Temp Not Reached

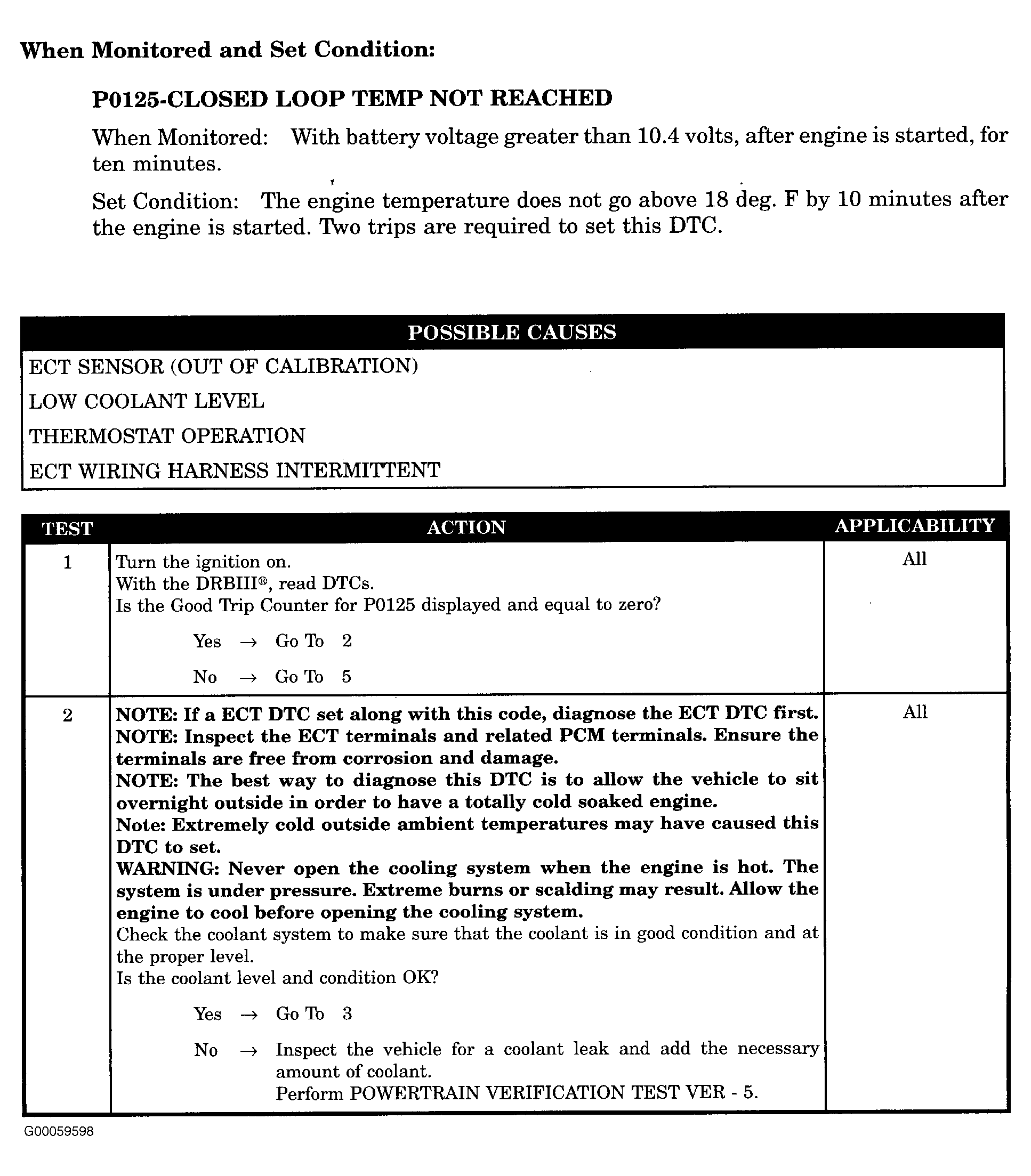

Fig 1: DTC P0125: Closed Loop Temp Not Reached (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

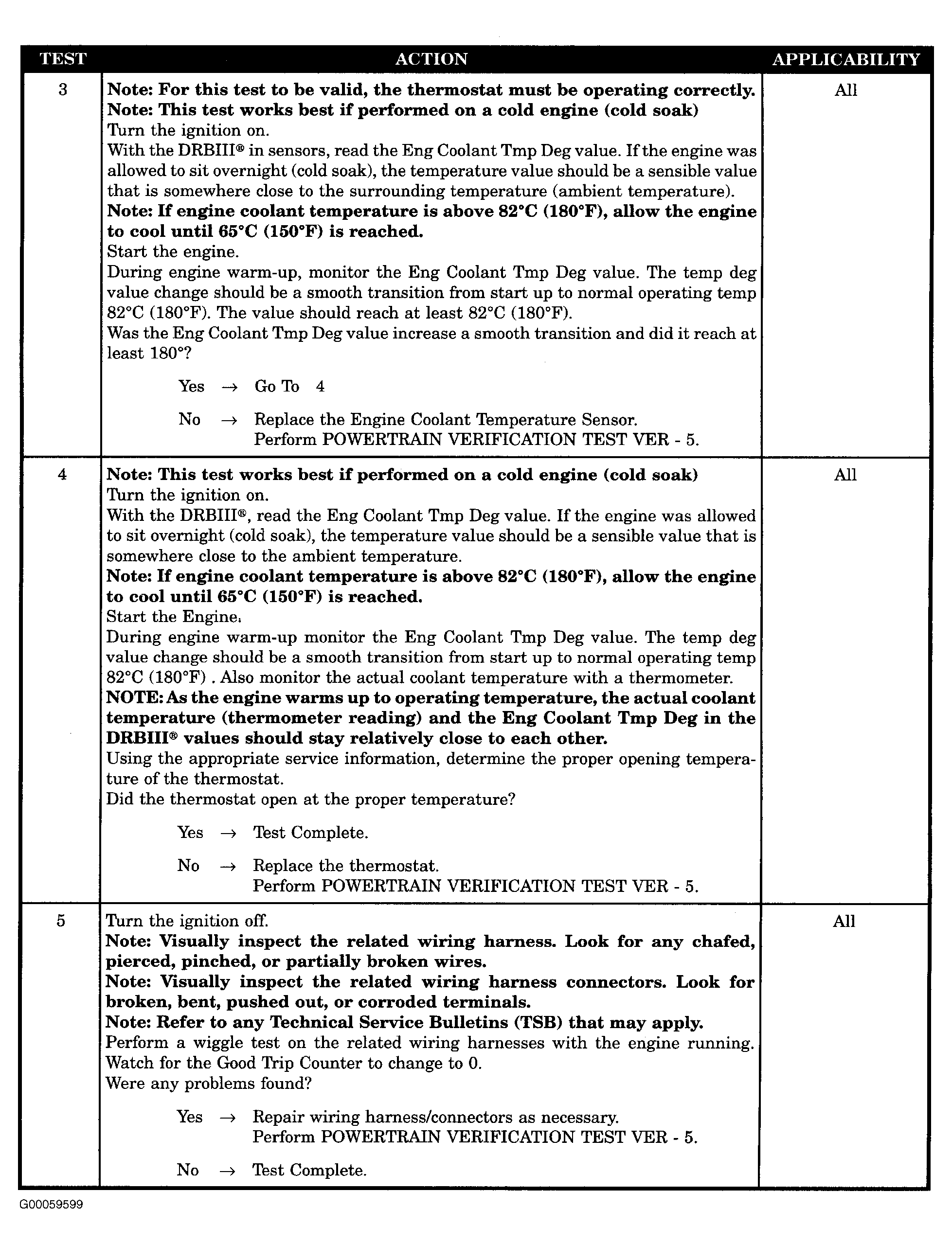

Fig 2: DTC P0125: Closed Loop Temp Not Reached (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
