Bus Failure Message - Bus (+) & Bus (-) Shorted Together: Testing

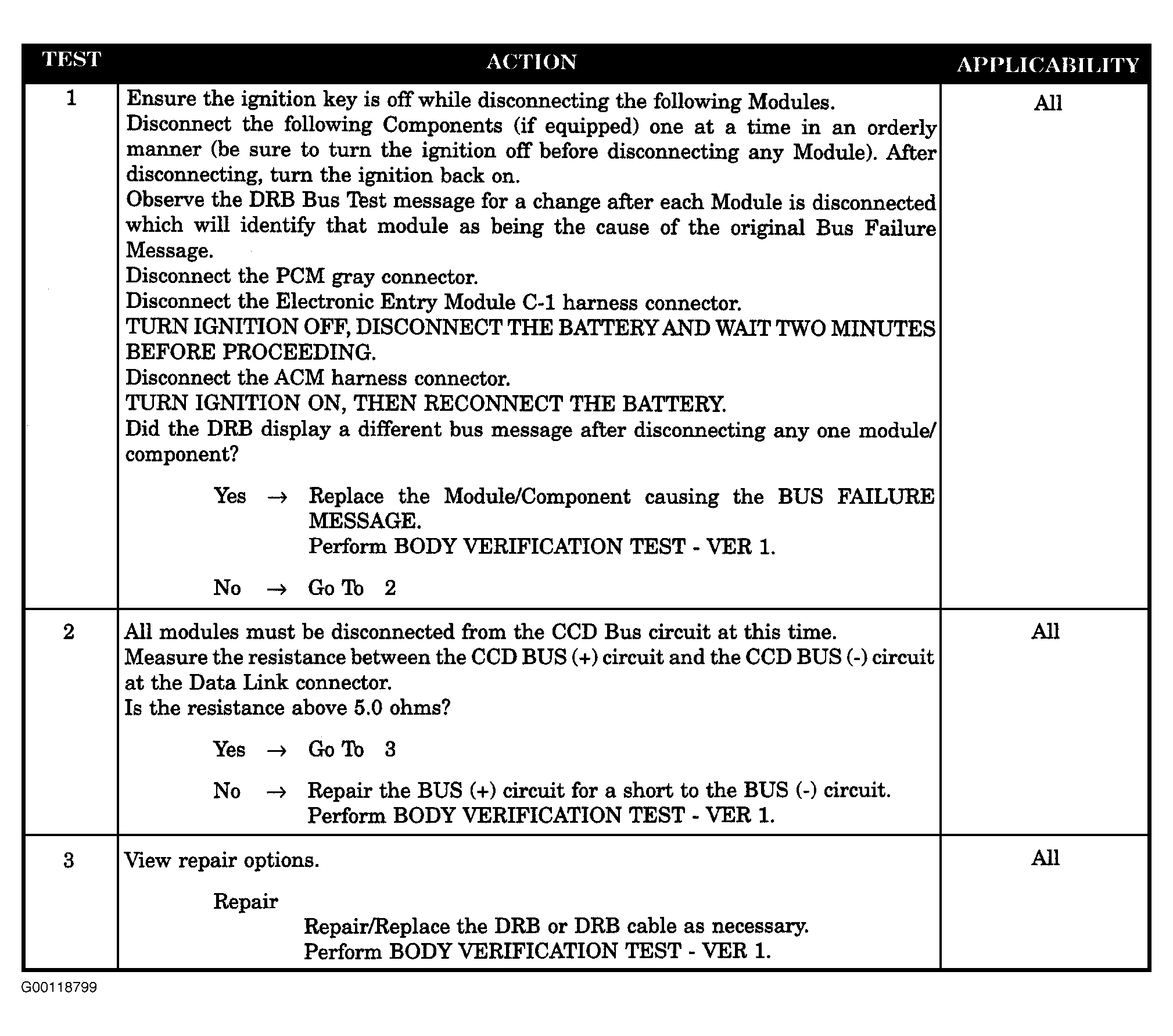

Fig 1: BUS Failure Message - BUS (+) & BUS (-) Shorted Together Test
G00118799Courtesy of DAIMLERCHRYSLER CORP.
