Passenger Squib Circuit Open (Active): Testing

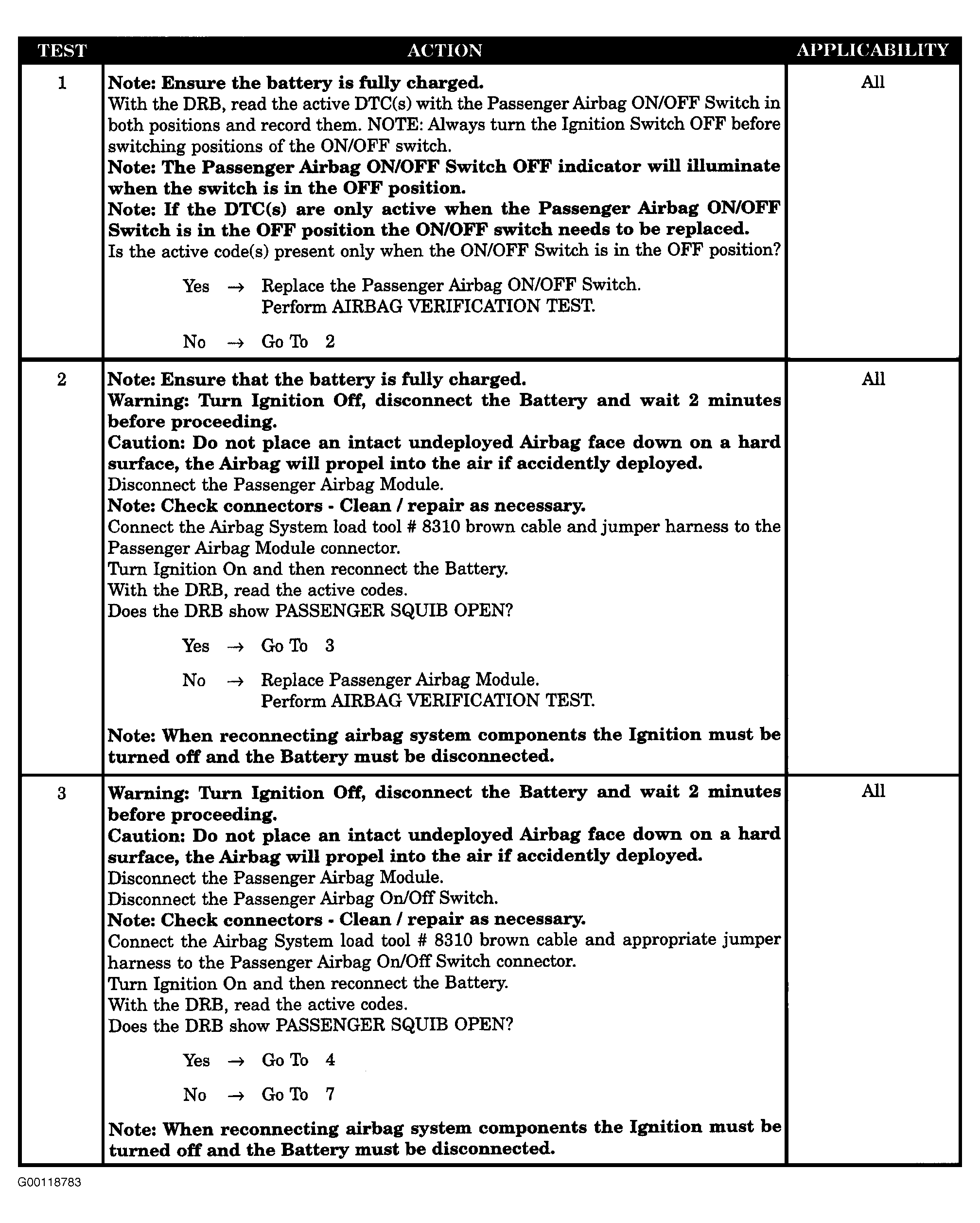

Fig 1: Passenger Squib Circuit Open (Active) Test (1 Of 3)
G00118783Courtesy of DAIMLERCHRYSLER CORP.

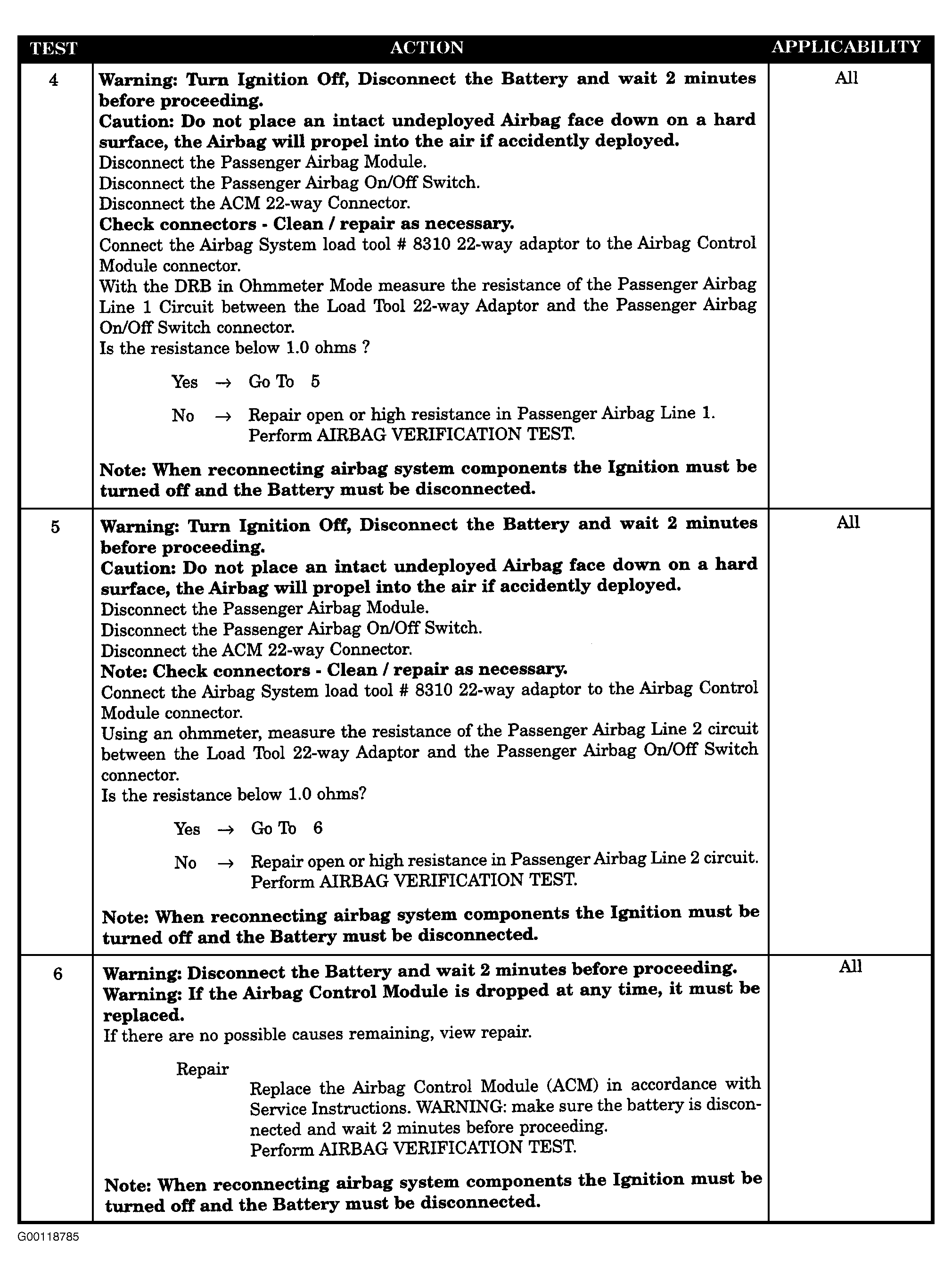

Fig 2: Passenger Squib Circuit Open (Active) Test (2 Of 3)
G00118785Courtesy of DAIMLERCHRYSLER CORP.

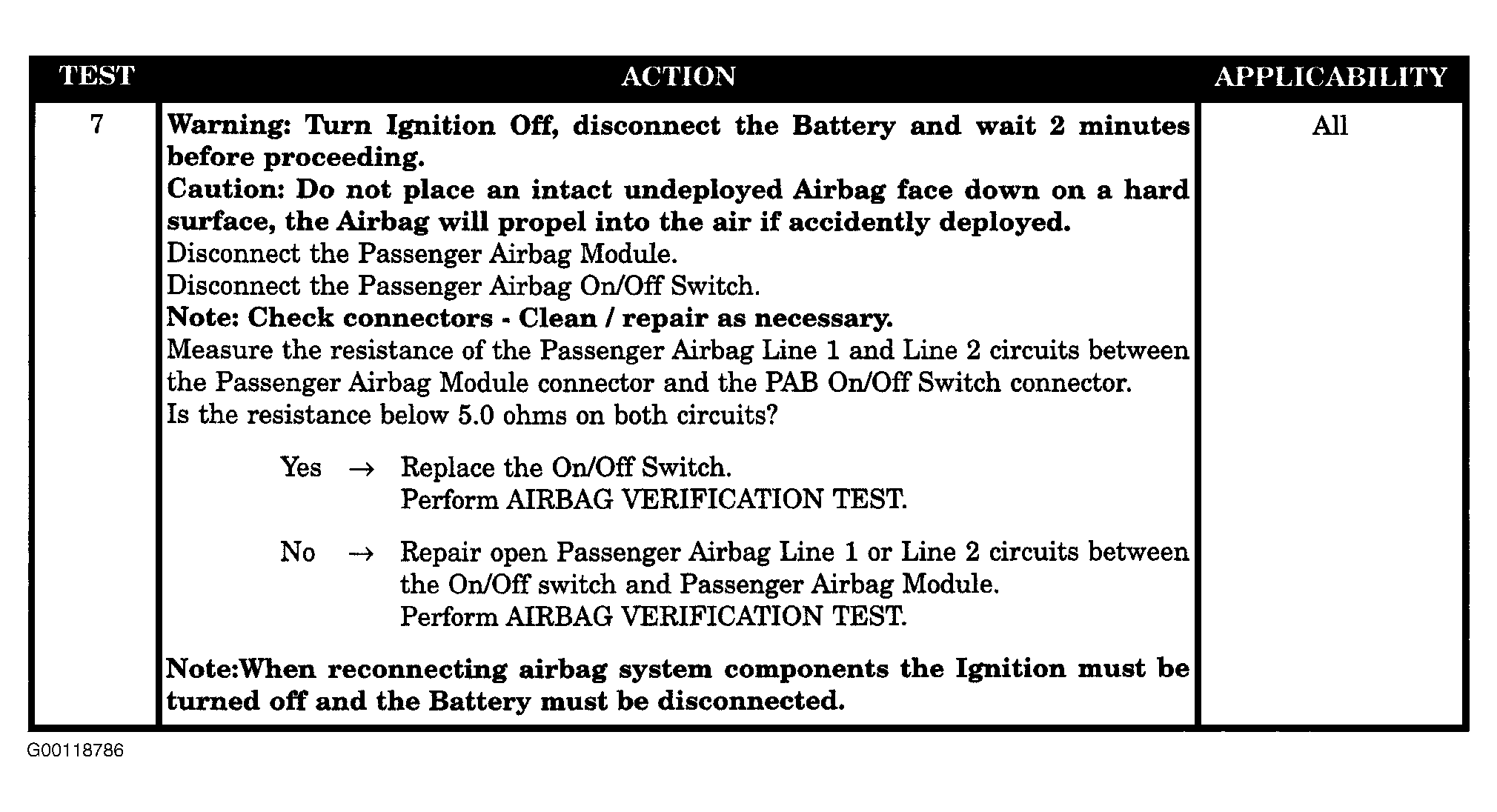

Fig 3: Passenger Squib Circuit Open (Active) Test (3 Of 3)
G00118786Courtesy of DAIMLERCHRYSLER CORP.
