Bus Failure Message - No Termination: Testing

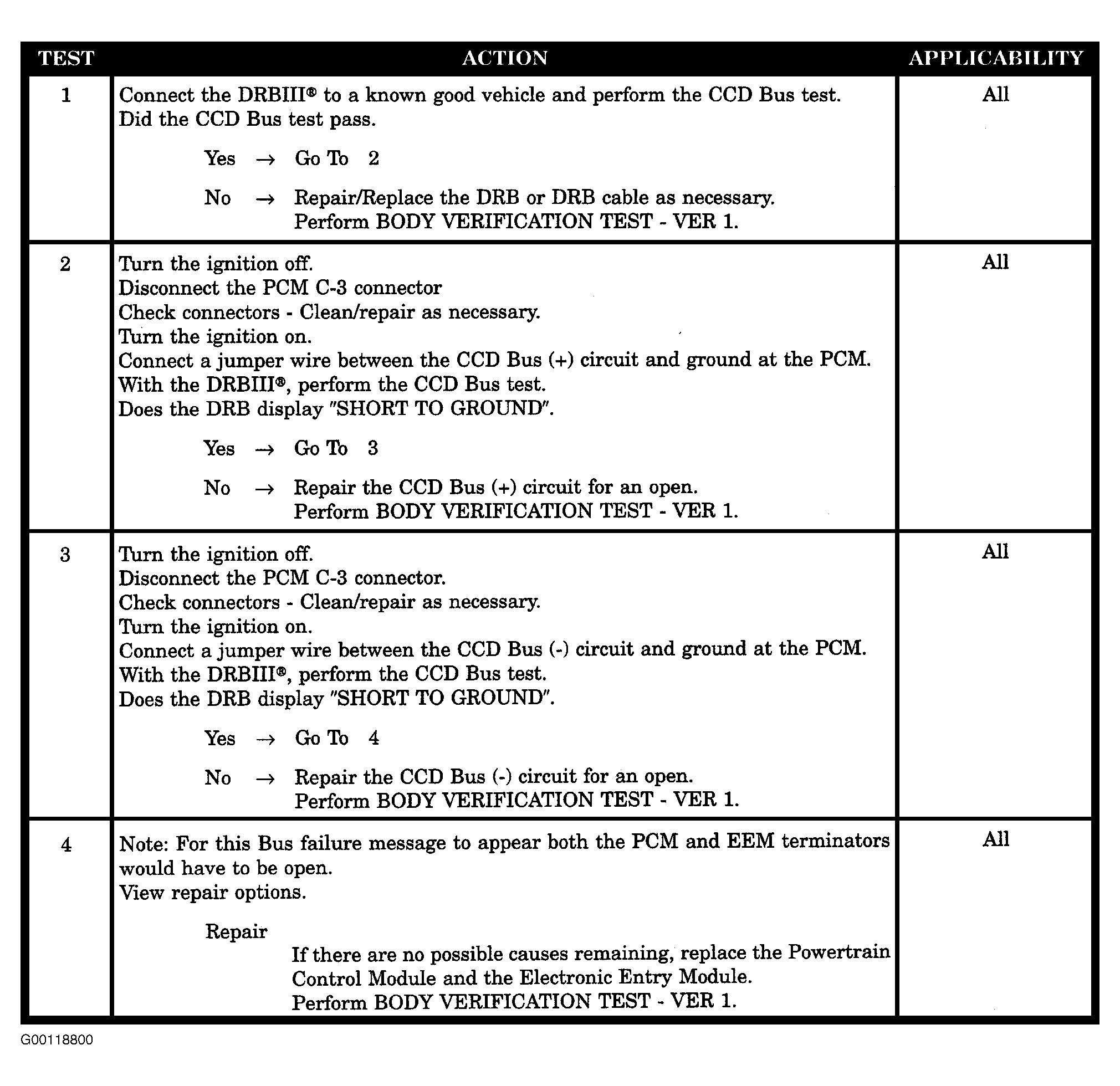

Fig 1: BUS Failure Message - No Termination Test

G00118800

Courtesy of DAIMLERCHRYSLER CORP.
