Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

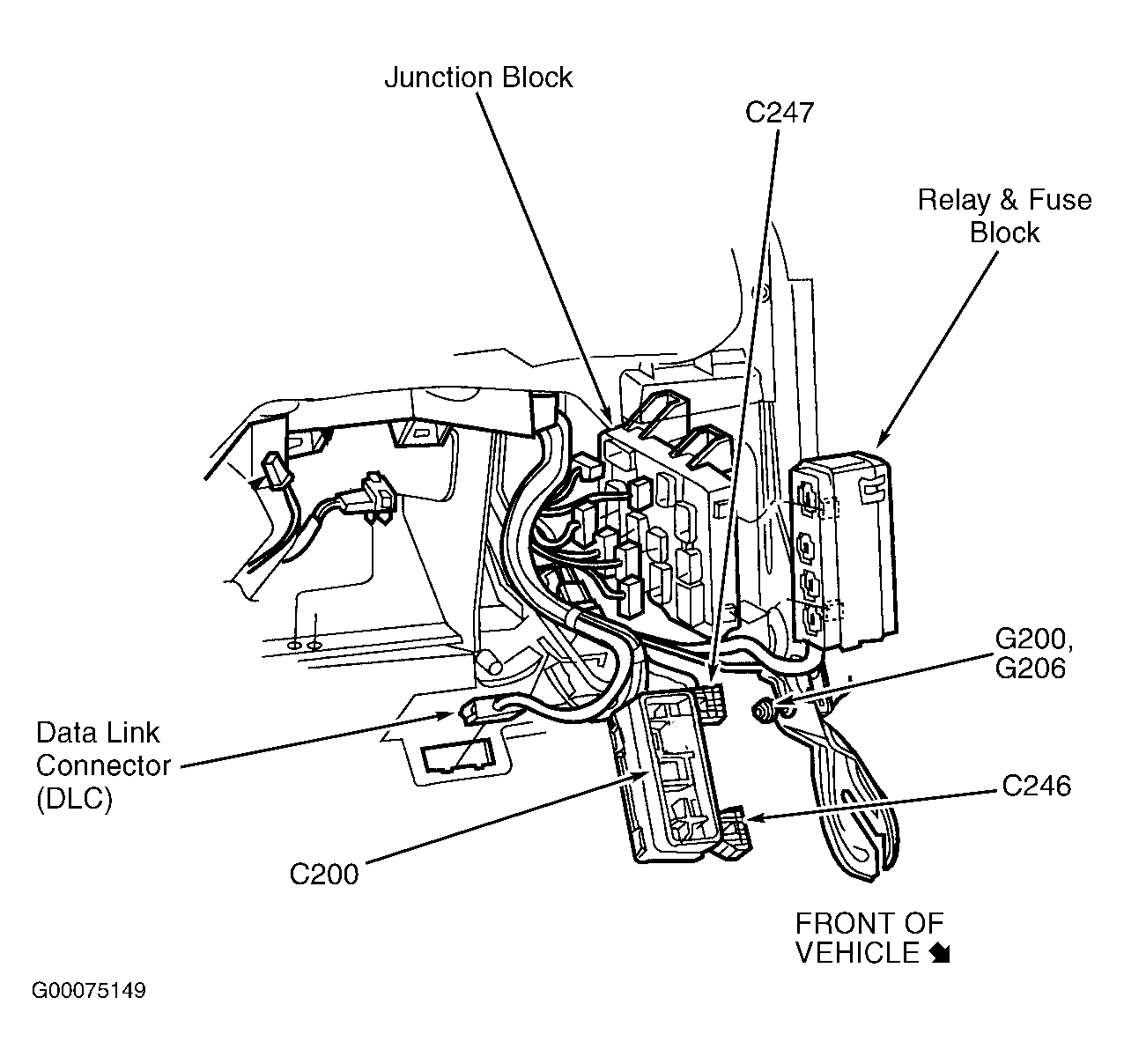

Fig 1: Behind Left Side Of Dash

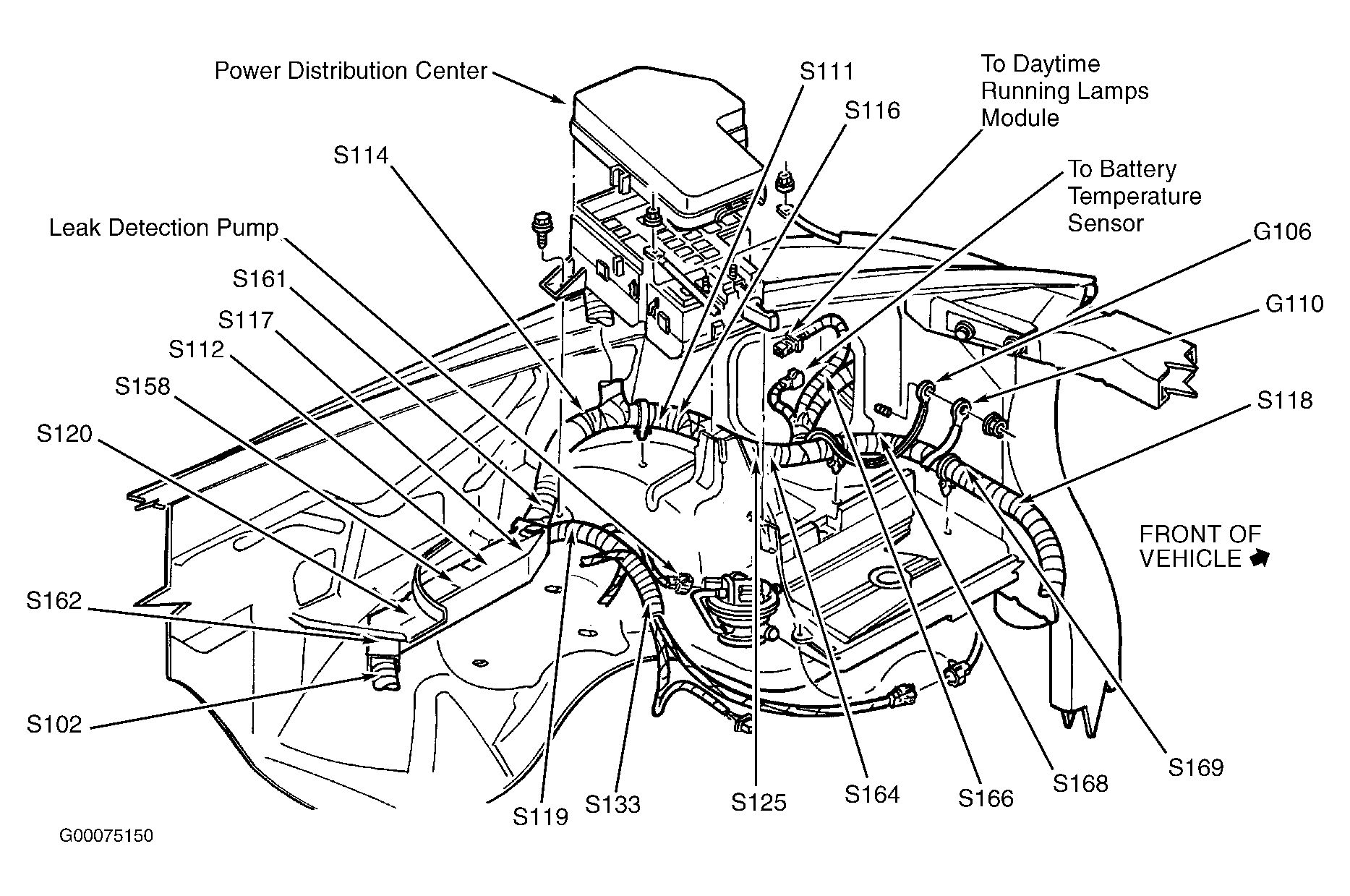

Fig 2: Left Side Of Engine Compartment

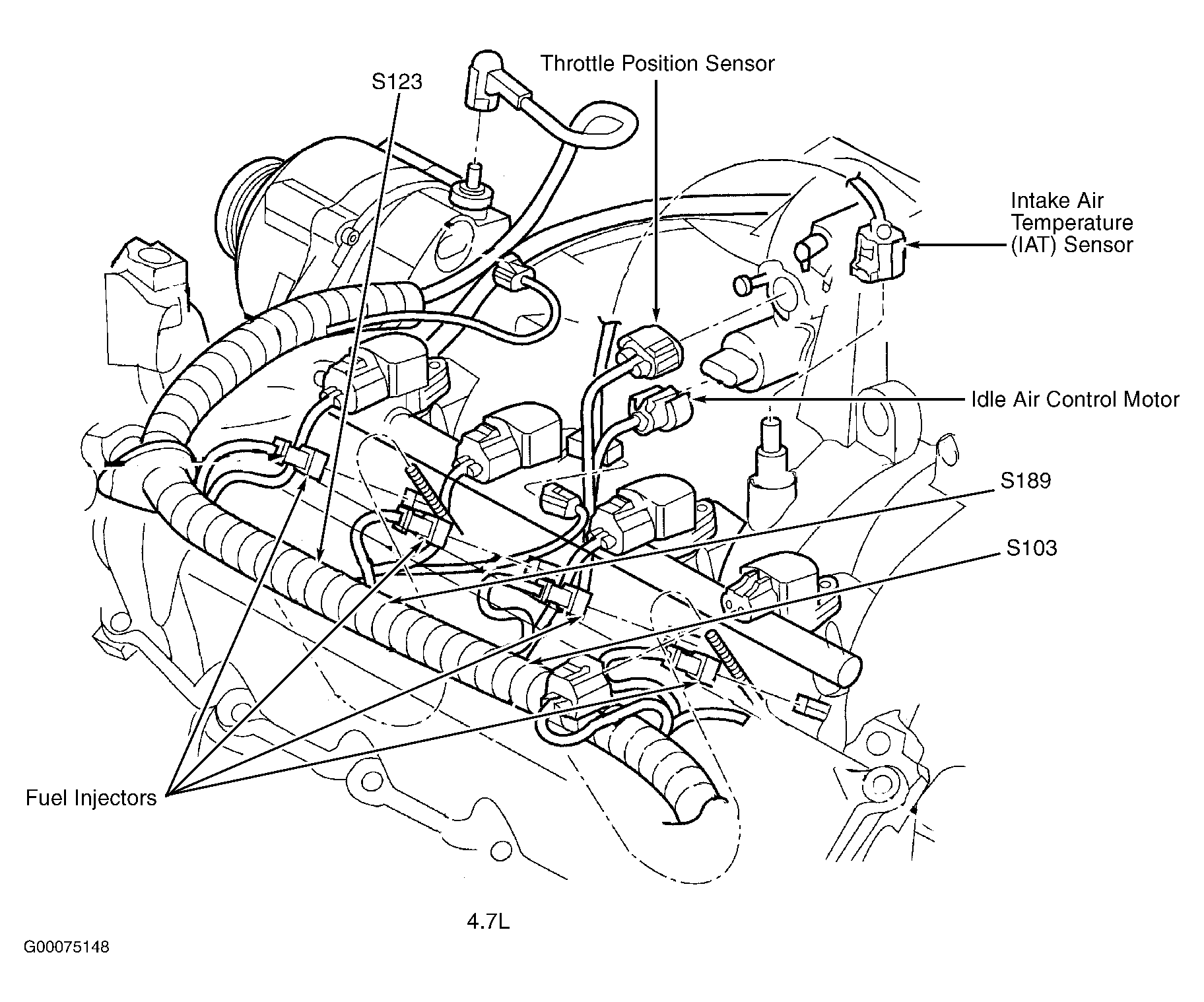

Fig 3: Left Side Of Engine (4.7L)

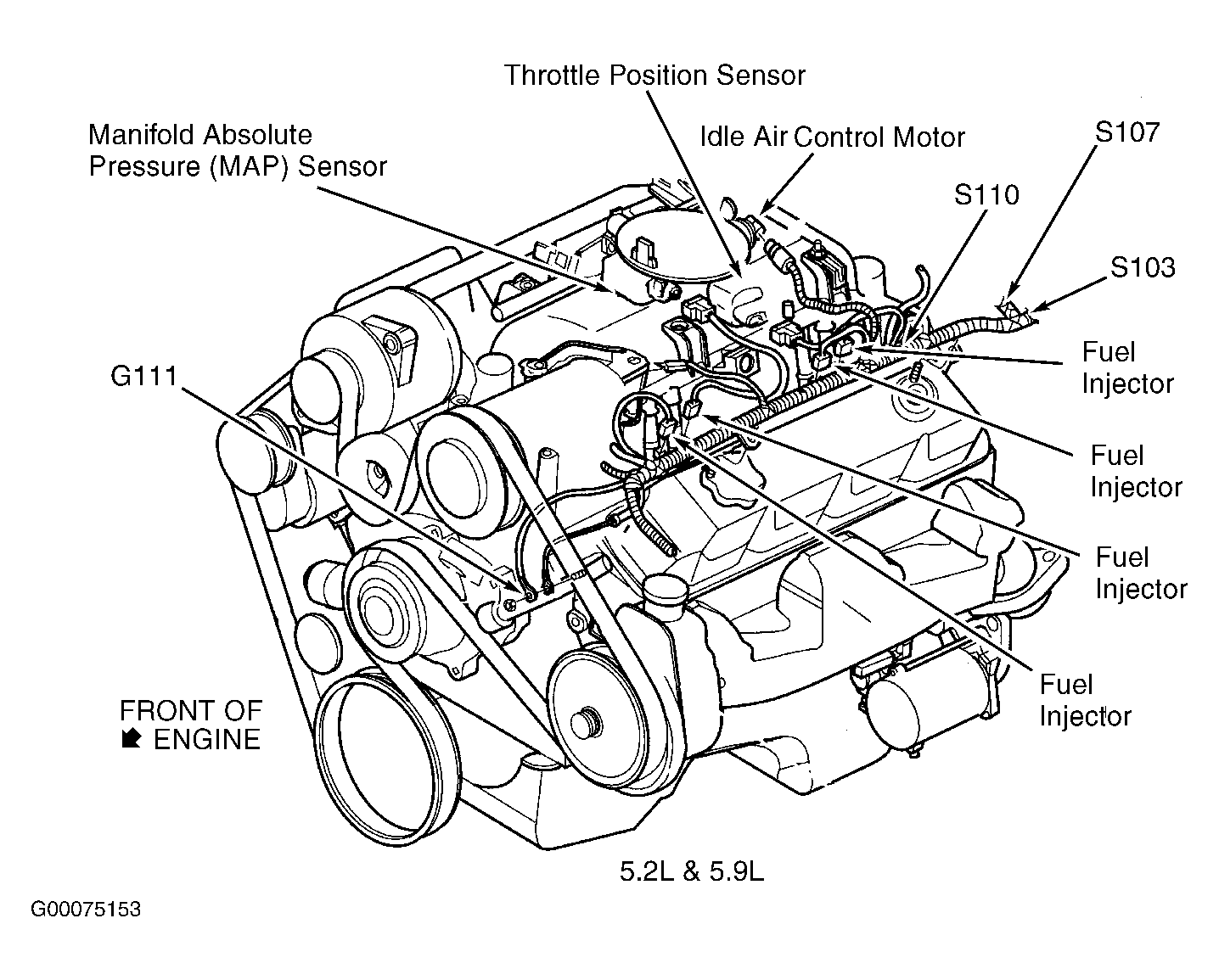

Fig 4: Top Of Engine (5.2L & 5.9L)

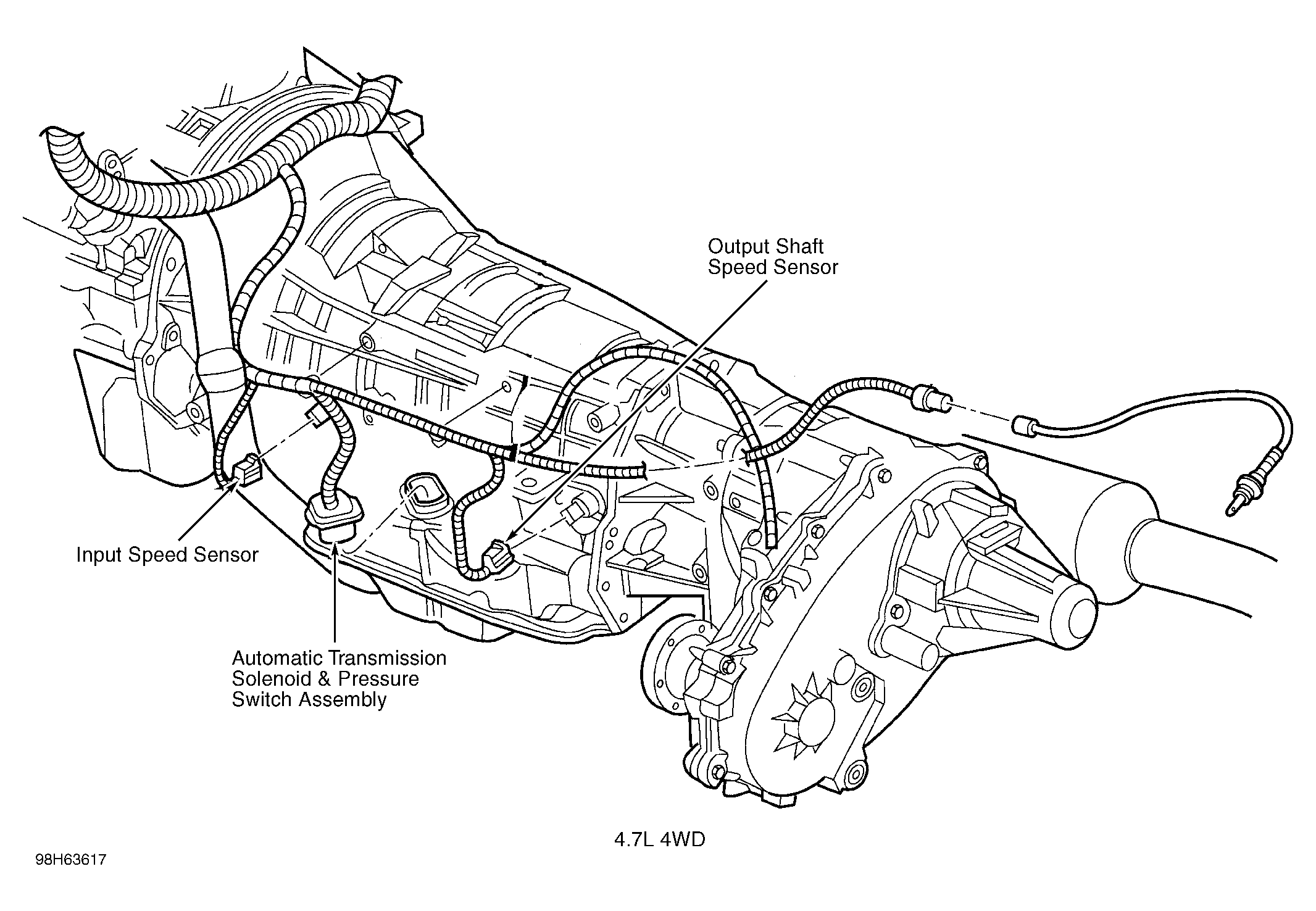

Fig 5: Left Side Of Transmission (4.7L 4WD)

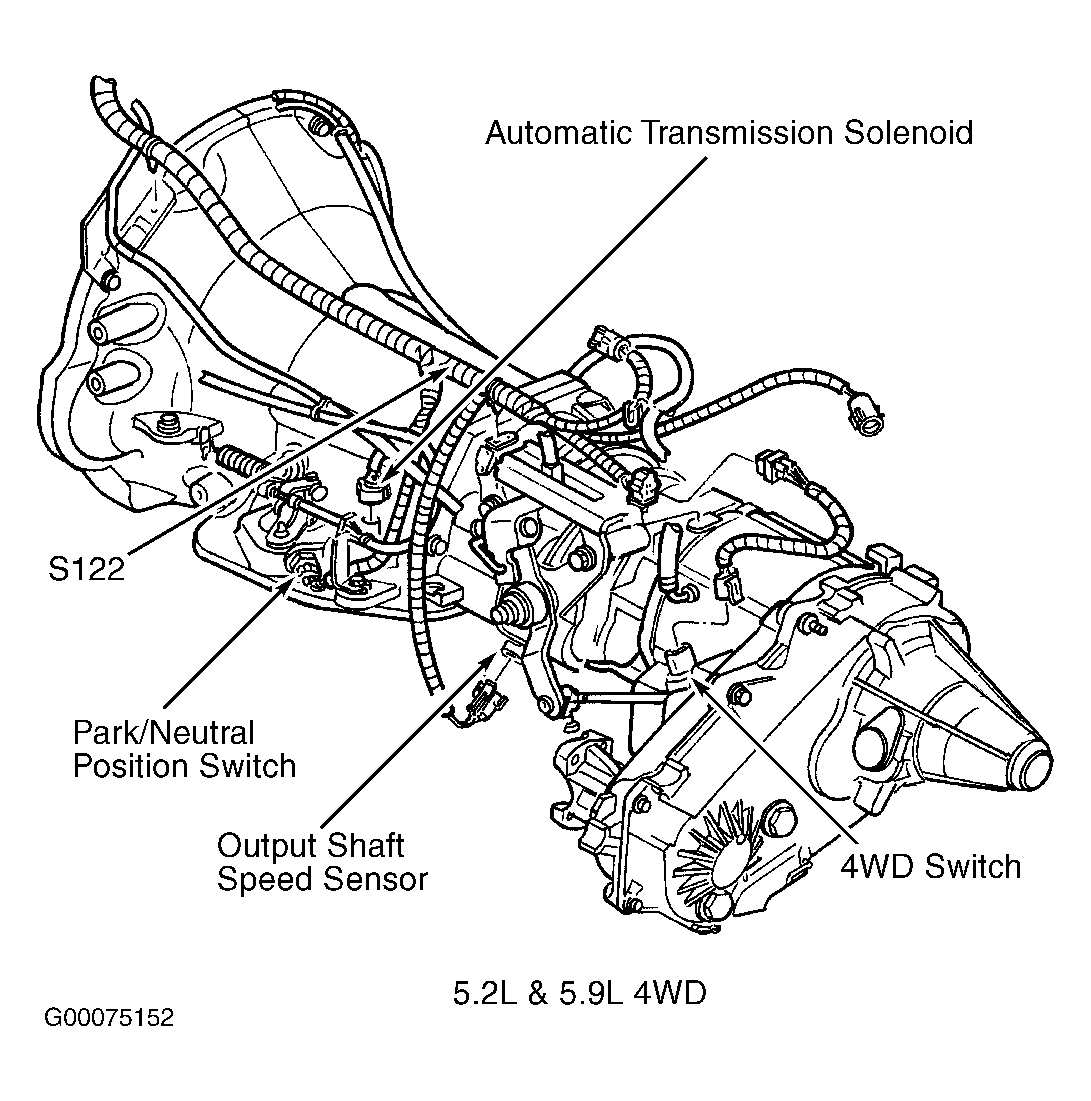

Fig 6: Left Side Of Transmission (5.2L & 5.9L 4WD)
