Test VER-6A: LDP Road Test

Fig 1: VER-6A: LDP Road Test (1 Of 2)
G00066585Courtesy of DAIMLERCHRYSLER CORPORATION

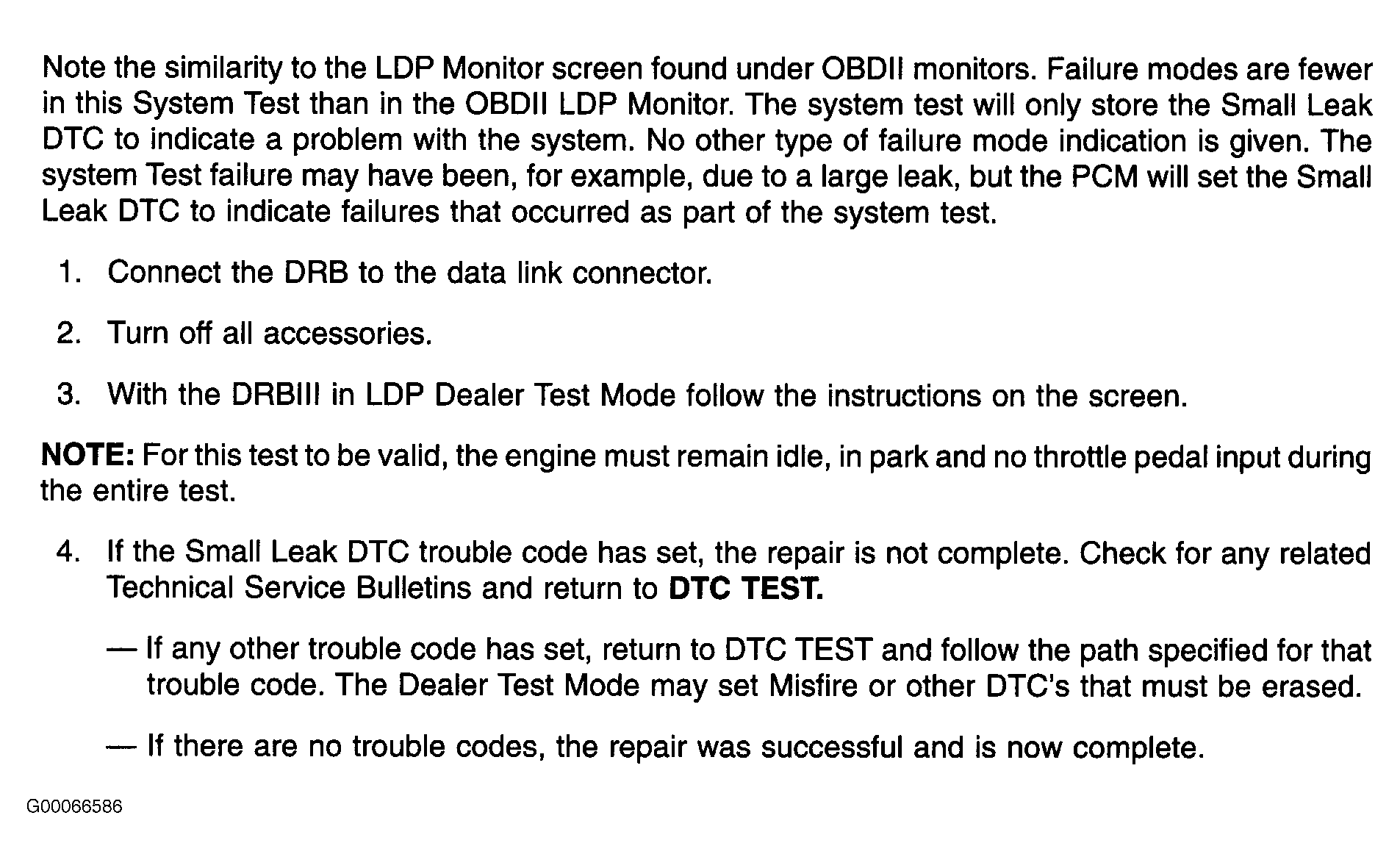

Fig 2: VER-6A: LDP Road Test (2 Of 2)
G00066586Courtesy of DAIMLERCHRYSLER CORPORATION
