DTC P0505-C: Idle Air Control Motor Circuits

NOTE: Perform Test P0505-A Before Proceeding

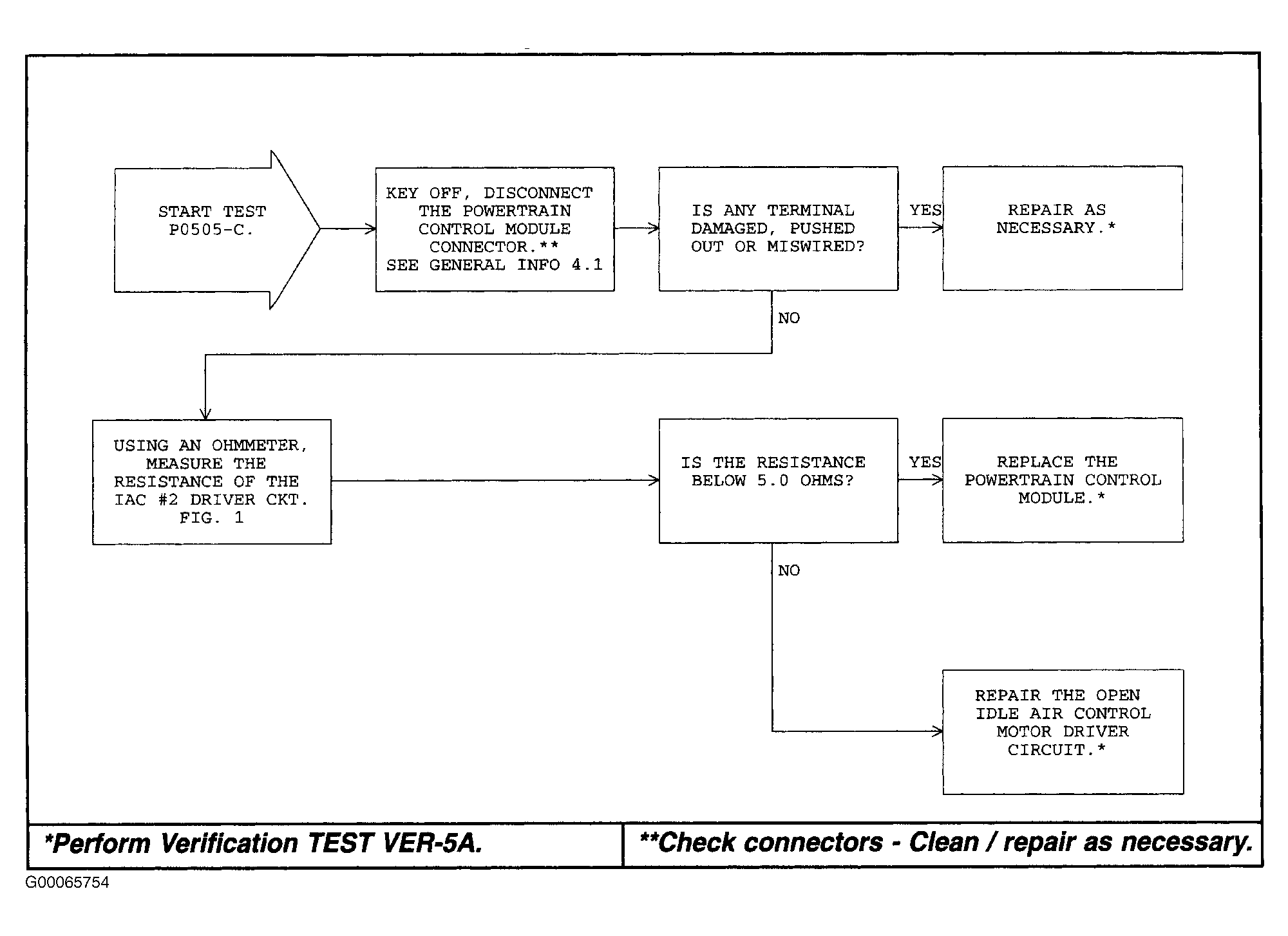

Fig 1: P0505-C: Idle Air Control Motor Circuits (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

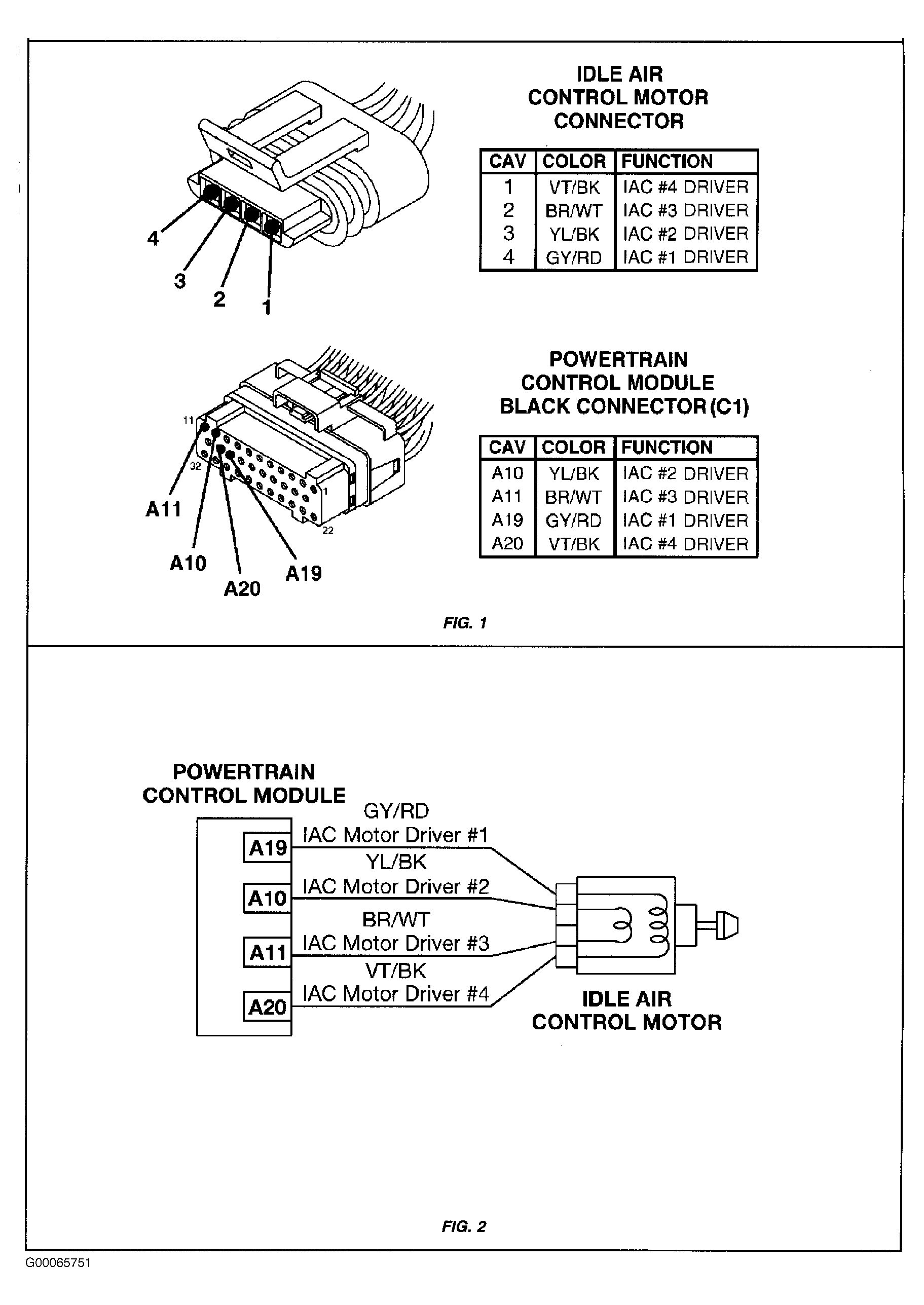

Fig 2: P0505-C: Idle Air Control Motor Circuits (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
