DTC P0202-A: Injector No. 2 Control Circuit

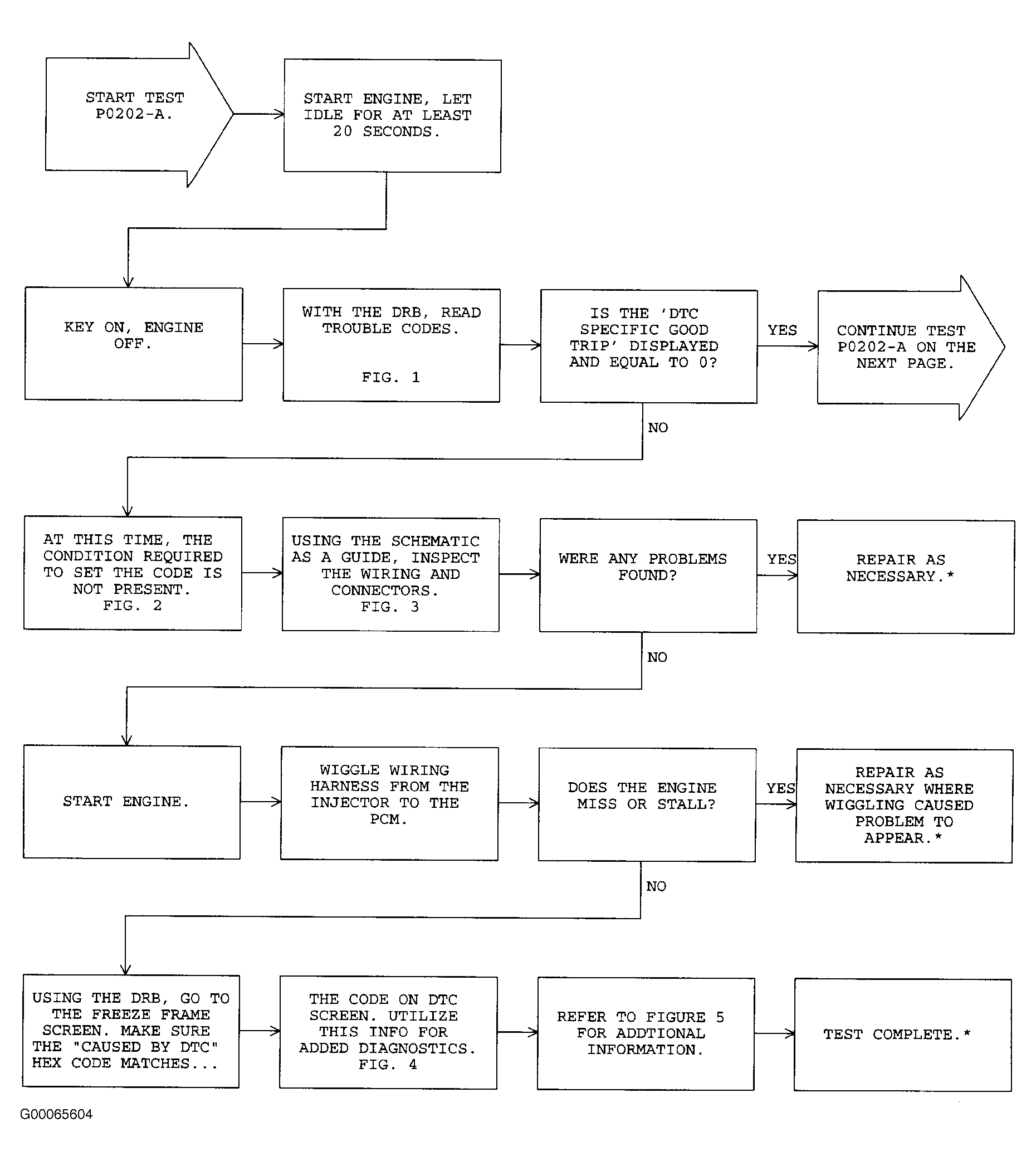

Fig 1: P0202-A: Injector No. 2 Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

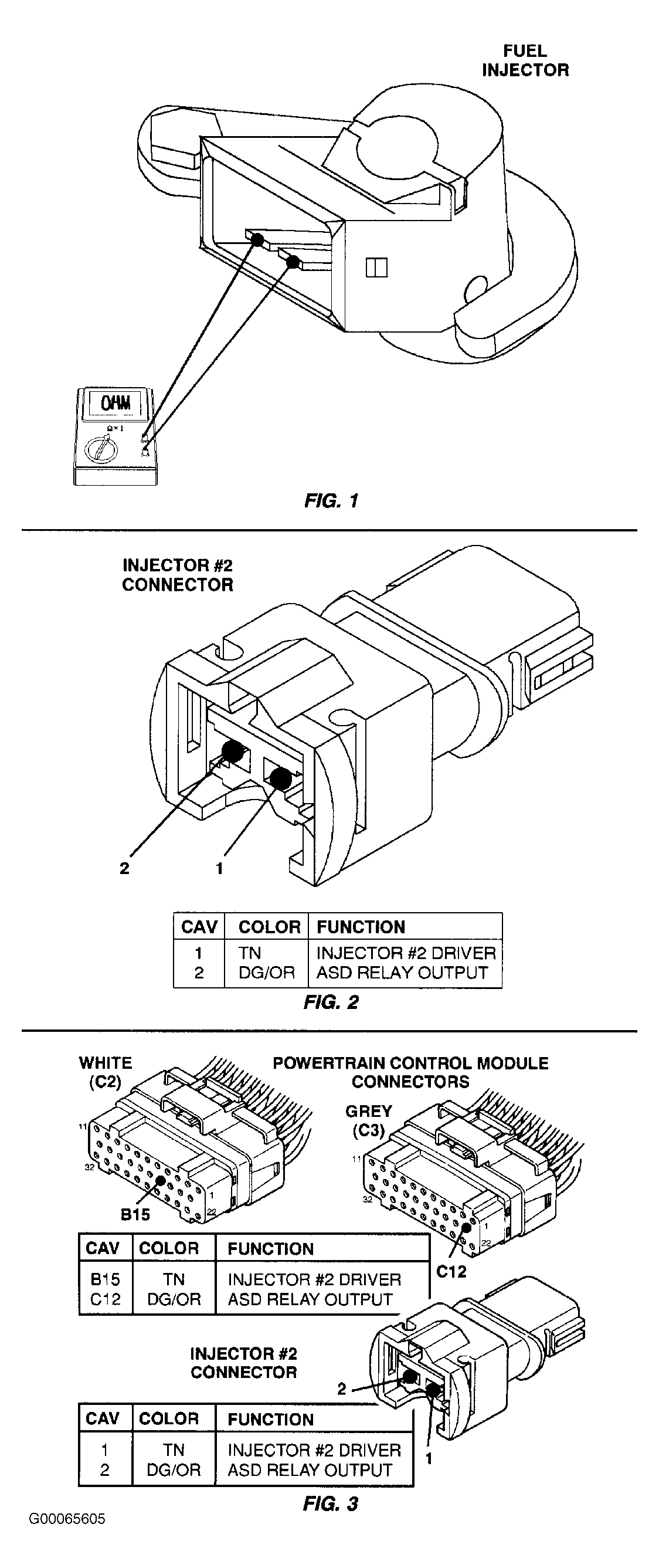

Fig 2: P0202-A: Injector No. 2 Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

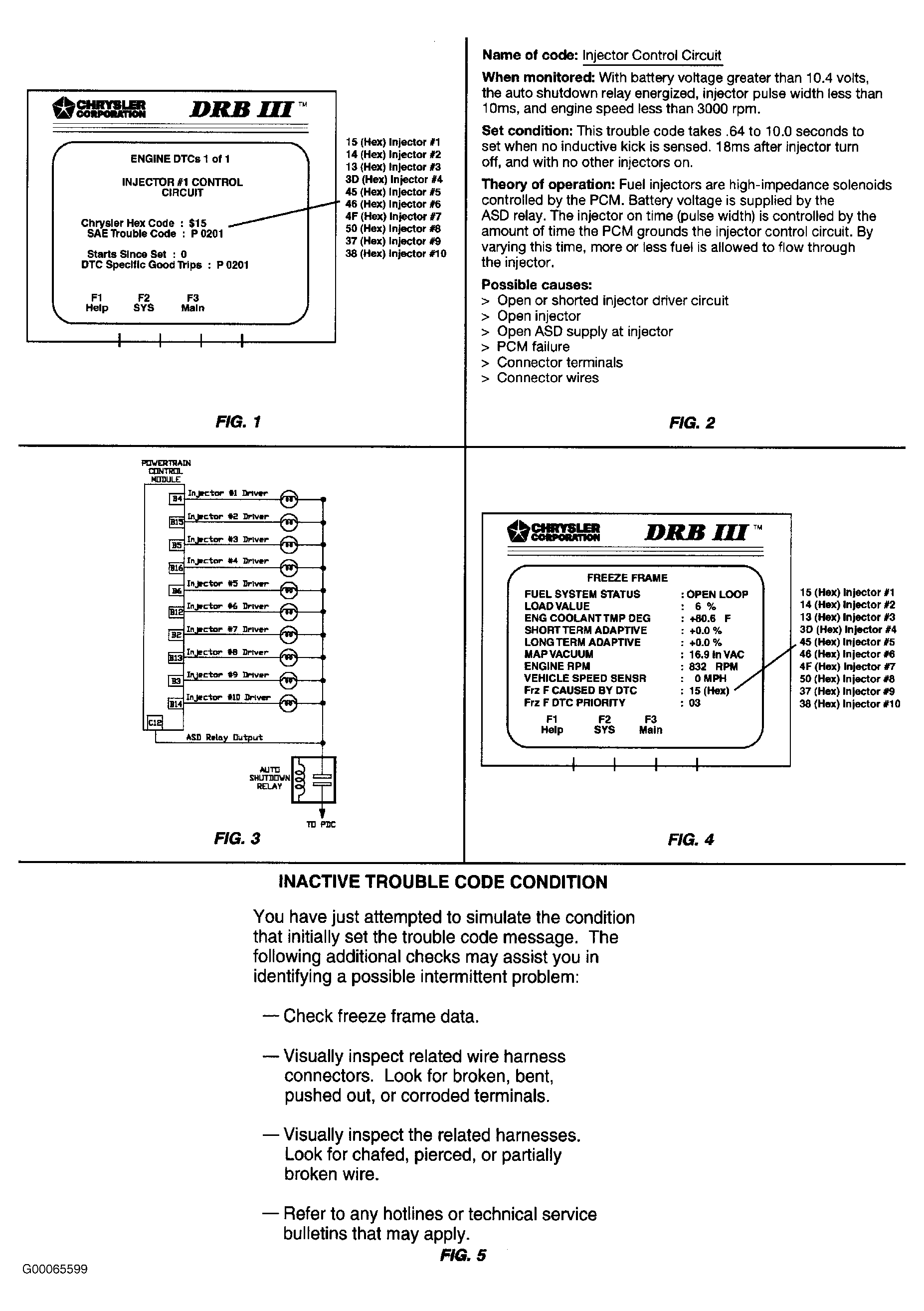

Fig 3: P0202-A: Injector No. 2 Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

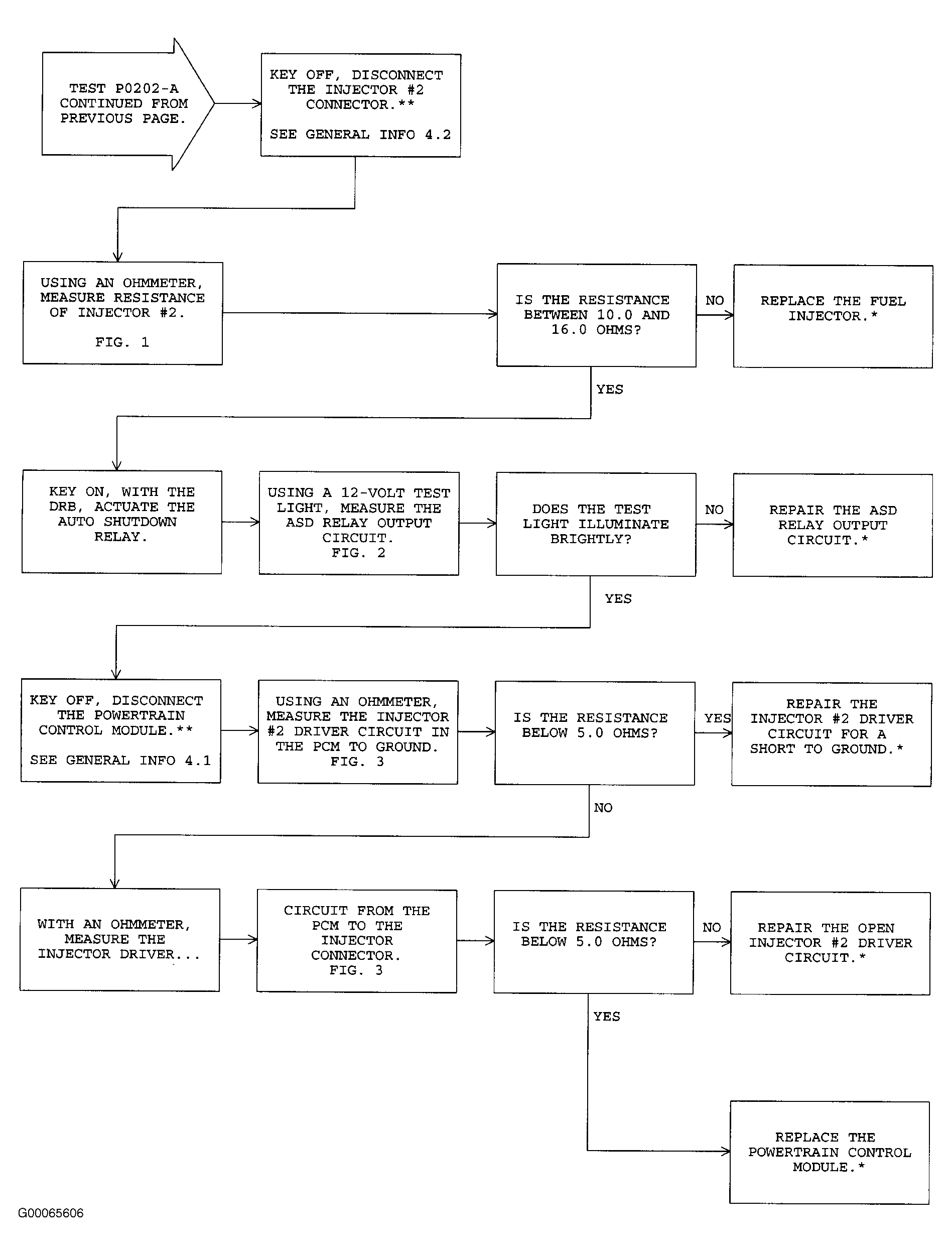

Fig 4: P0202-A: Injector No. 2 Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
