DTC P0175-B: Fuel System 2/1 Rich

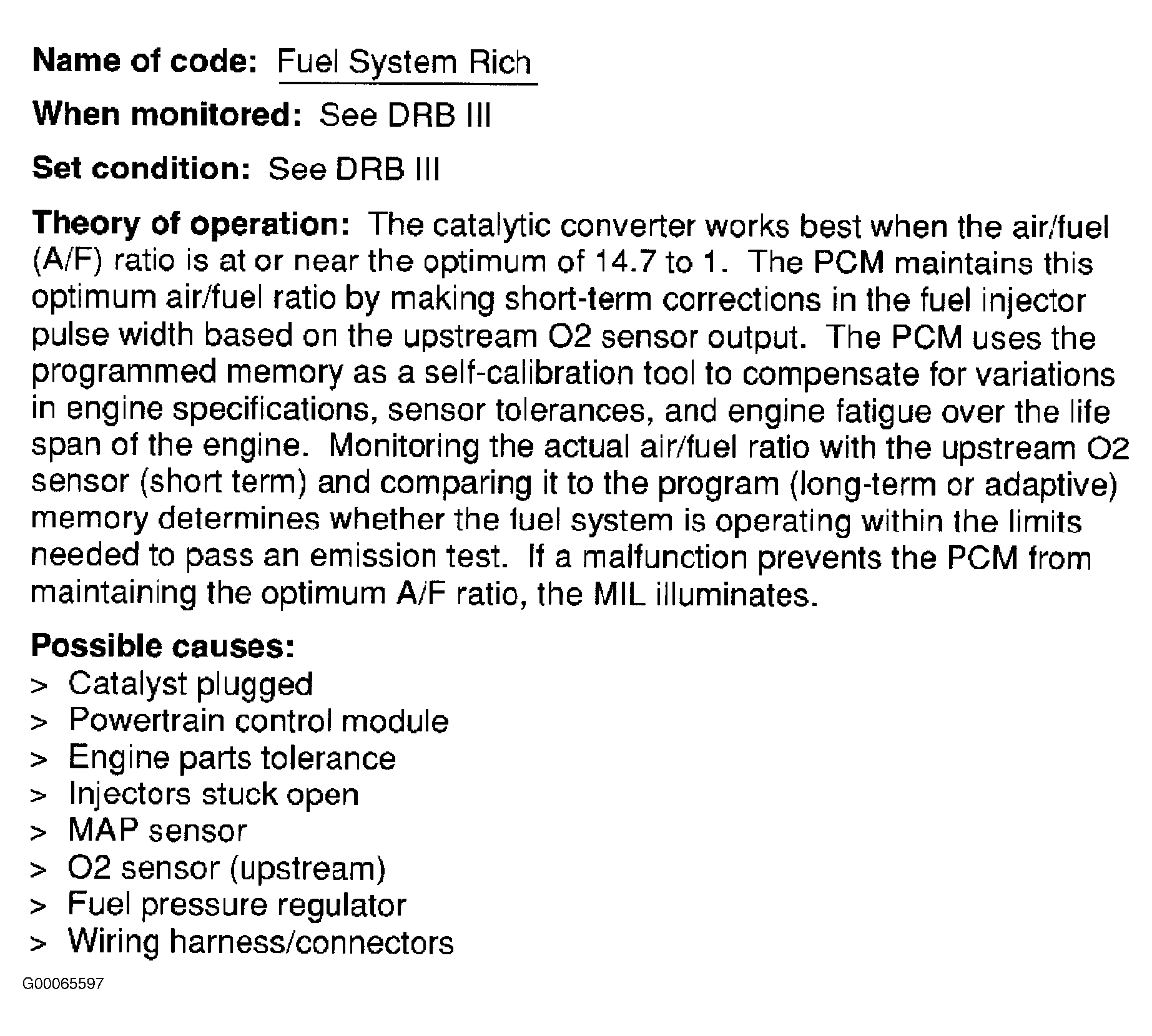

Fig 1: P0175-B: Fuel System 2/1 Rich (1 Of 2)
G00065597Courtesy of DAIMLERCHRYSLER CORPORATION

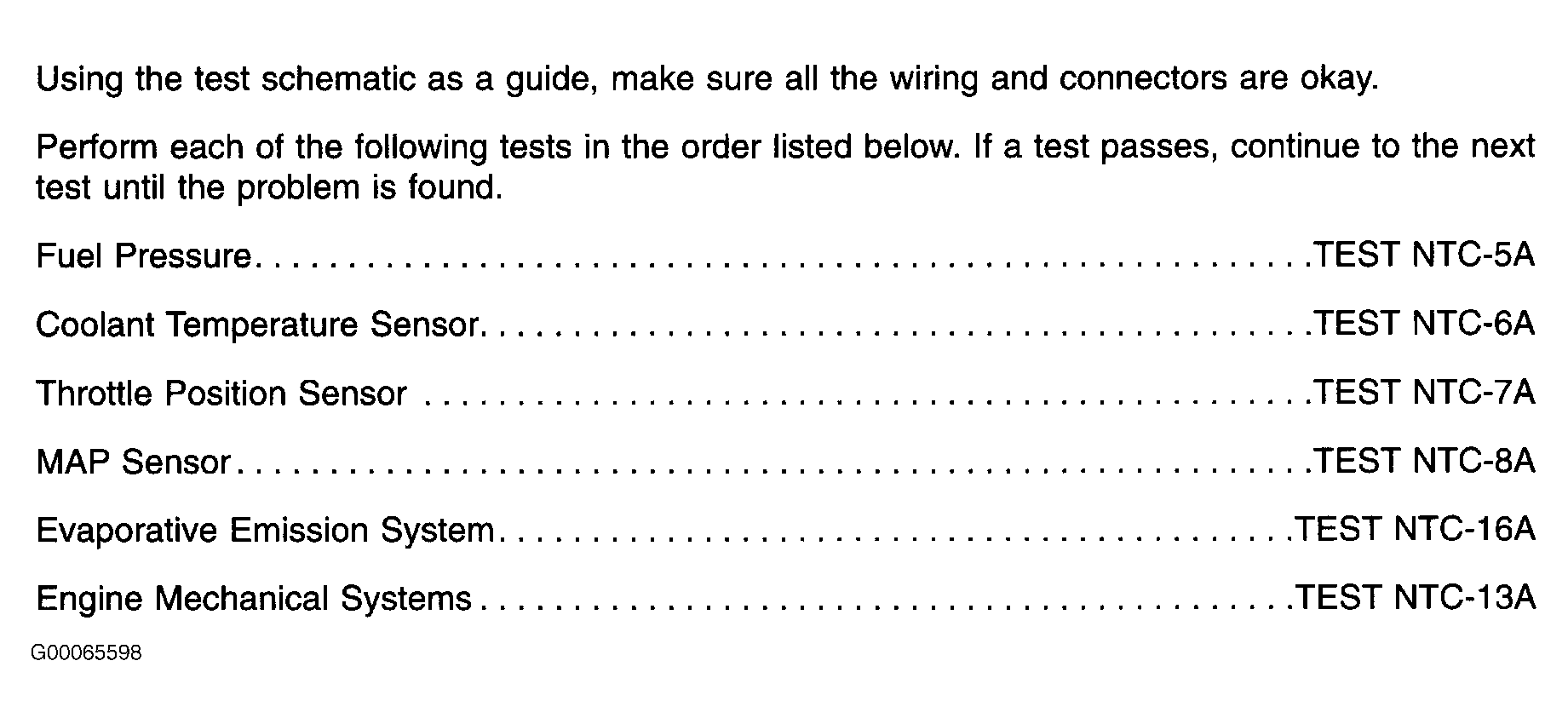

Fig 2: P0175-B: Fuel System 2/1 Rich (2 Of 2)
G00065598Courtesy of DAIMLERCHRYSLER CORPORATION
