DTC P0175-A: Fuel System 2/1 Rich

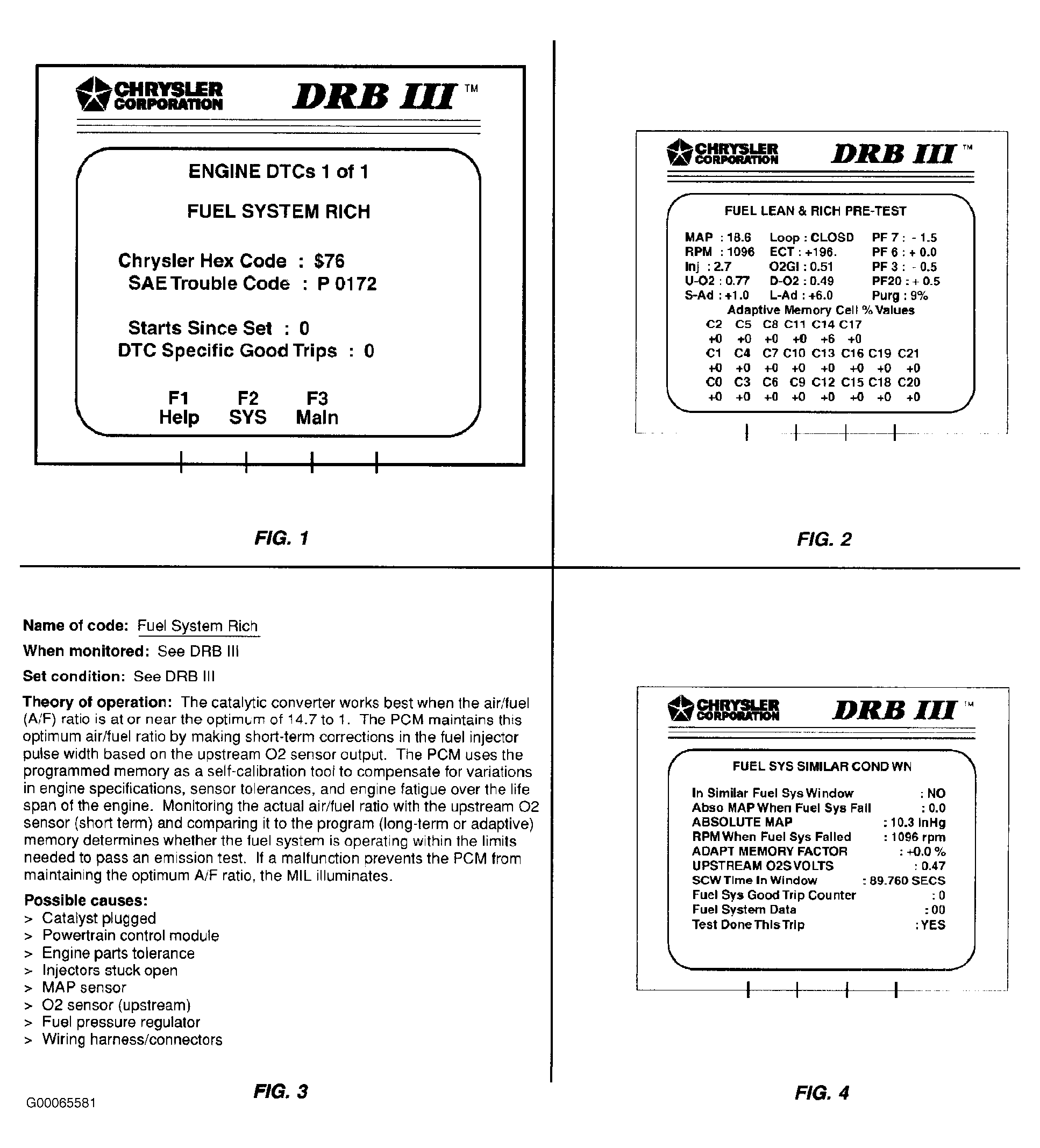

Fig 1: P0175-A: Fuel System 2/1 Rich (1 Of 4)
G00065581Courtesy of DAIMLERCHRYSLER CORPORATION

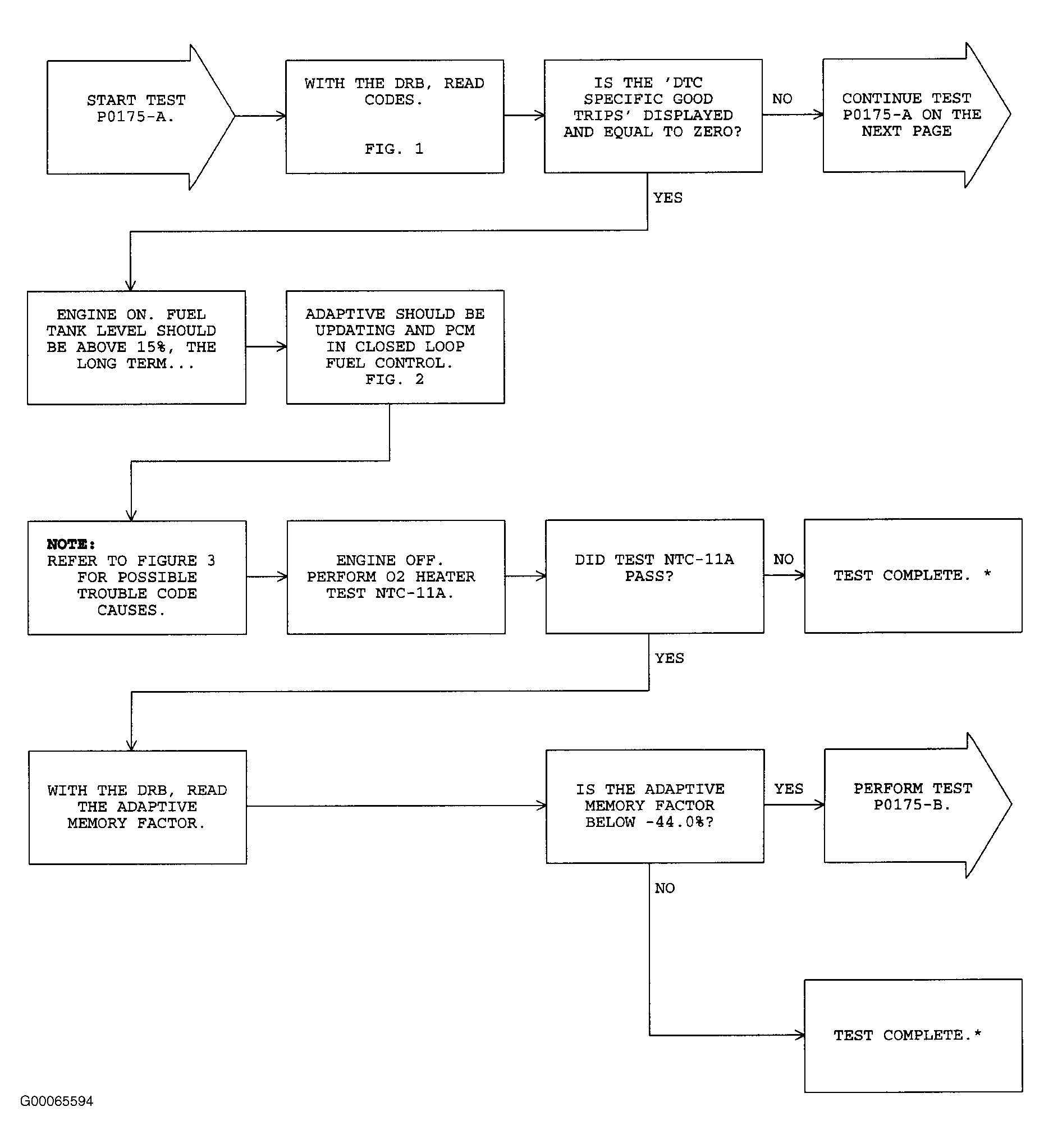

Fig 2: P0175-A: Fuel System 2/1 Rich (2 Of 4)
G00065594Courtesy of DAIMLERCHRYSLER CORPORATION

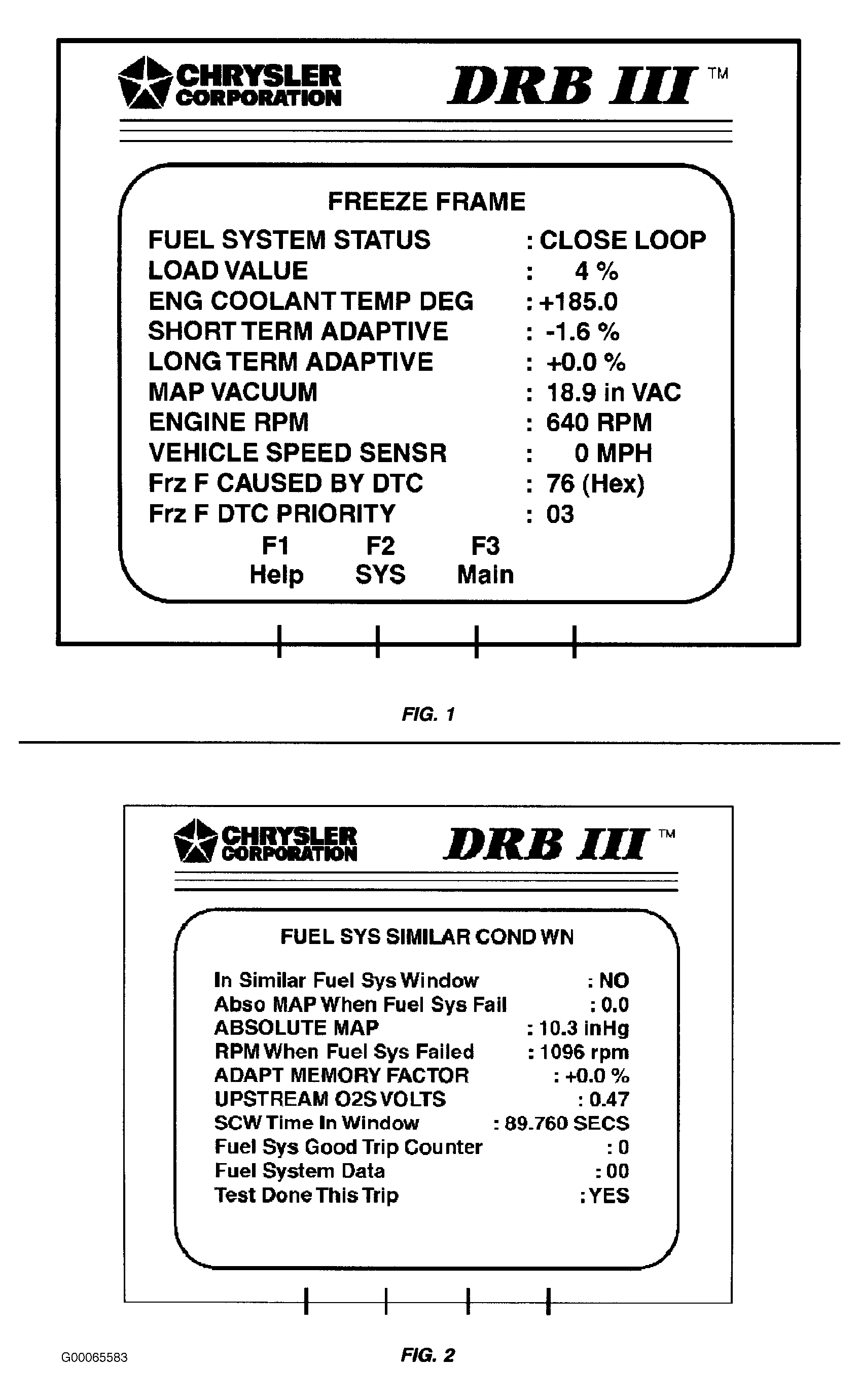

Fig 3: P0175-A: Fuel System 2/1 Rich (3 Of 4)
G00065583Courtesy of DAIMLERCHRYSLER CORPORATION

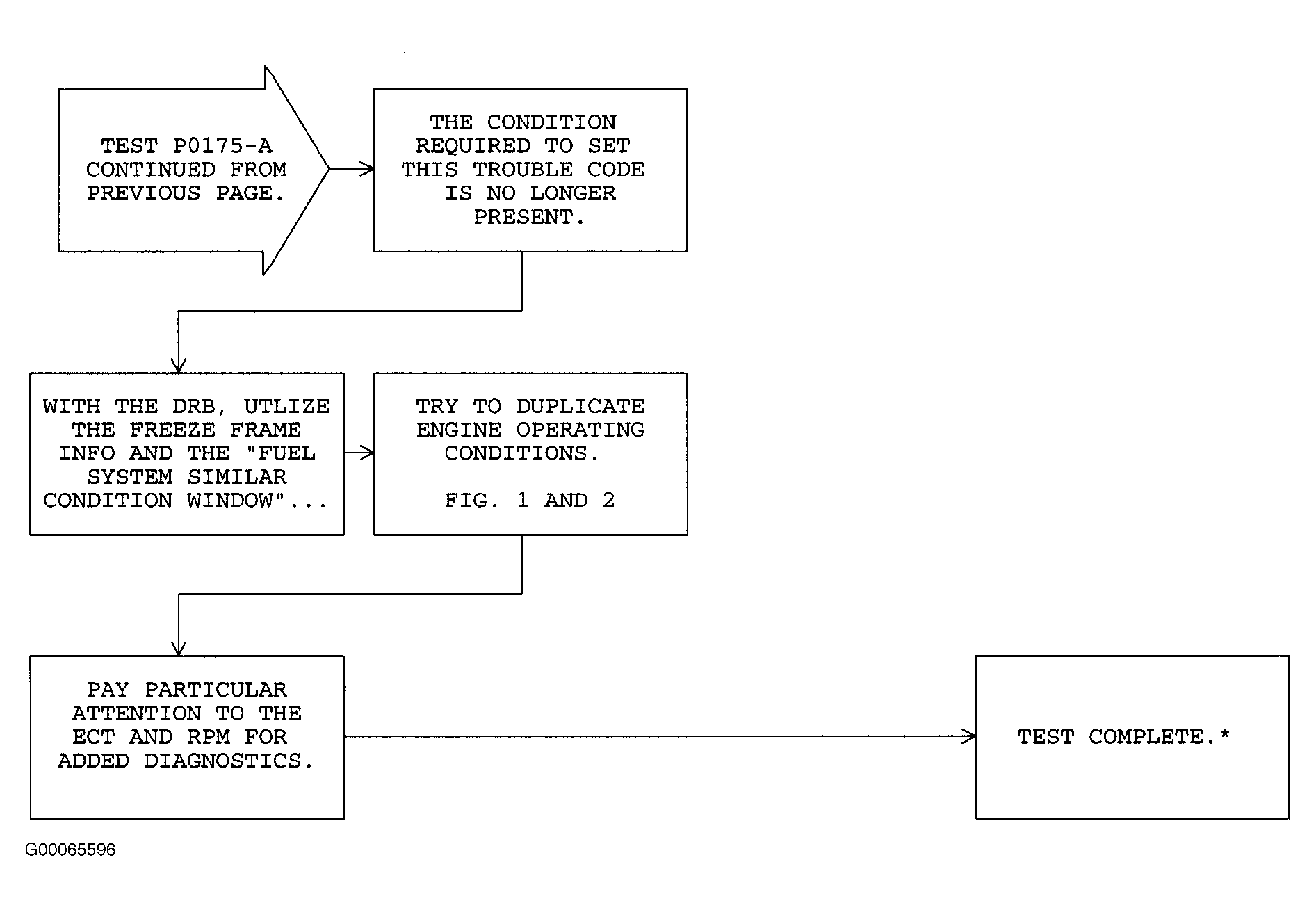

Fig 4: P0175-A: Fuel System 2/1 Rich (4 Of 4)
G00065596Courtesy of DAIMLERCHRYSLER CORPORATION
