DTC P0174-B: Fuel System 2/1 Lean

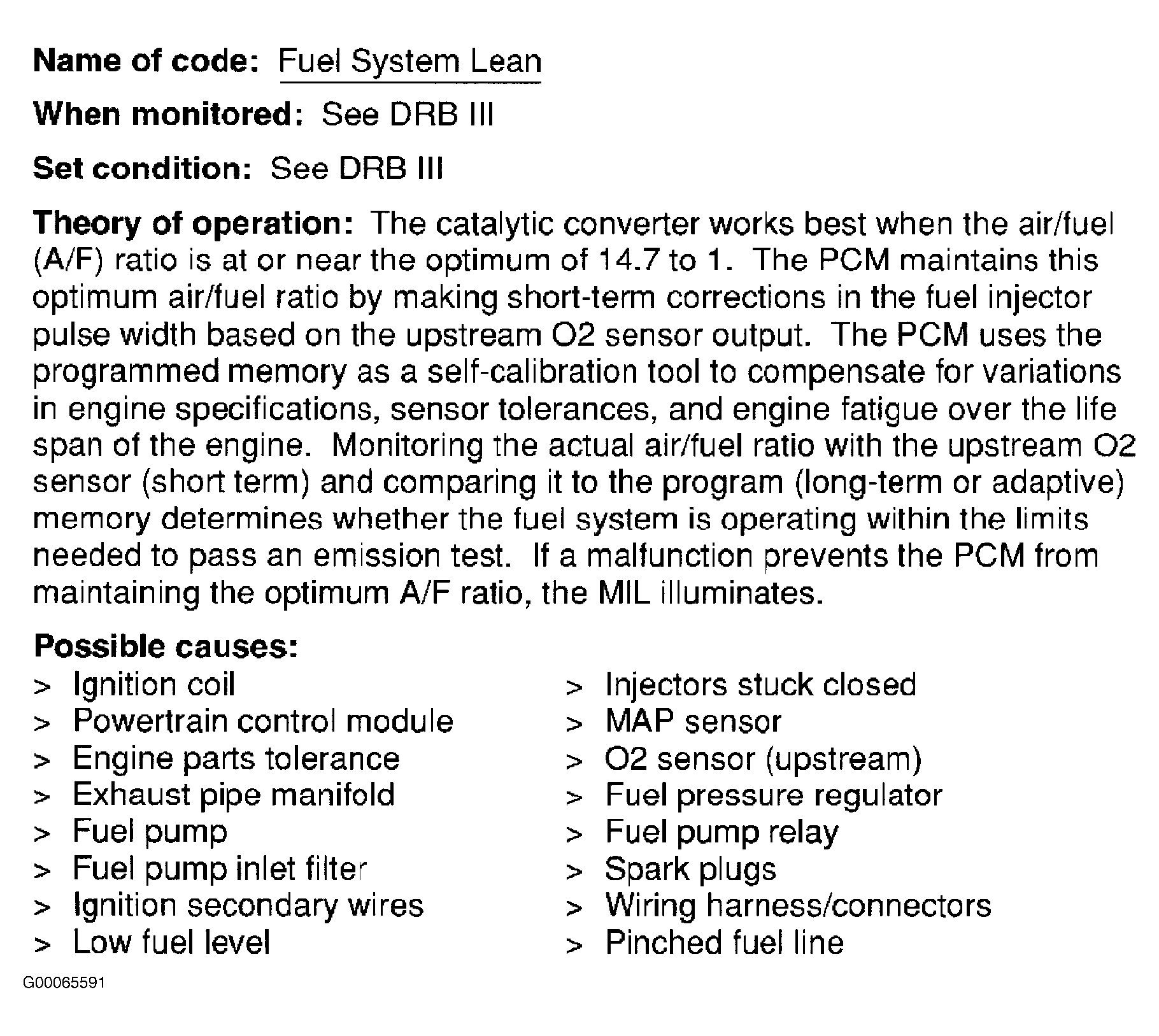

Fig 1: P0174-B: Fuel System 2/1 Lean (1 Of 2)
G00065591Courtesy of DAIMLERCHRYSLER CORPORATION

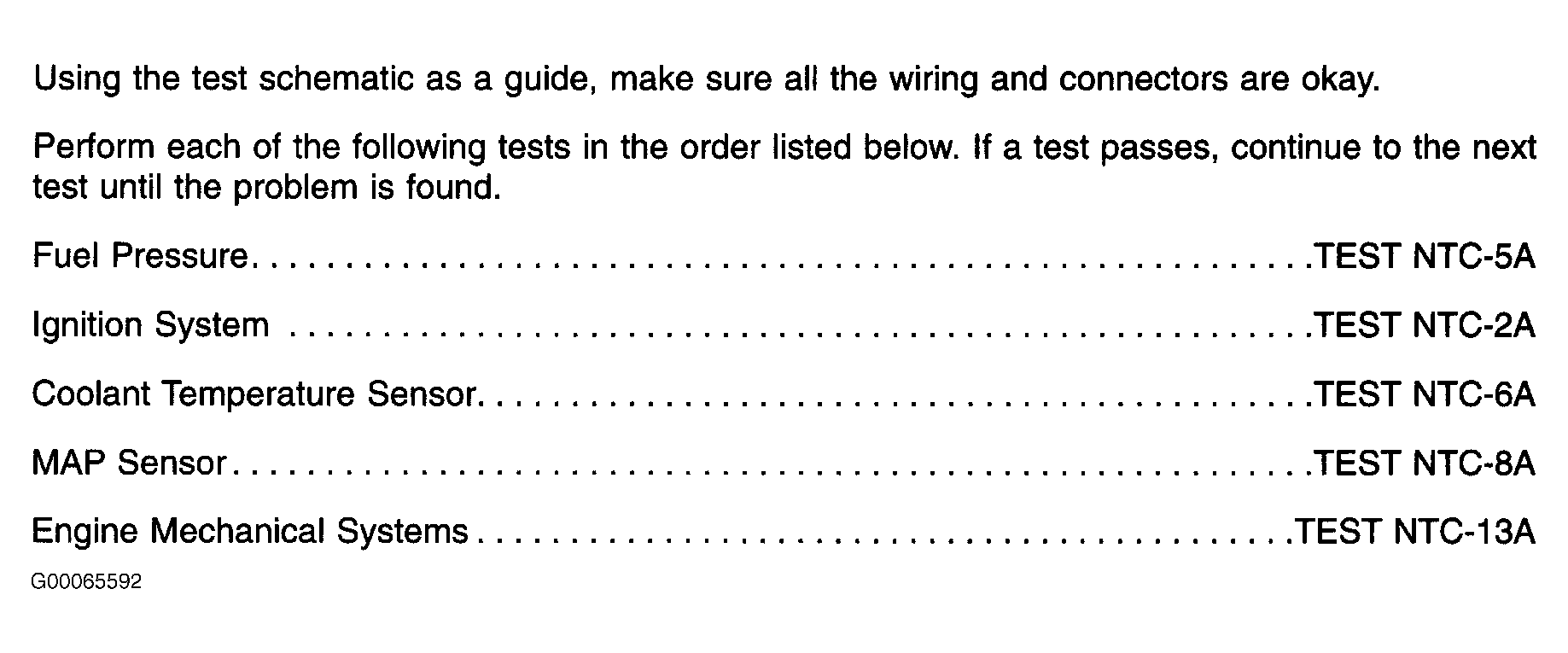

Fig 2: P0174-B: Fuel System 2/1 Lean (2 Of 2)
G00065592Courtesy of DAIMLERCHRYSLER CORPORATION
