DTC P0171-A: Fuel System 1/1 Lean

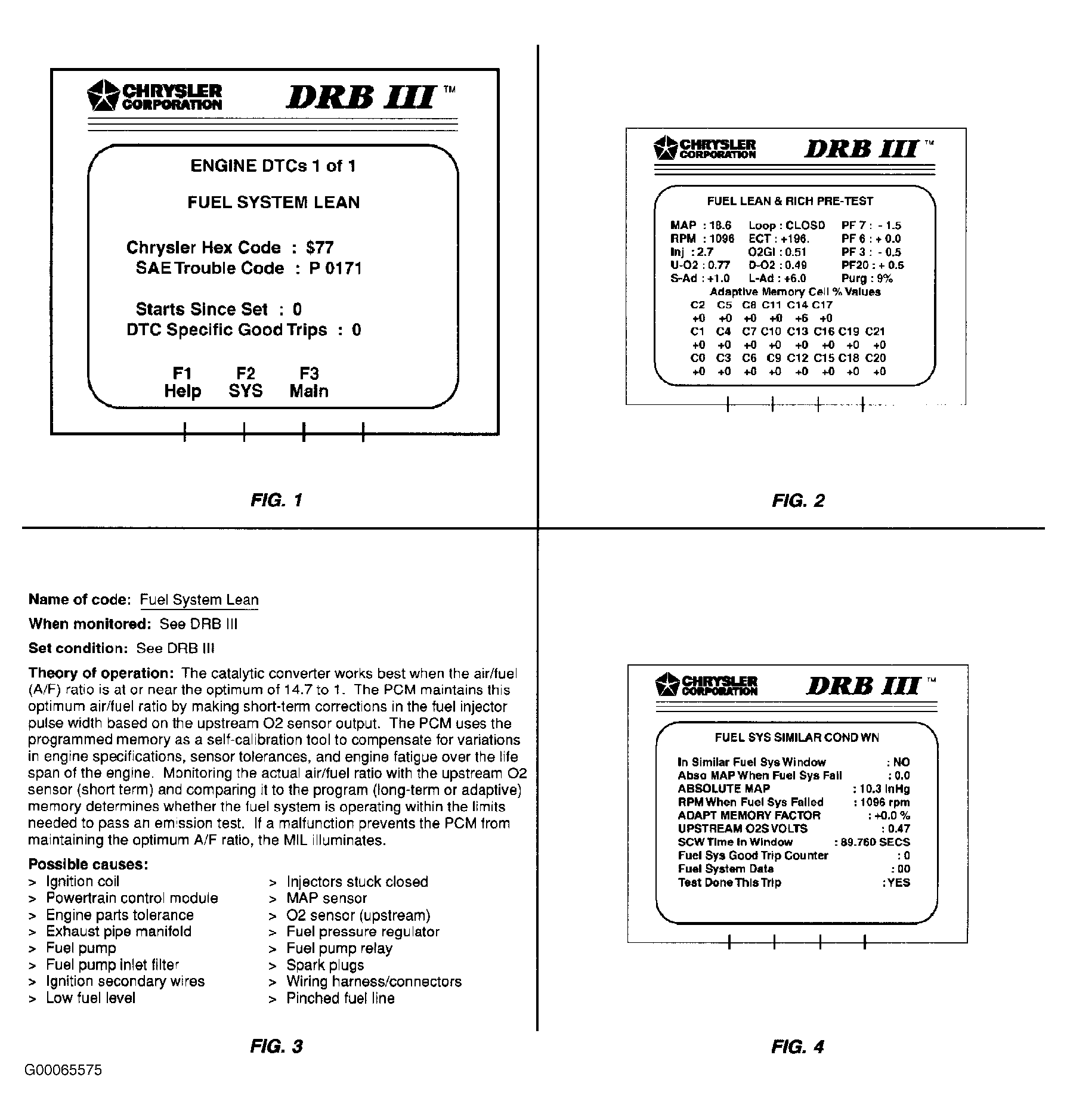

Fig 1: P0171-A: Fuel System 1/1 Lean (1 Of 4)
G00065575Courtesy of DAIMLERCHRYSLER CORPORATION

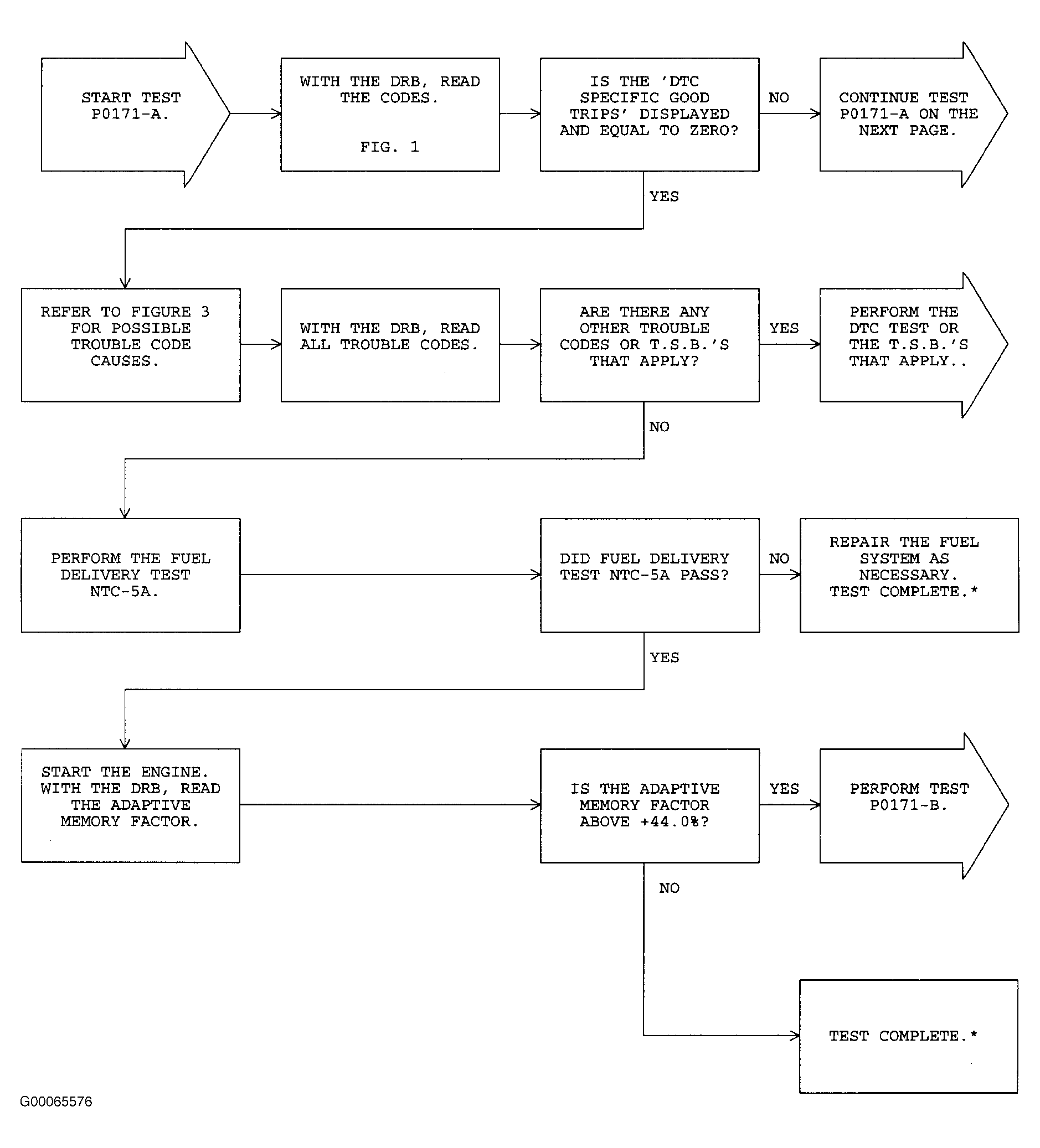

Fig 2: P0171-A: Fuel System 1/1 Lean (2 Of 4)
G00065576Courtesy of DAIMLERCHRYSLER CORPORATION

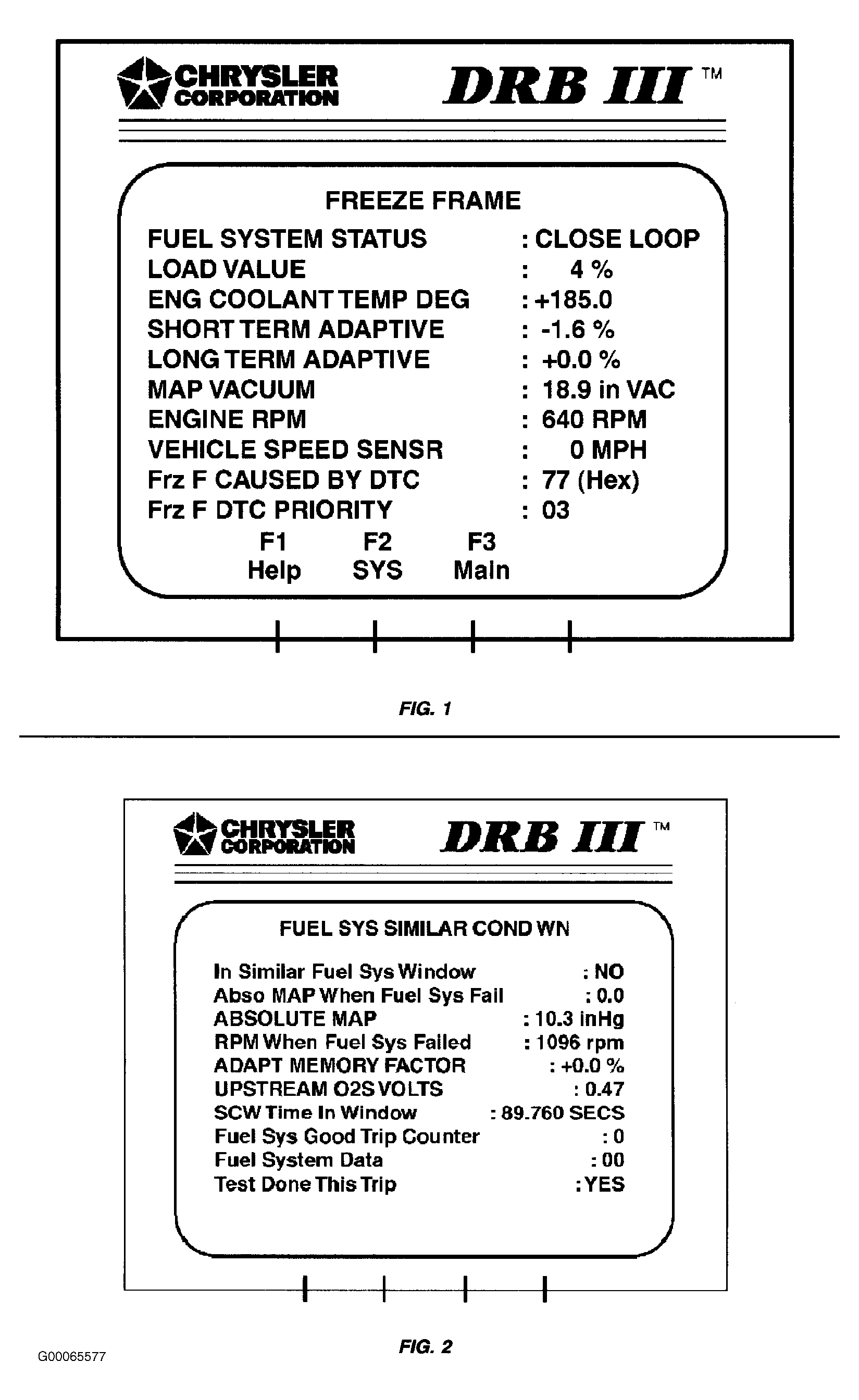

Fig 3: P0171-A: Fuel System 1/1 Lean (3 Of 4)
G00065577Courtesy of DAIMLERCHRYSLER CORPORATION

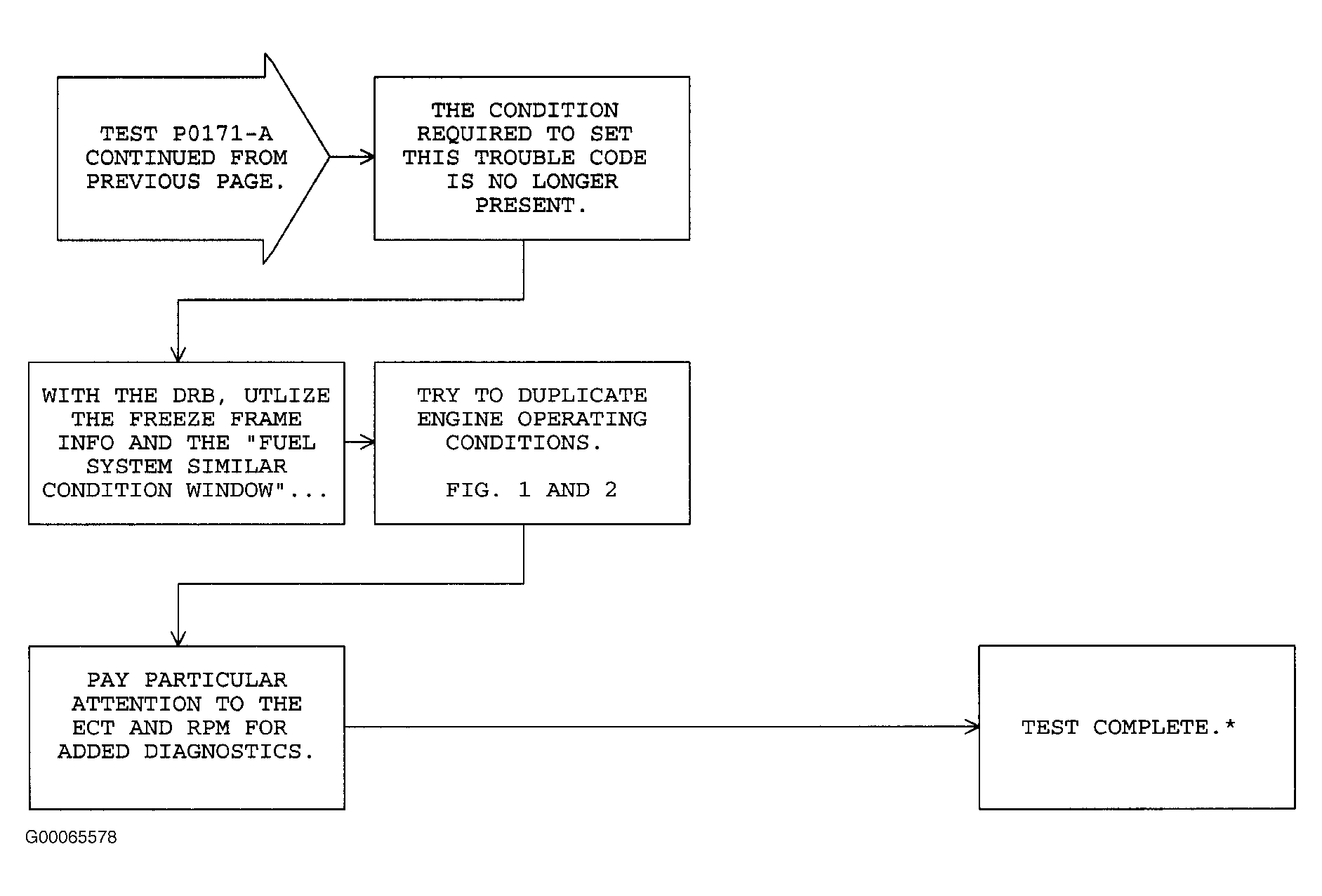

Fig 4: P0171-A: Fuel System 1/1 Lean (4 Of 4)
G00065578Courtesy of DAIMLERCHRYSLER CORPORATION
