Test NTC-5A: Checking Fuel Delivery

NOTE: Perform Test NTC-1A Before Proceeding

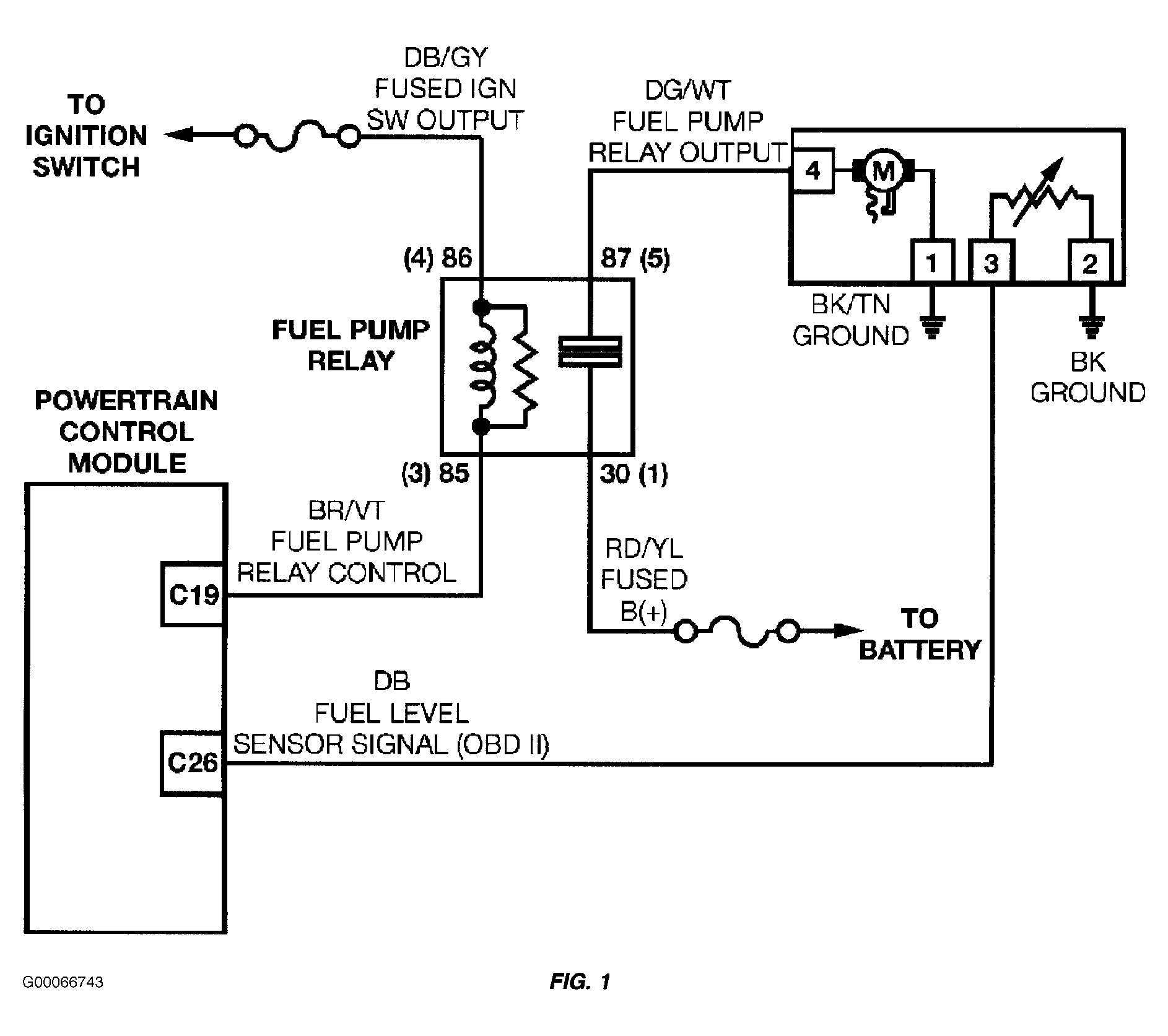

Fig 1: NTC-5A: Checking Fuel Delivery (1 Of 2)
G00066743Courtesy of DAIMLERCHRYSLER CORPORATION

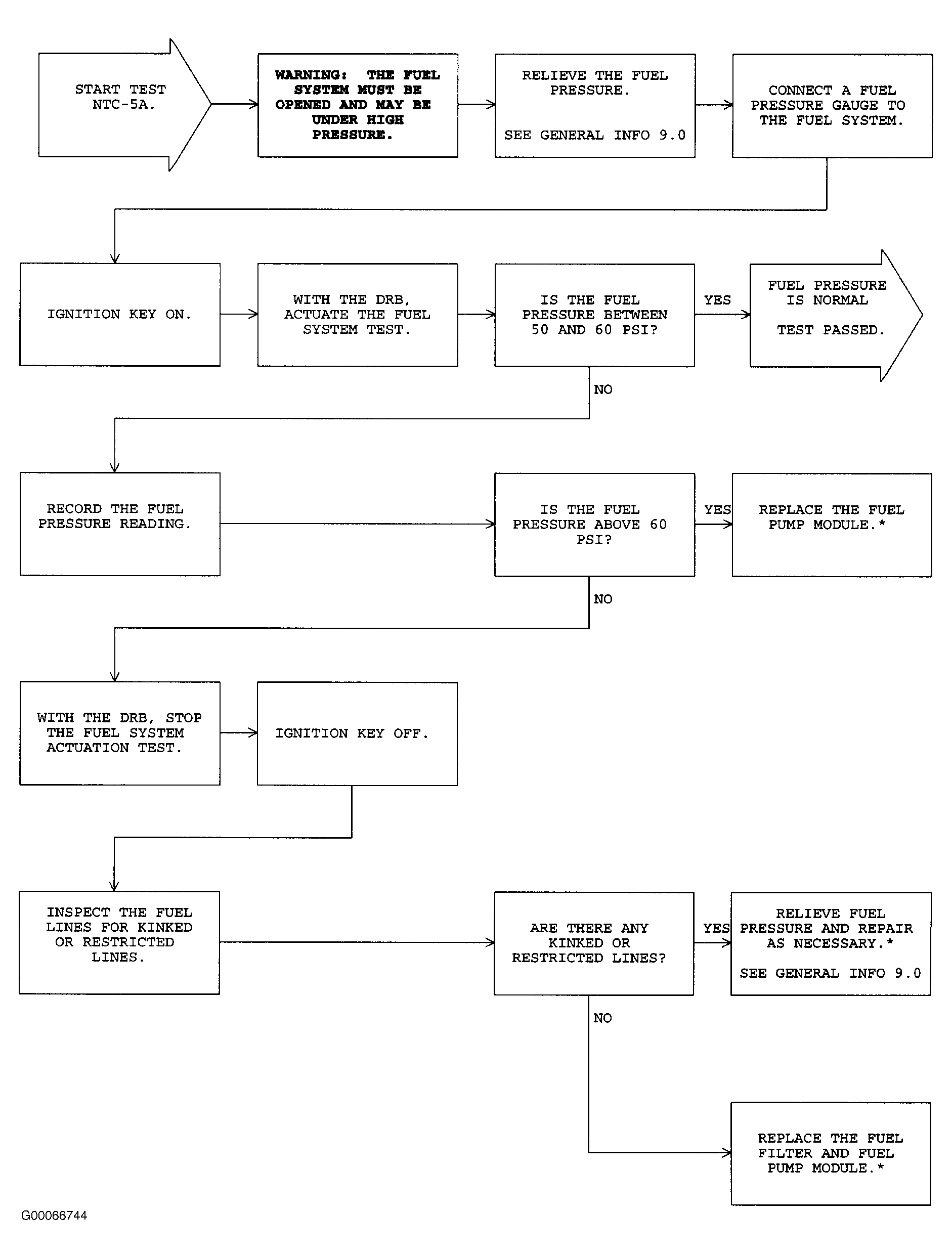

Fig 2: NTC-5A: Checking Fuel Delivery (2 Of 2)
G00066744Courtesy of DAIMLERCHRYSLER CORPORATION
