Test NTC-13A: Checking Engine Mechanical Systems

NOTE: Perform Test NTC-1A Or NTC-12A Before Proceeding

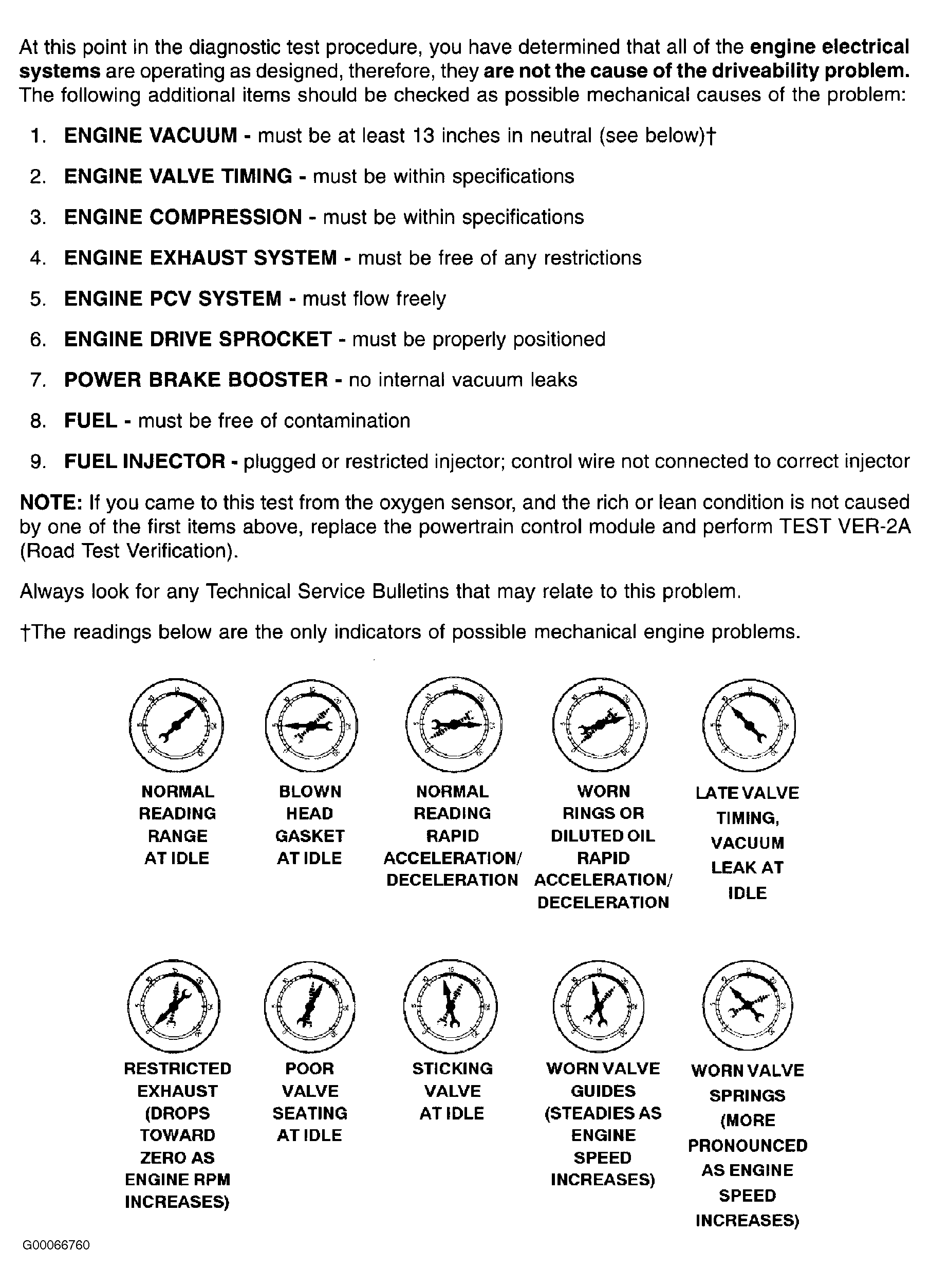

Fig 1: NTC-13A: Checking Engine Mechanical Systems

G00066760

Courtesy of DAIMLERCHRYSLER CORPORATION
