DTC P1282-A: Fuel Pump Relay Control Circuit

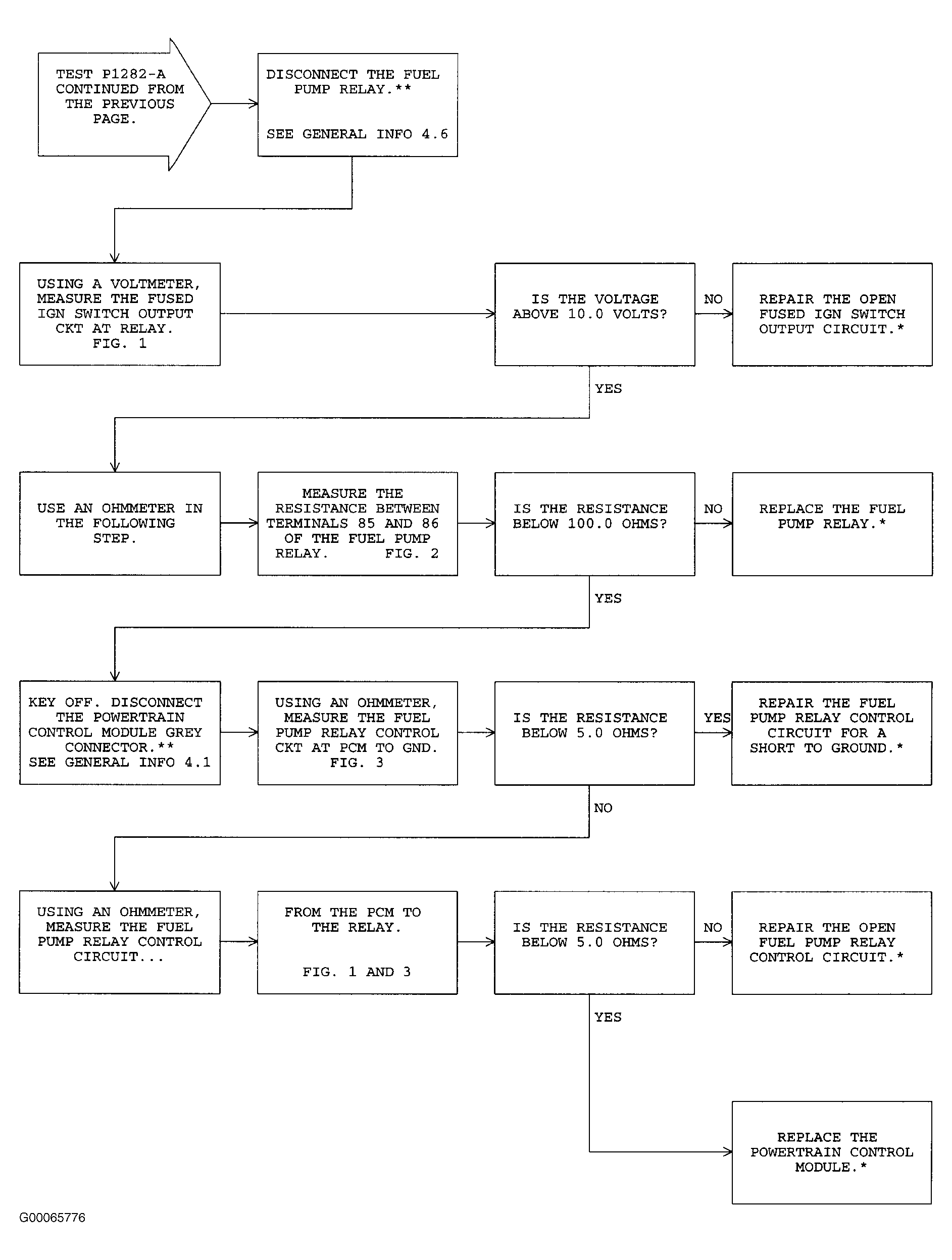

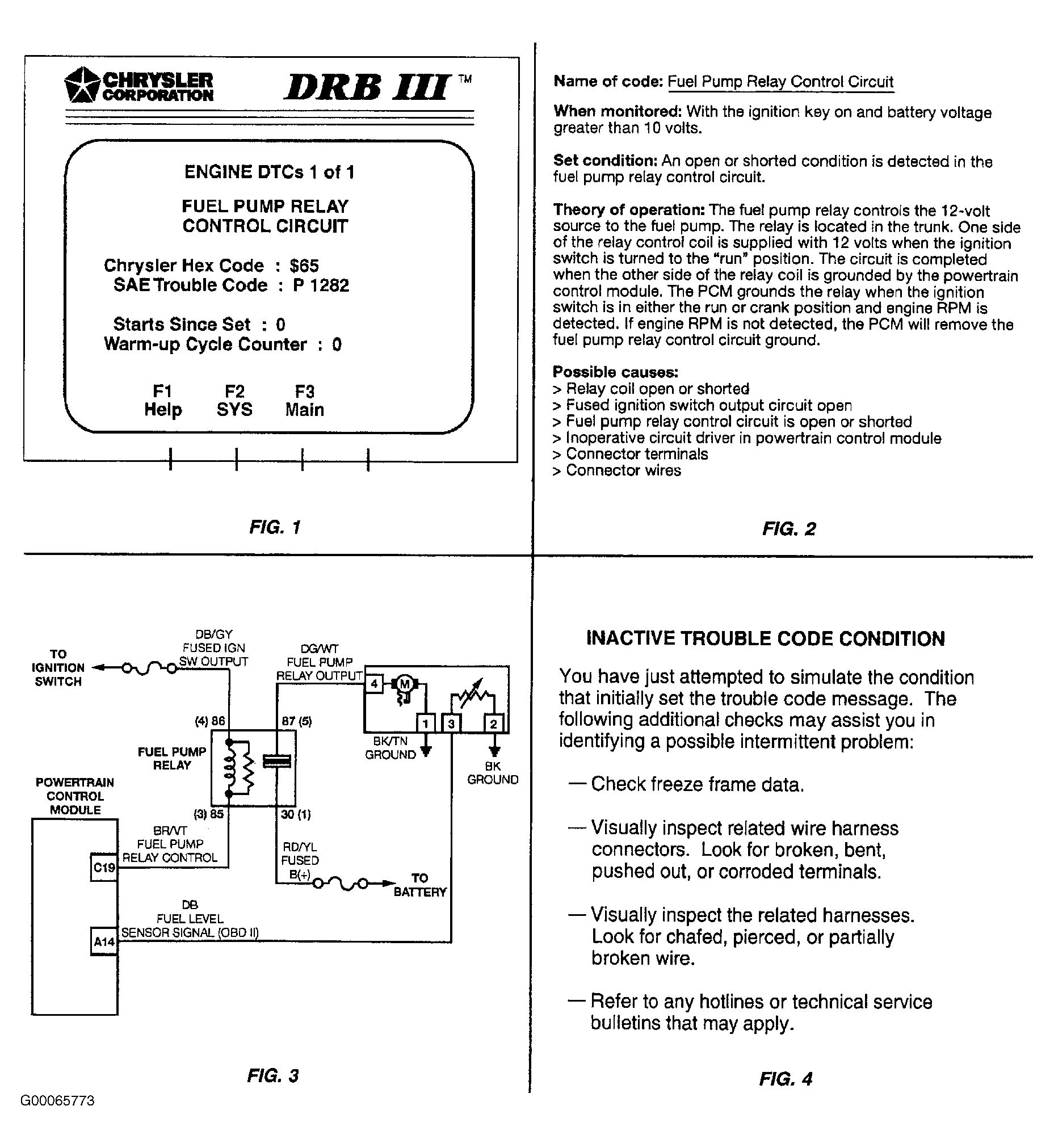

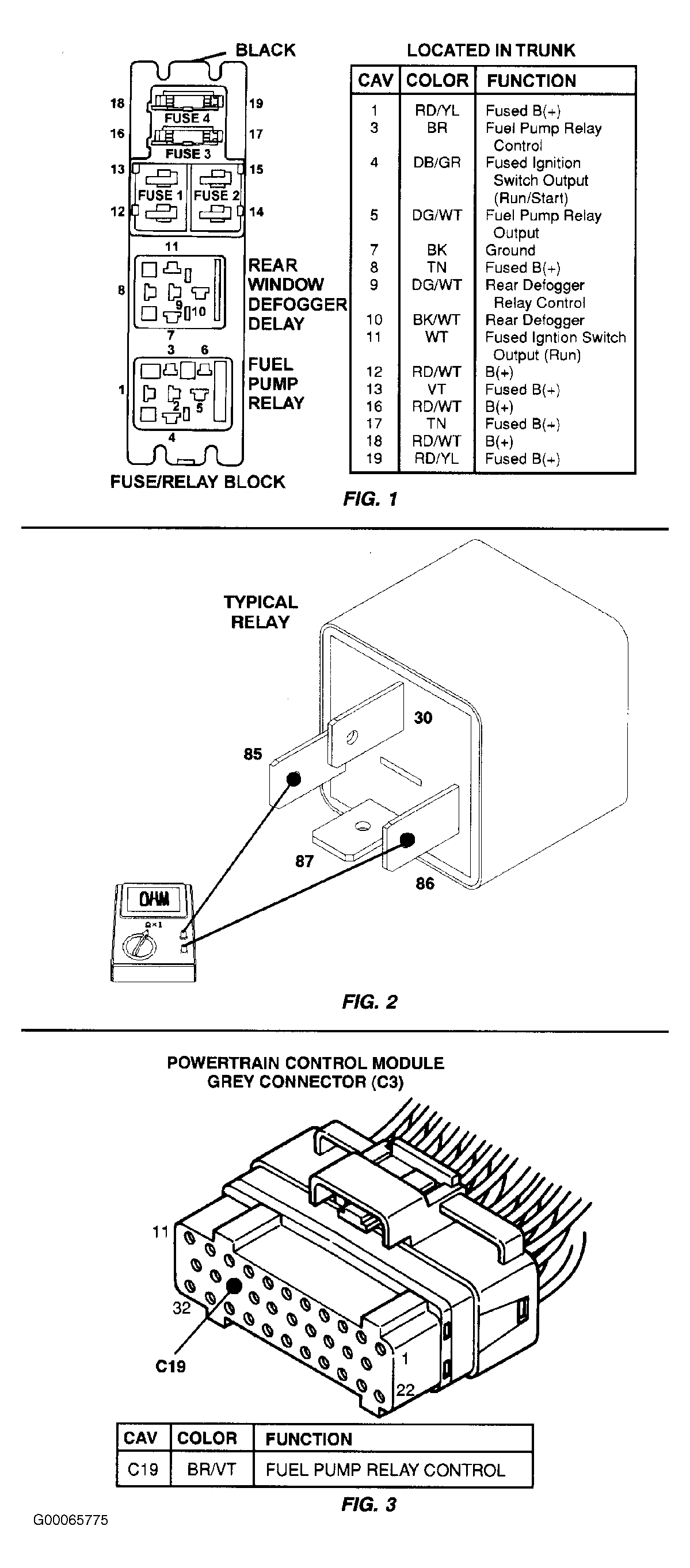

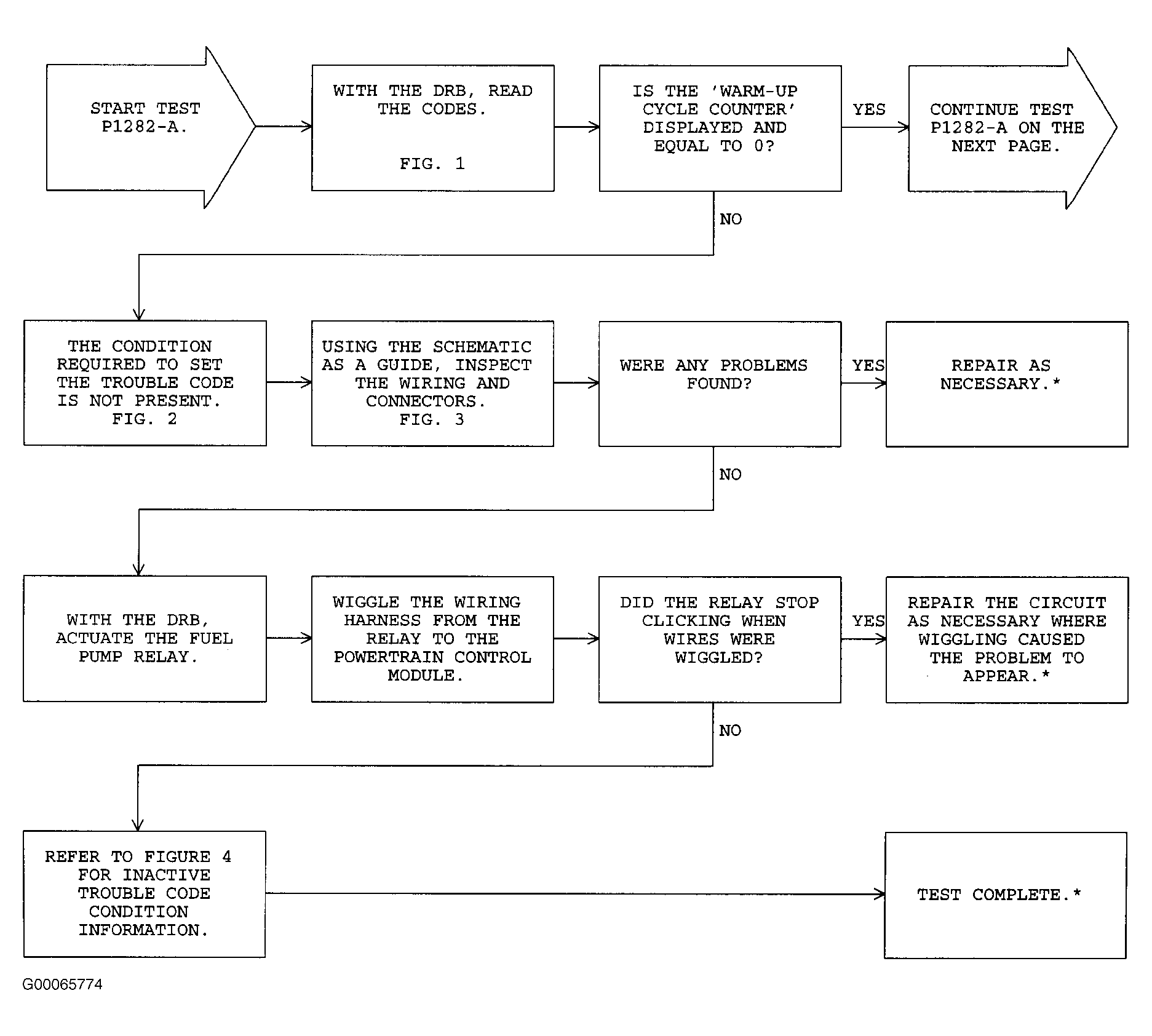

Fig 1: P1282-A: Fuel Pump Relay Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P1282-A: Fuel Pump Relay Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: P1282-A: Fuel Pump Relay Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P1282-A: Fuel Pump Relay Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
