DTC P0622-A: Generator Field Not Switching Properly

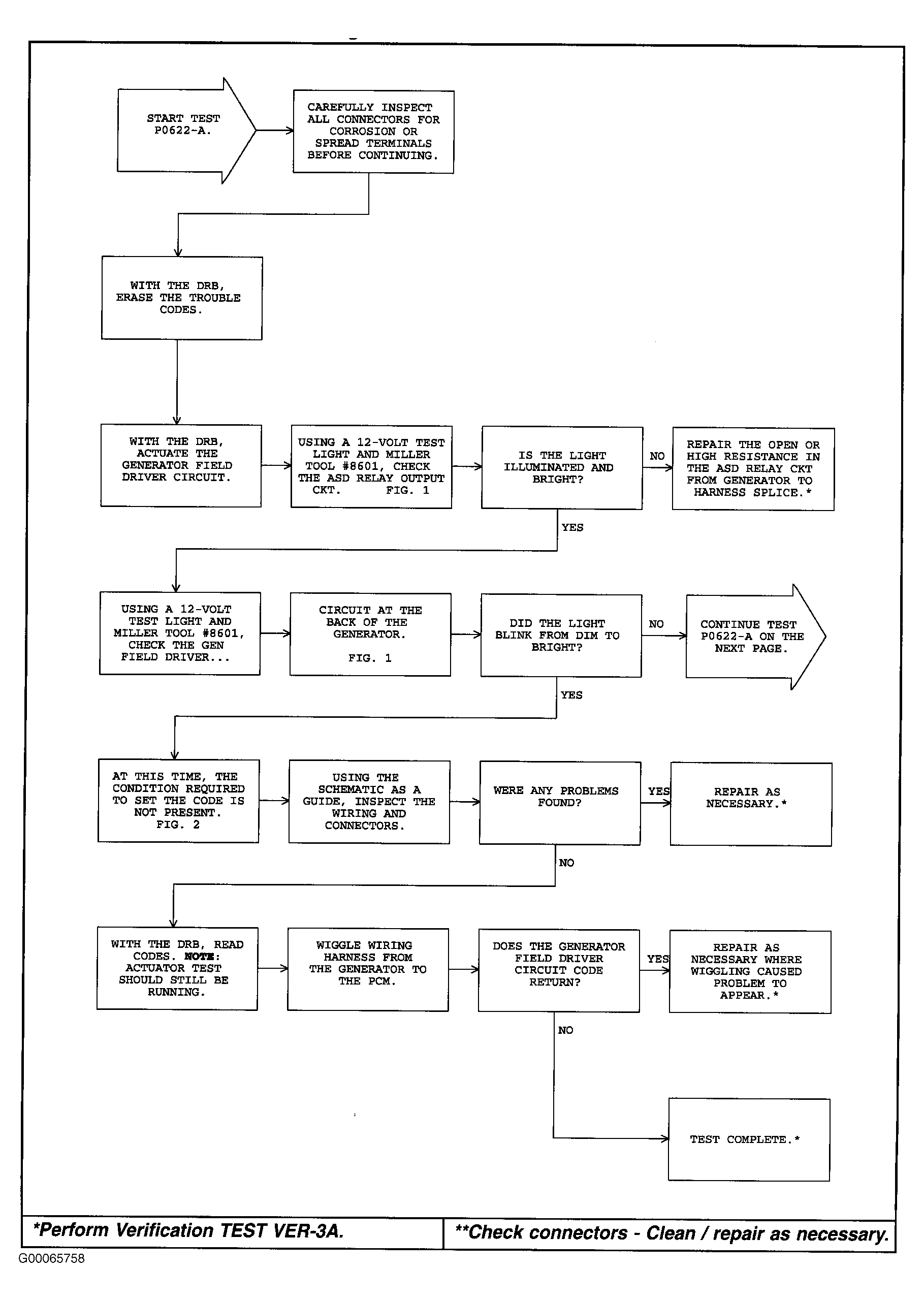

Fig 1: P0622-A: Generator Field Not Switching Properly (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

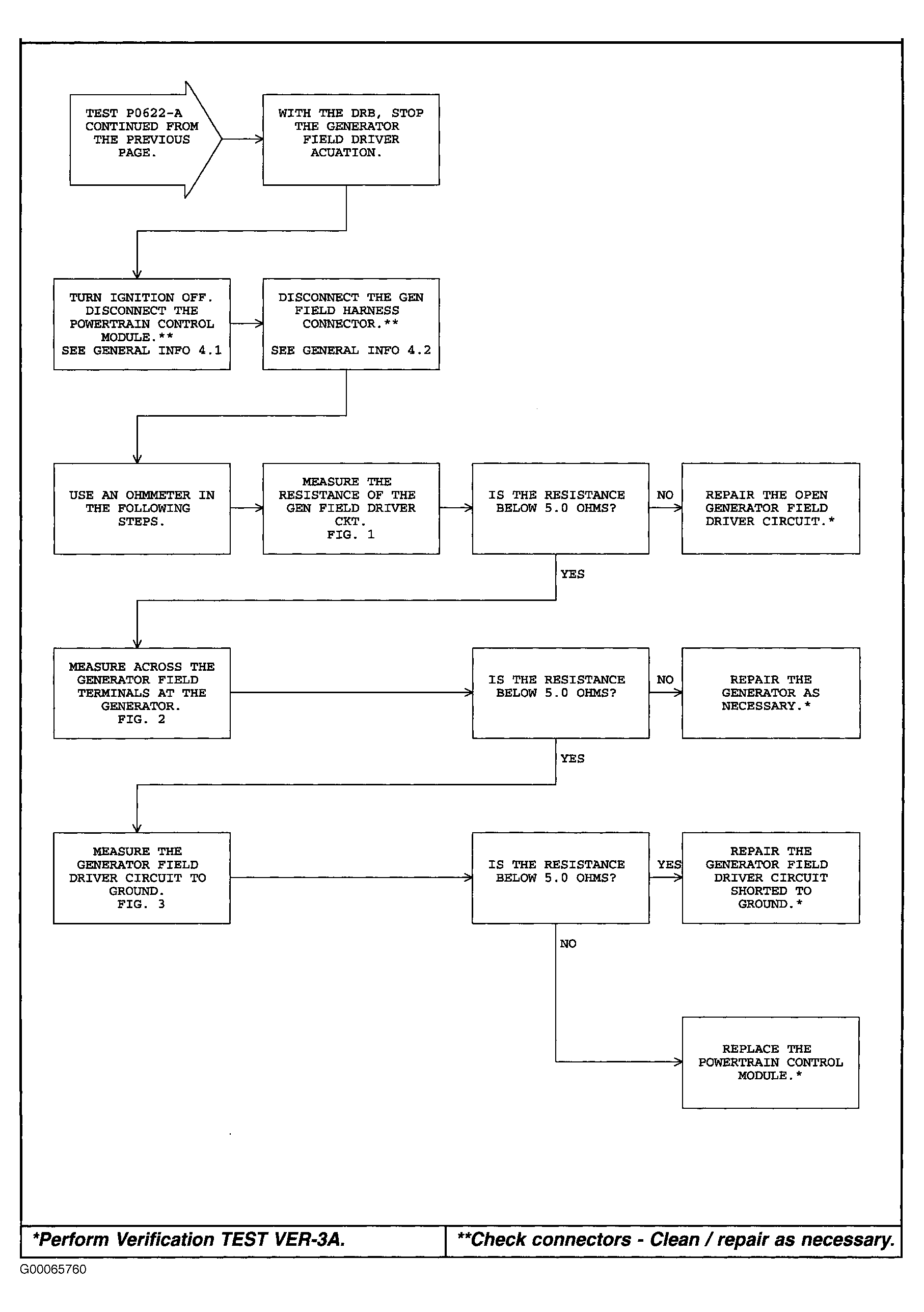

Fig 2: P0622-A: Generator Field Not Switching Properly (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

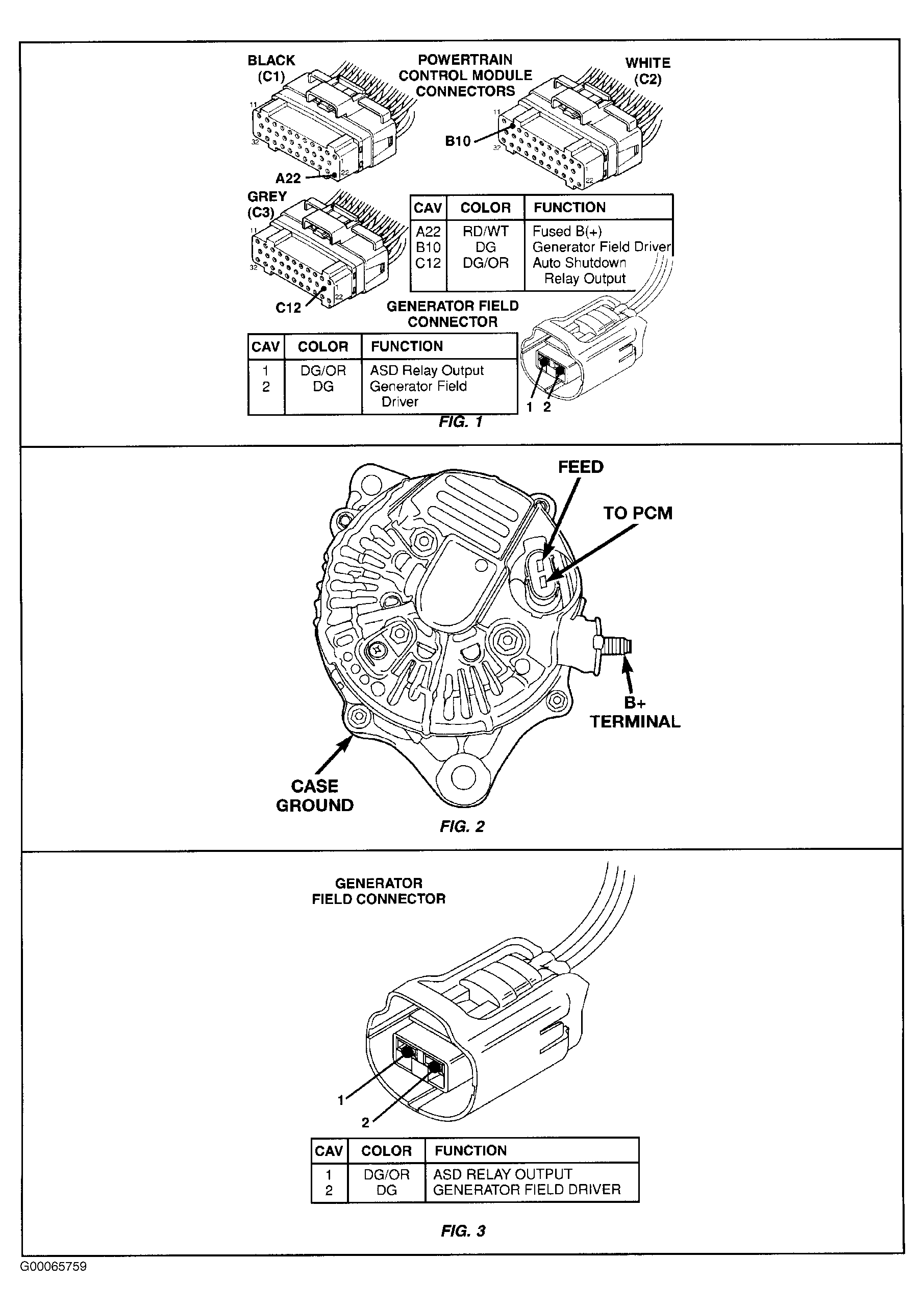

Fig 3: P0622-A: Generator Field Not Switching Properly (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

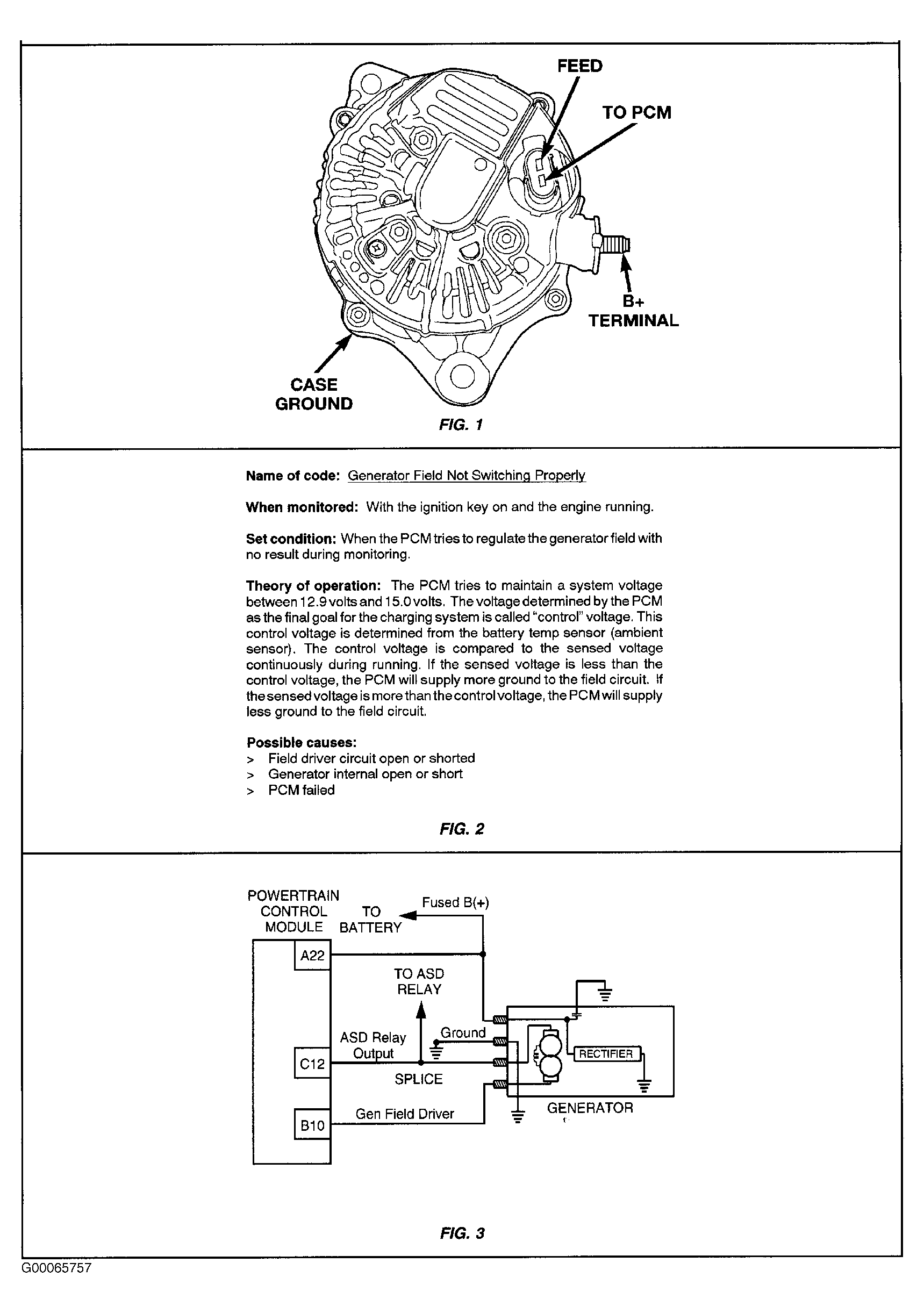

Fig 4: P0622-A: Generator Field Not Switching Properly (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
