Home >> Dodge and Ram >> 1999 >> Viper ACR >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control - Self-Diagnostics >> System Tests >> DTC P0171-B: Fuel System 1/1 Lean

DTC P0171-B: Fuel System 1/1 Lean

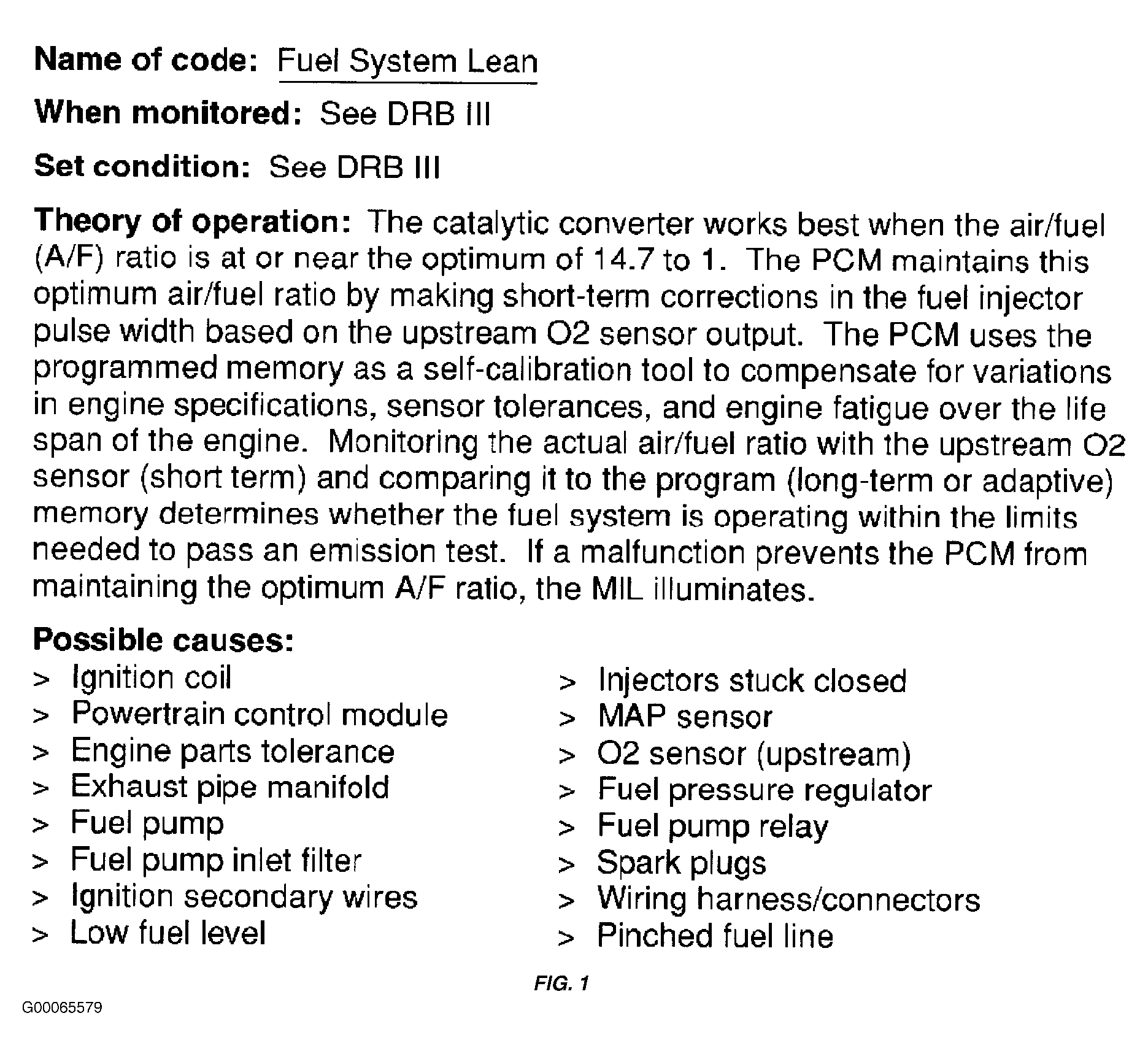

Fig 1: P0171-B: Fuel System 1/1 Lean (1 Of 2)
G00065579Courtesy of DAIMLERCHRYSLER CORPORATION

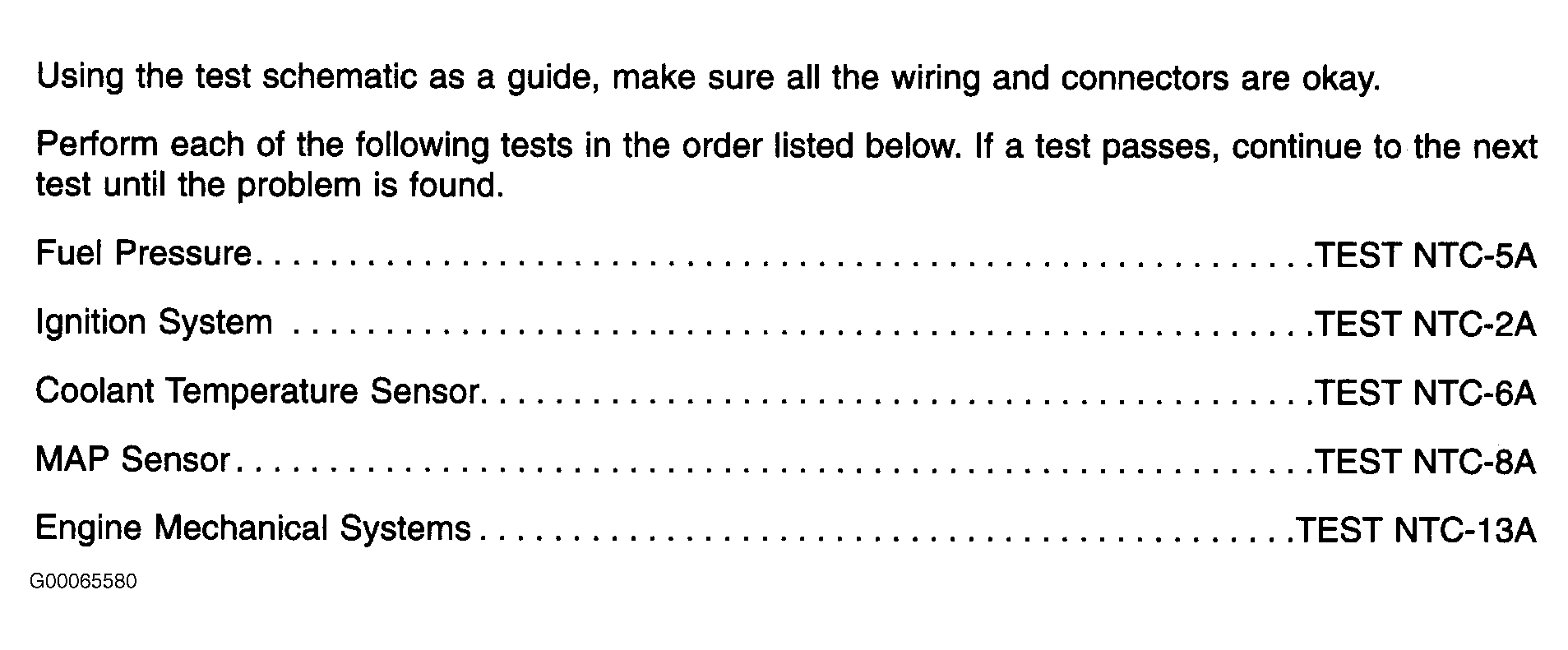

Fig 2: P0171-B: Fuel System 1/1 Lean (2 Of 2)
G00065580Courtesy of DAIMLERCHRYSLER CORPORATION
