Test NTC-26A: Checking A/C System

NOTE: Perform Test NTC-1A Before Proceeding

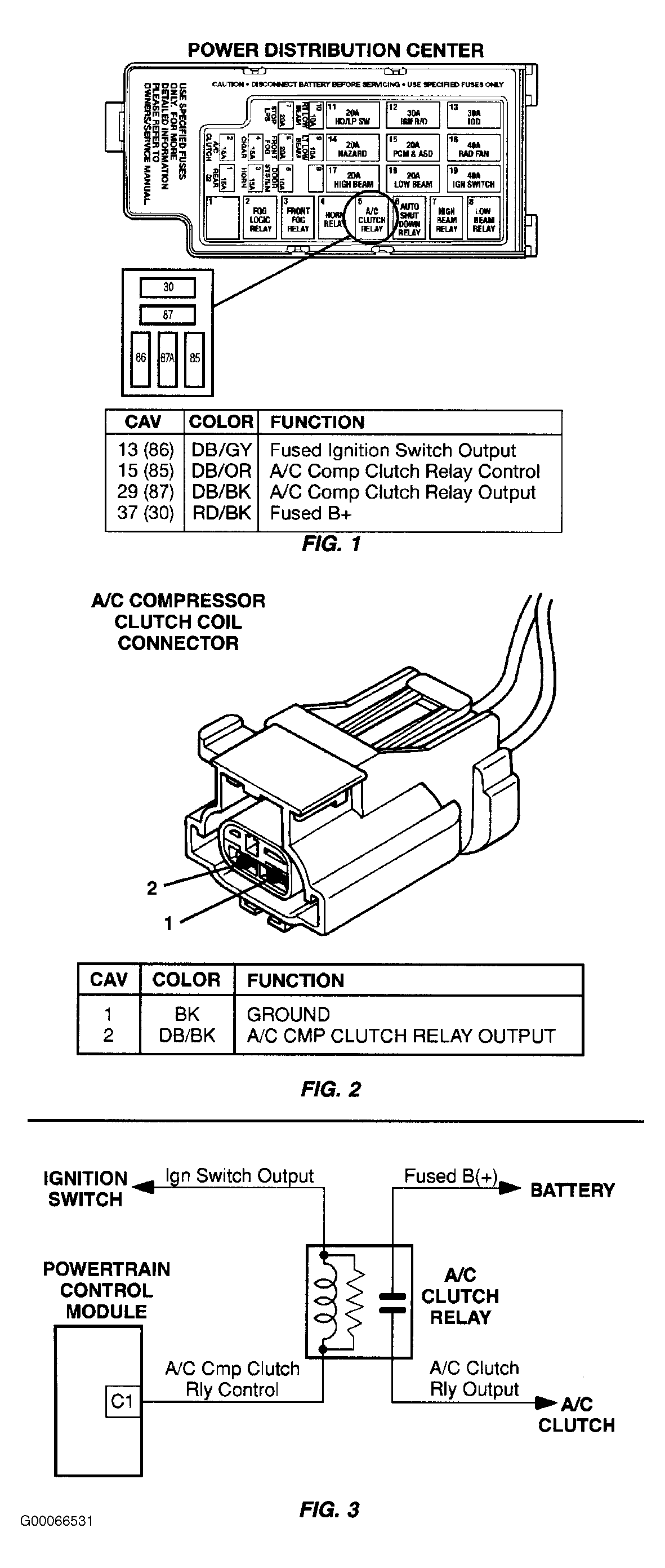

Fig 1: NTC-26A: Checking A/C System (1 Of 2)
G00066531Courtesy of DAIMLERCHRYSLER CORPORATION

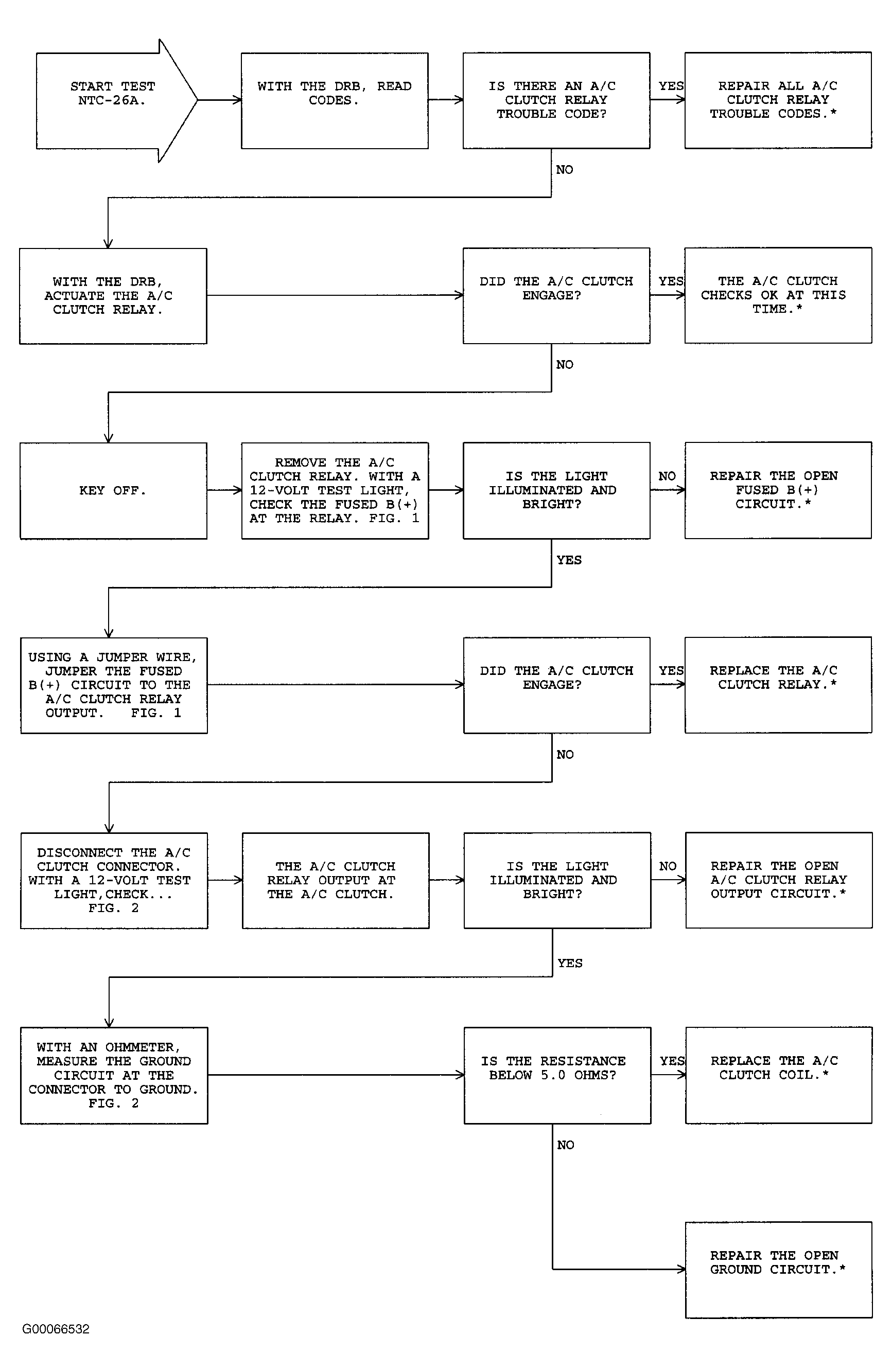

Fig 2: NTC-26A: Checking A/C System (2 Of 2)
G00066532Courtesy of DAIMLERCHRYSLER CORPORATION
