Service Point Locations

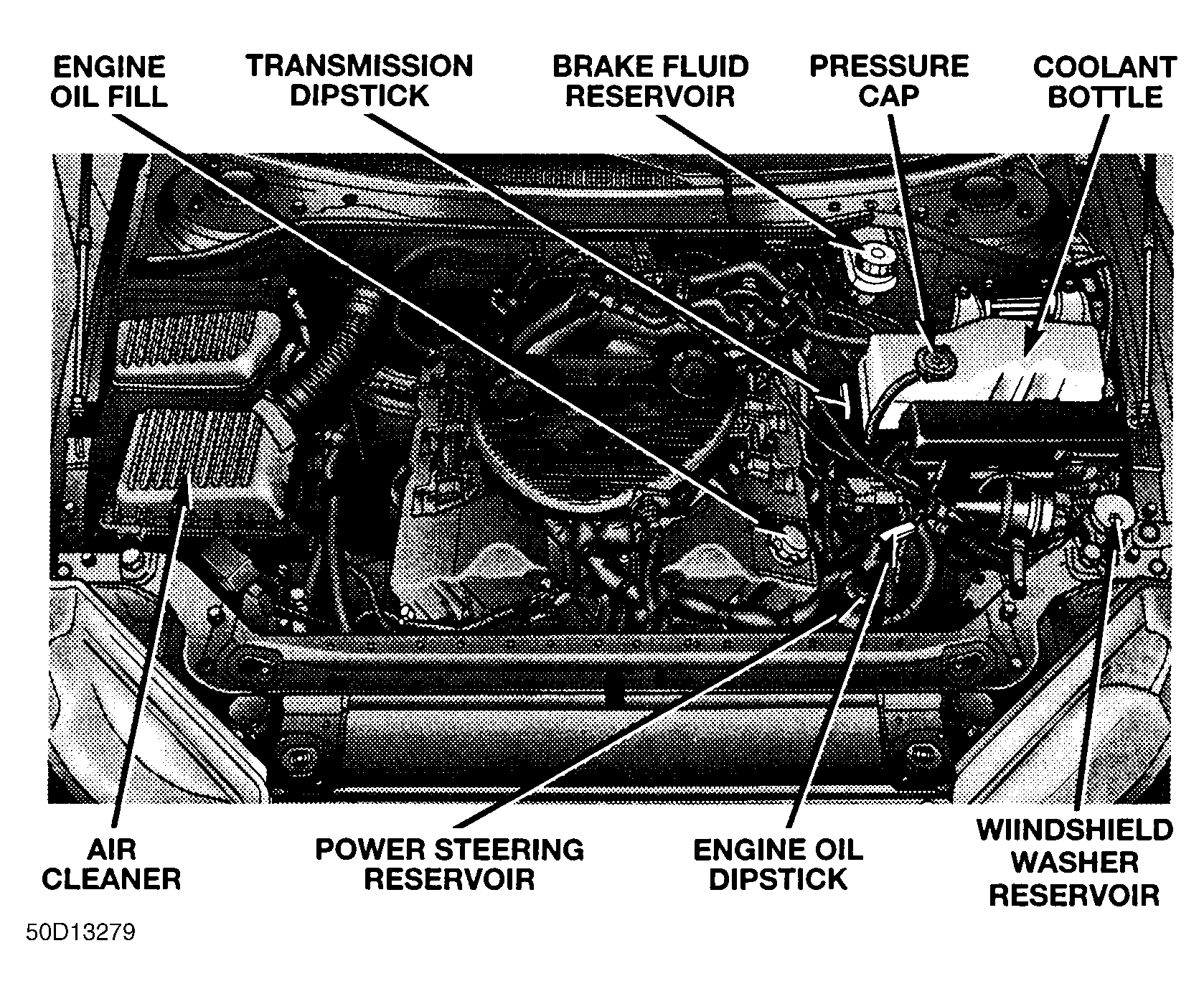

Fig 1: Service Point Locations (2.7L Engine)

G50D13279

Courtesy of CHRYSLER CORP.

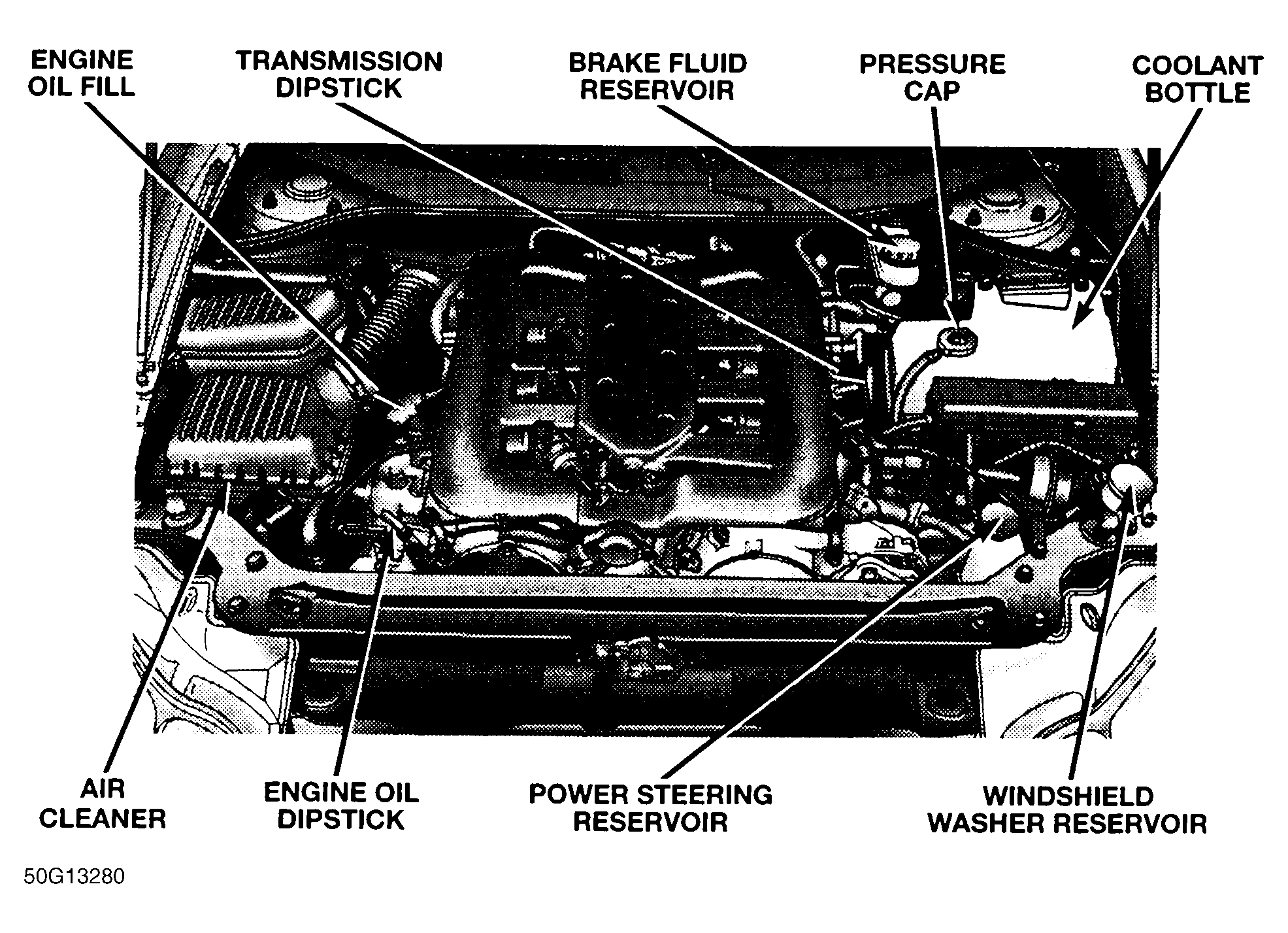

Fig 2: Service Point Locations (3.2L Engine)

G50G13280

Courtesy of CHRYSLER CORP.
