Passenger Airbag: Removal
- Disconnect negative battery cable. If Passenger Airbag is undeployed, wait two minutes for system capacitor to discharge before further service. Remove pedal adjusting knob. Remove left side knee blocker. Remove right side knee blocker cover. Remove right knee blocker metal support. Remove right side instrument panel A/C outlet duct.

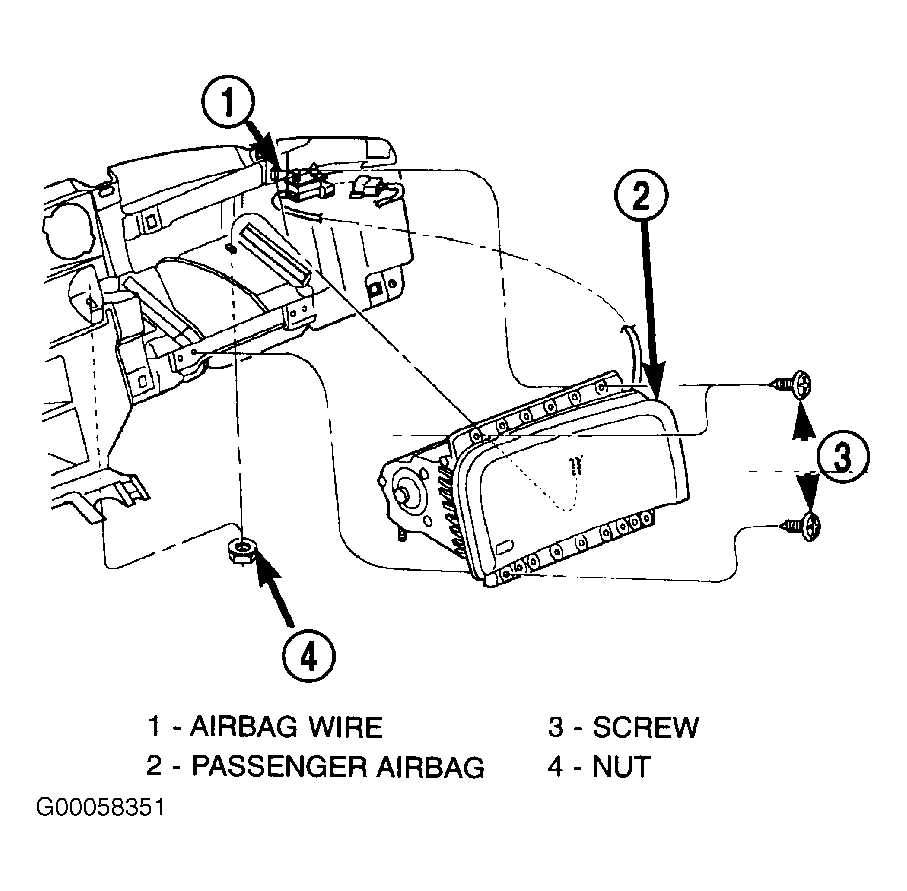

- Unsnap and set aside instrument panel center bezel. Unsnap and set aside instrument panel bezel. Total removal of bezel is not necessary. Disconnect passenger airbag wiring connector up behind right rear of passenger airbag. Remove four front airbag mounting screws. See Fig 1
. Remove two lower airbag mounting nuts. Remove passenger airbag from vehicle.
Courtesy of DAIMLERCHRYSLER CORPORATION
