WARNING: This page is about a different car, the 2001 Dodge Viper and 2000 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

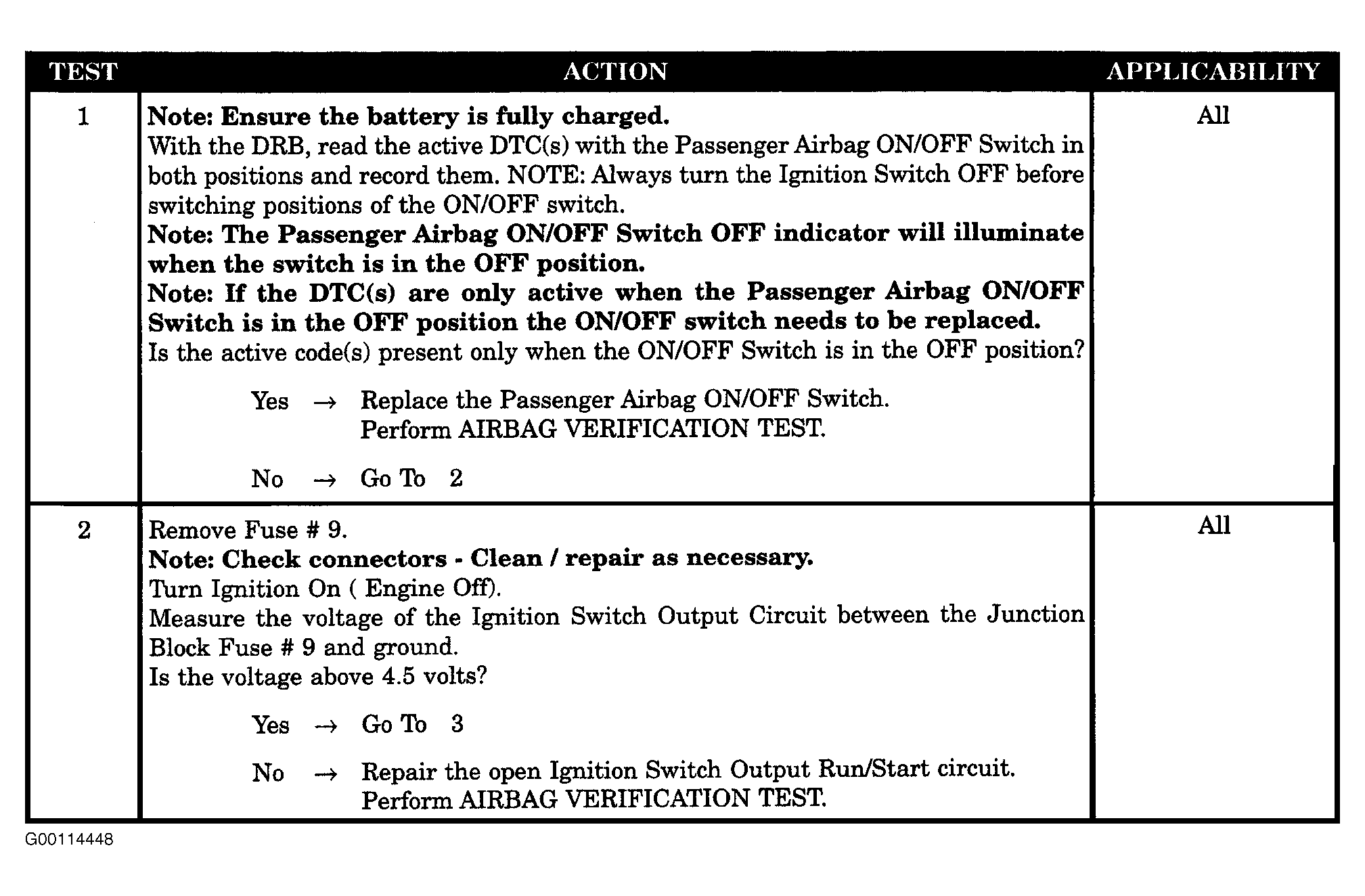

Fig 1: Loss Of Ignition Run/Start (Active) Test (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

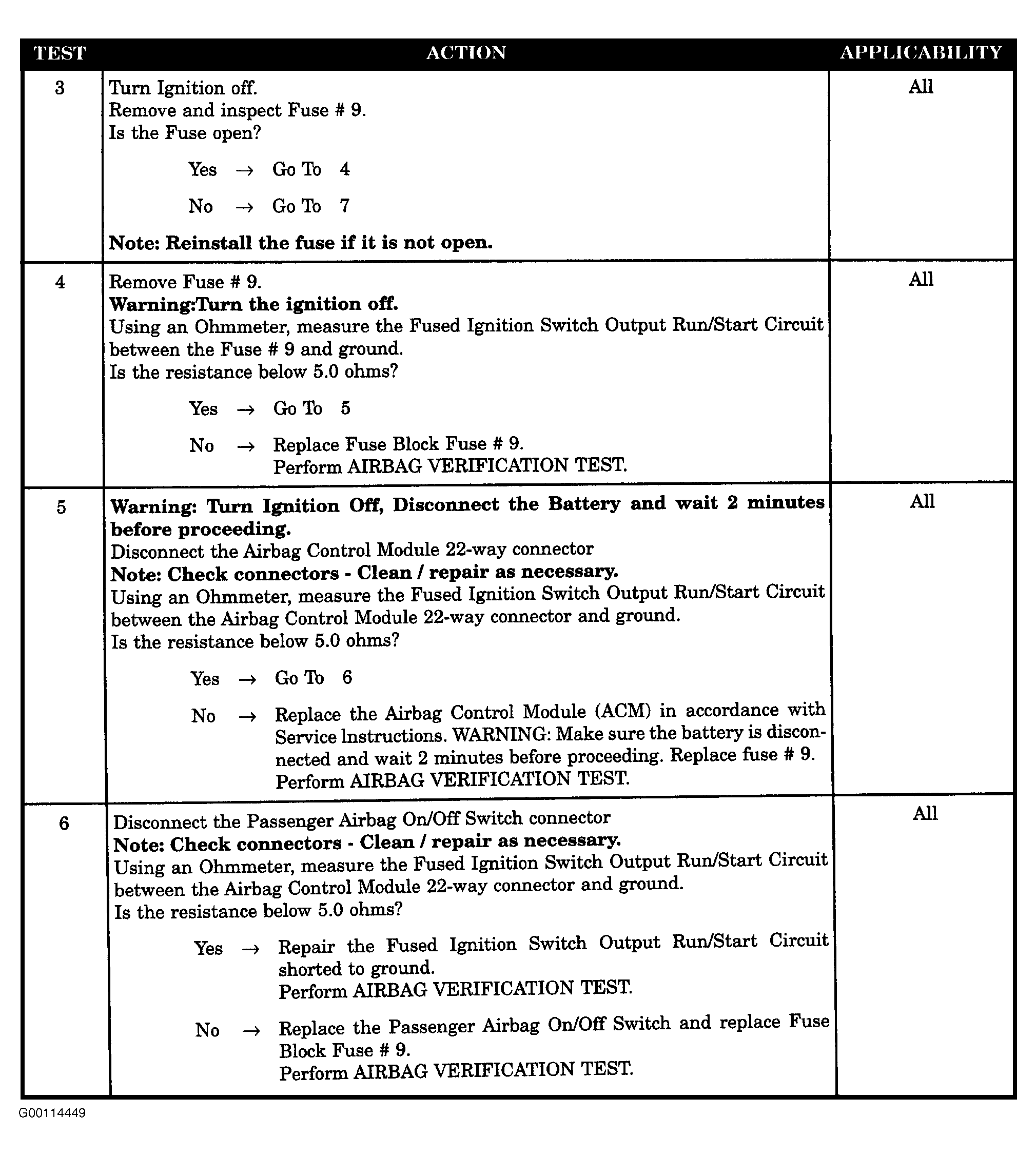

Fig 2: Loss Of Ignition Run/Start (Active) Test (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

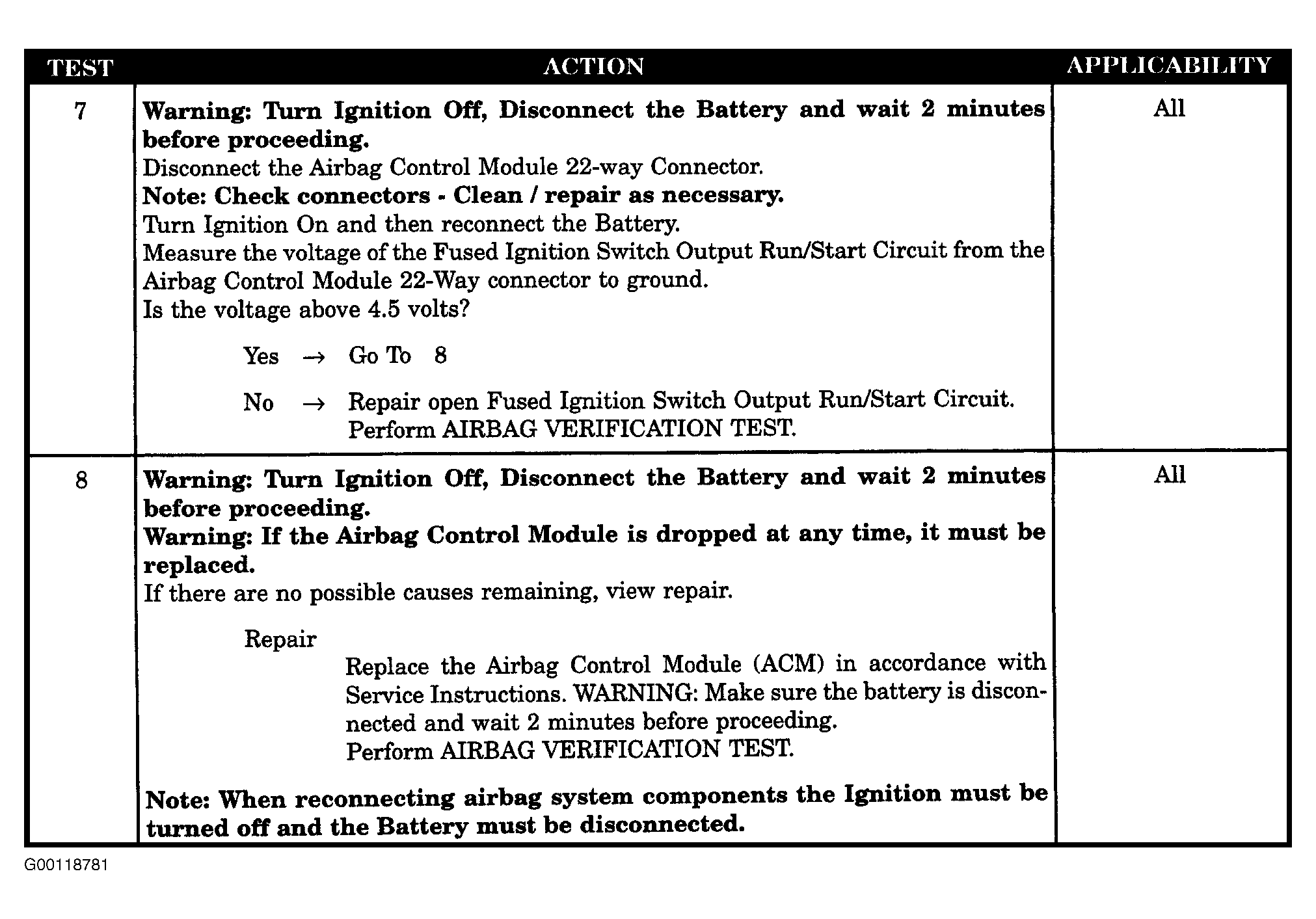

Fig 3: Loss Of Ignition Run/Start (Active) Test (3 Of 3)
