Powertrain Control Module Connections

WARNING: This page is about a different car, the 2001 Dodge Viper, 2000 Dodge Viper, and 1999 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

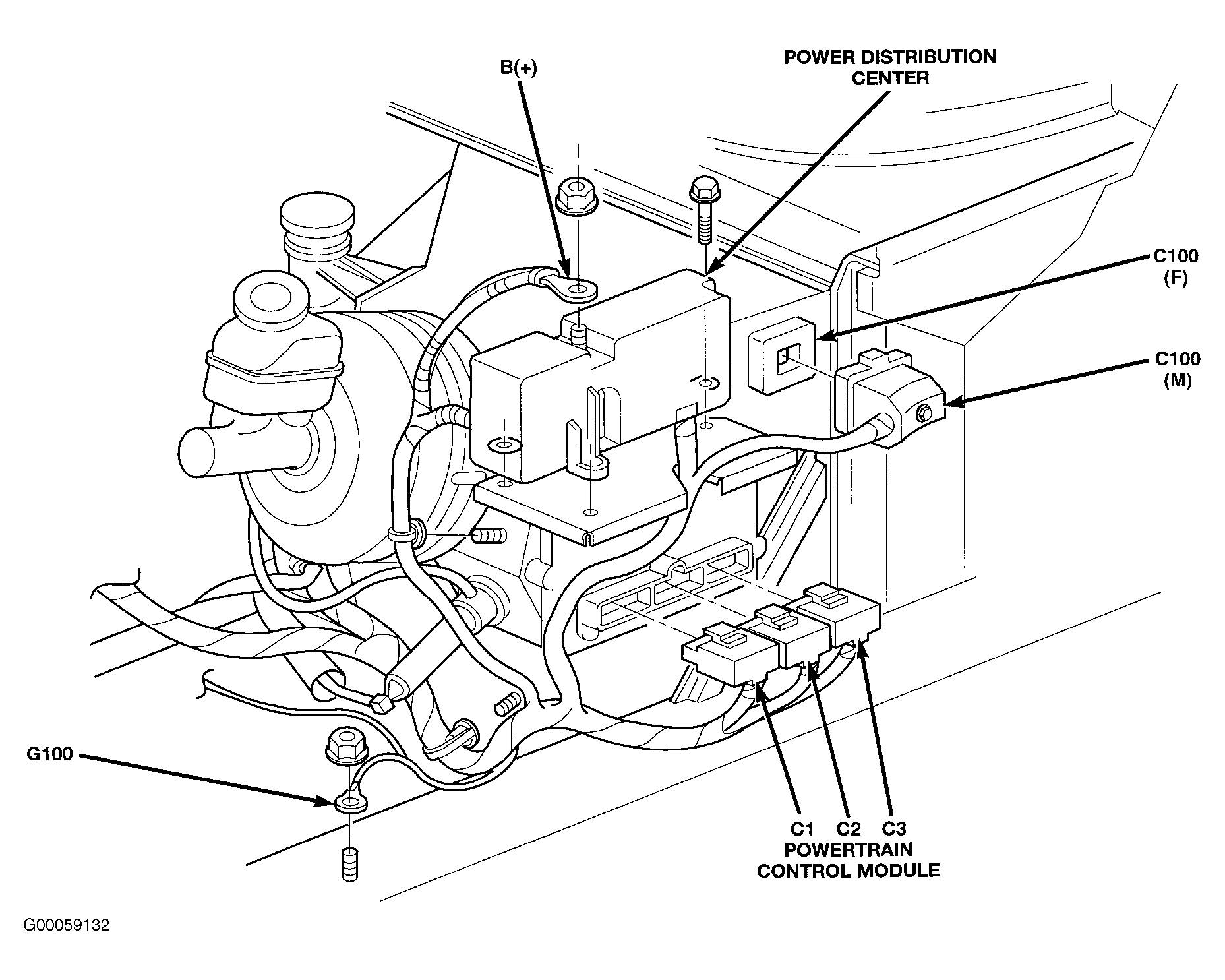

Fig 1: Powertrain Control Module Connections
G00059132Courtesy of DAIMLERCHRYSLER CORPORATION
