Wiring Diagrams

NOTE: For additional wiring diagrams, connector identification, ground connections, and splice locations, see WIRING DIAGRAMS - VIPER .

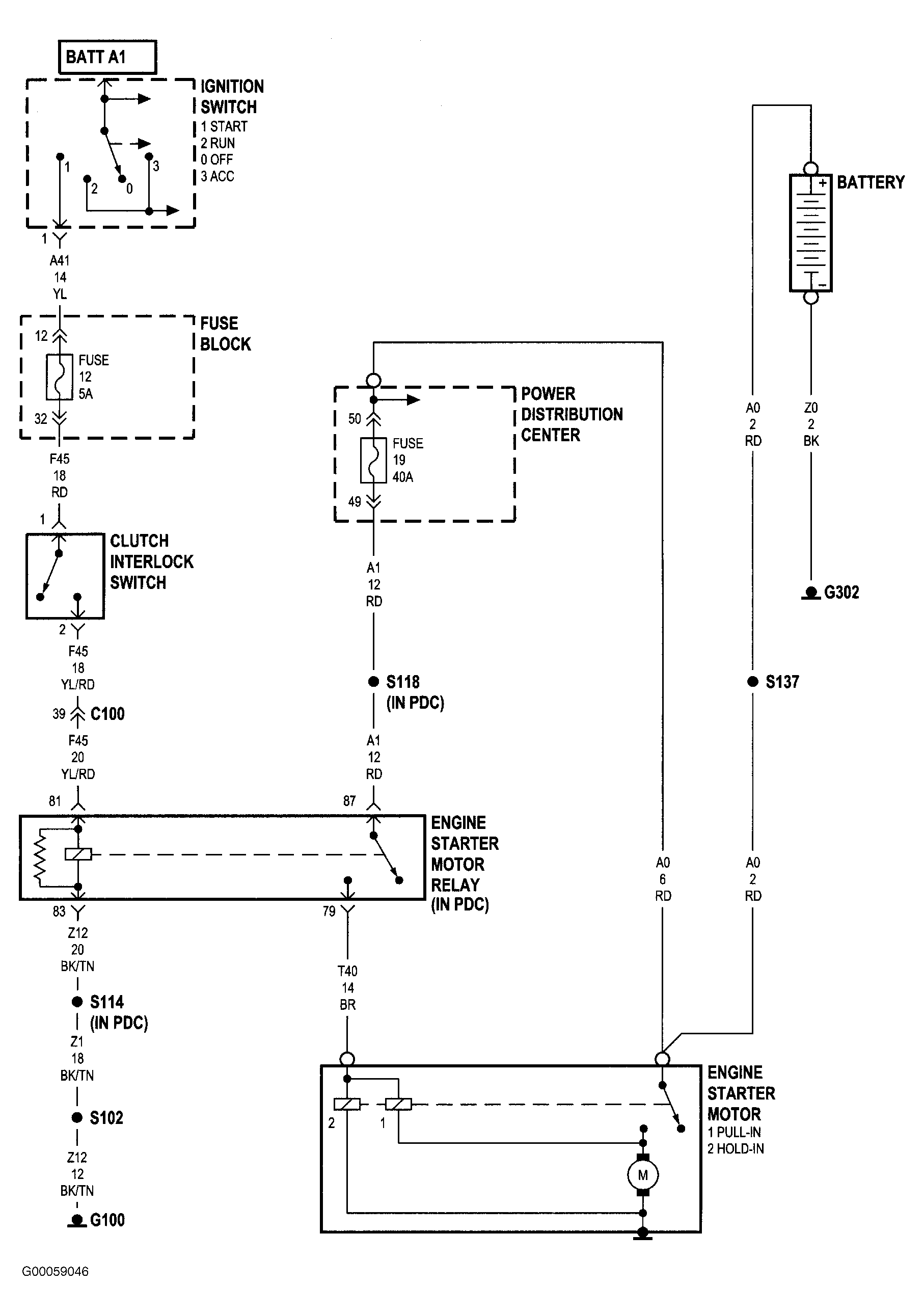

Fig 1: Starting System Wiring Diagram
G00059046Courtesy of DAIMLERCHRYSLER CORPORATION
