Mechanical Diagnostics

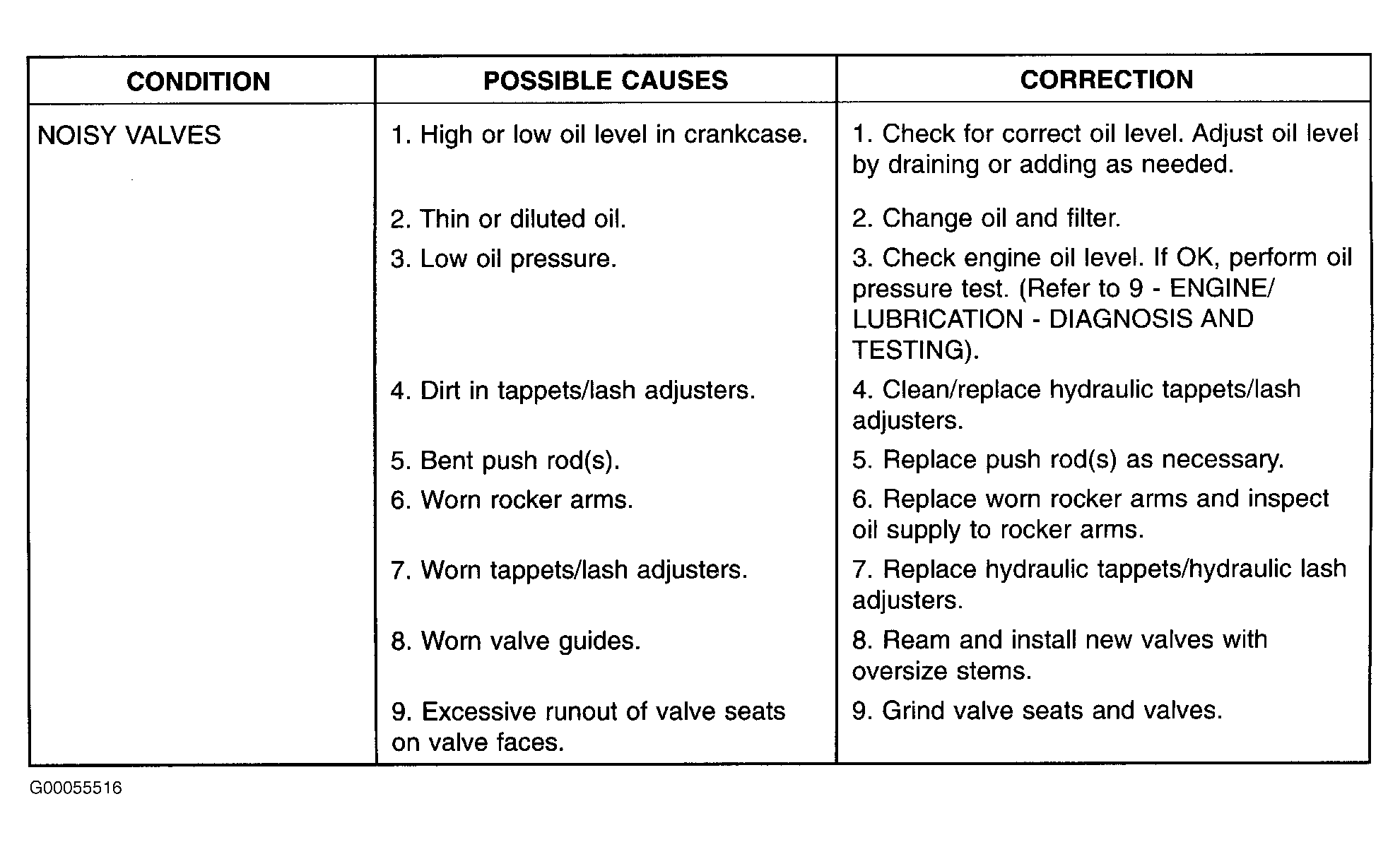

Fig 1: Engine Diagnosis - Mechanical Checks (1 Of 2)
G00055516Courtesy of DAIMLERCHRYSLER CORPORATION

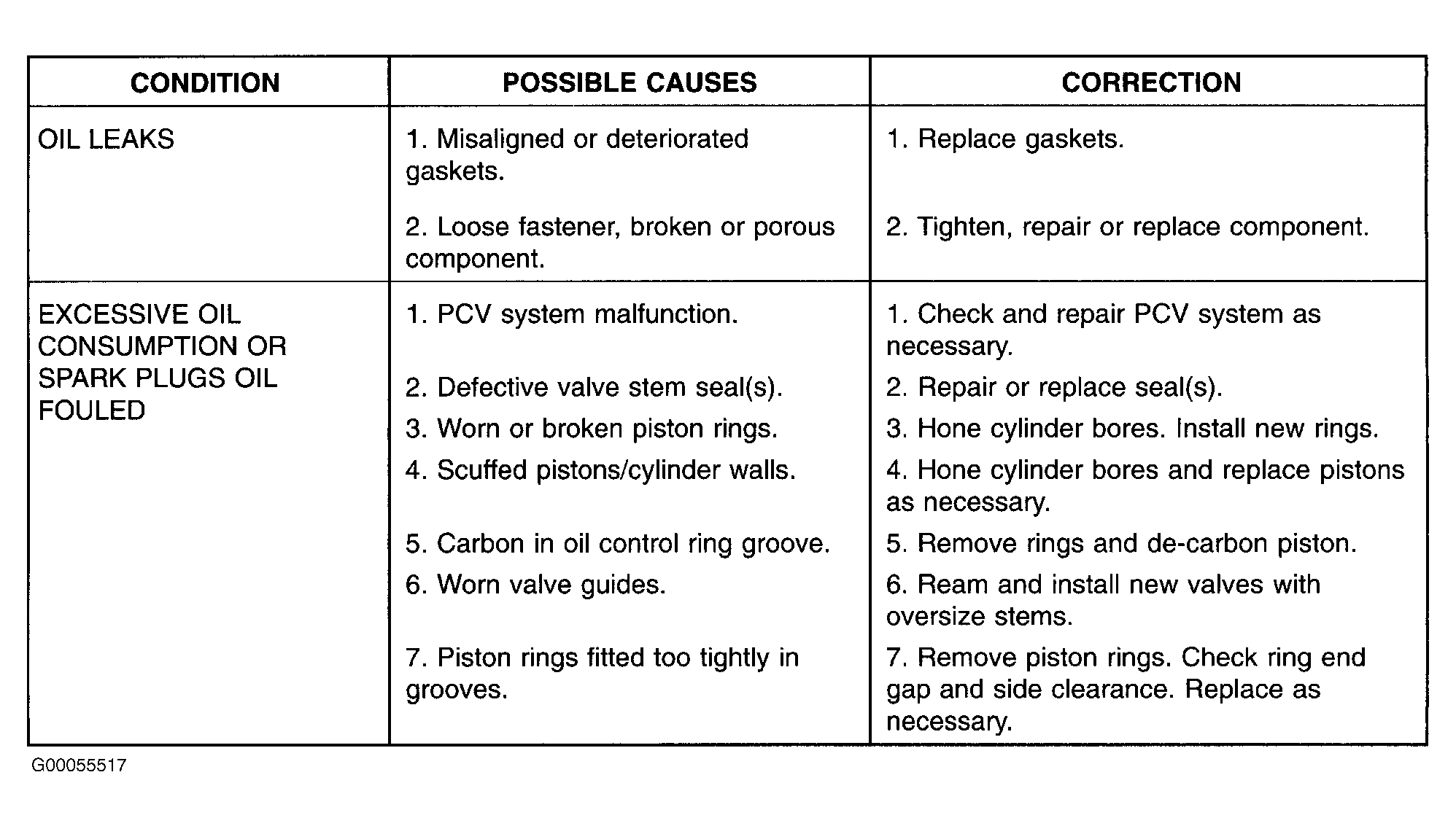

Fig 2: Engine Diagnosis - Mechanical Checks (2 Of 2)
G00055517Courtesy of DAIMLERCHRYSLER CORPORATION
