Timing Chain Cover: Removal

Disconnect battery. Remove air cleaner assembly and hoses to throttle bodies. Drain cooling system. Remove coolant hoses from engine and radiator. Remove accessory drive belt. Disconnect generator wiring. Remove generator. See Fig 1.
If equipped with A/C, remove compressor mounting bolts. If replacing timing chain cover, remove oil filter adapter and discard gasket. See Fig 2. If only removing timing chain cover, remove oil cooler lines at oil filter adapter.
Remove crankshaft pulley and damper. Disconnect cam sensor electrical connector at chain case cover. Remove chain case cover fasteners and remove chain case cover. See Fig 3. Remove crankshaft oil seal and discard.

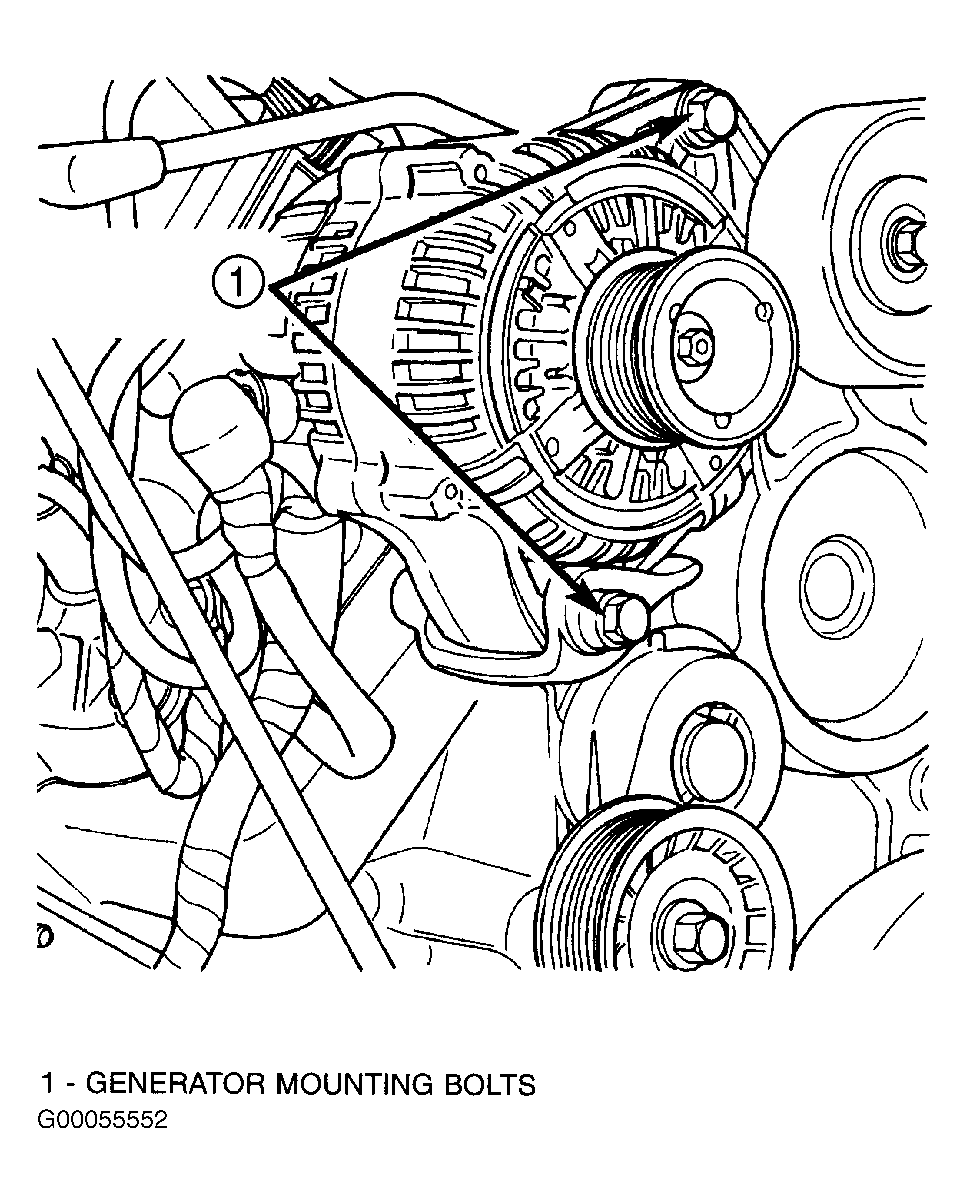

Fig 1: Removing Generator

Courtesy of DAIMLERCHRYSLER CORPORATION

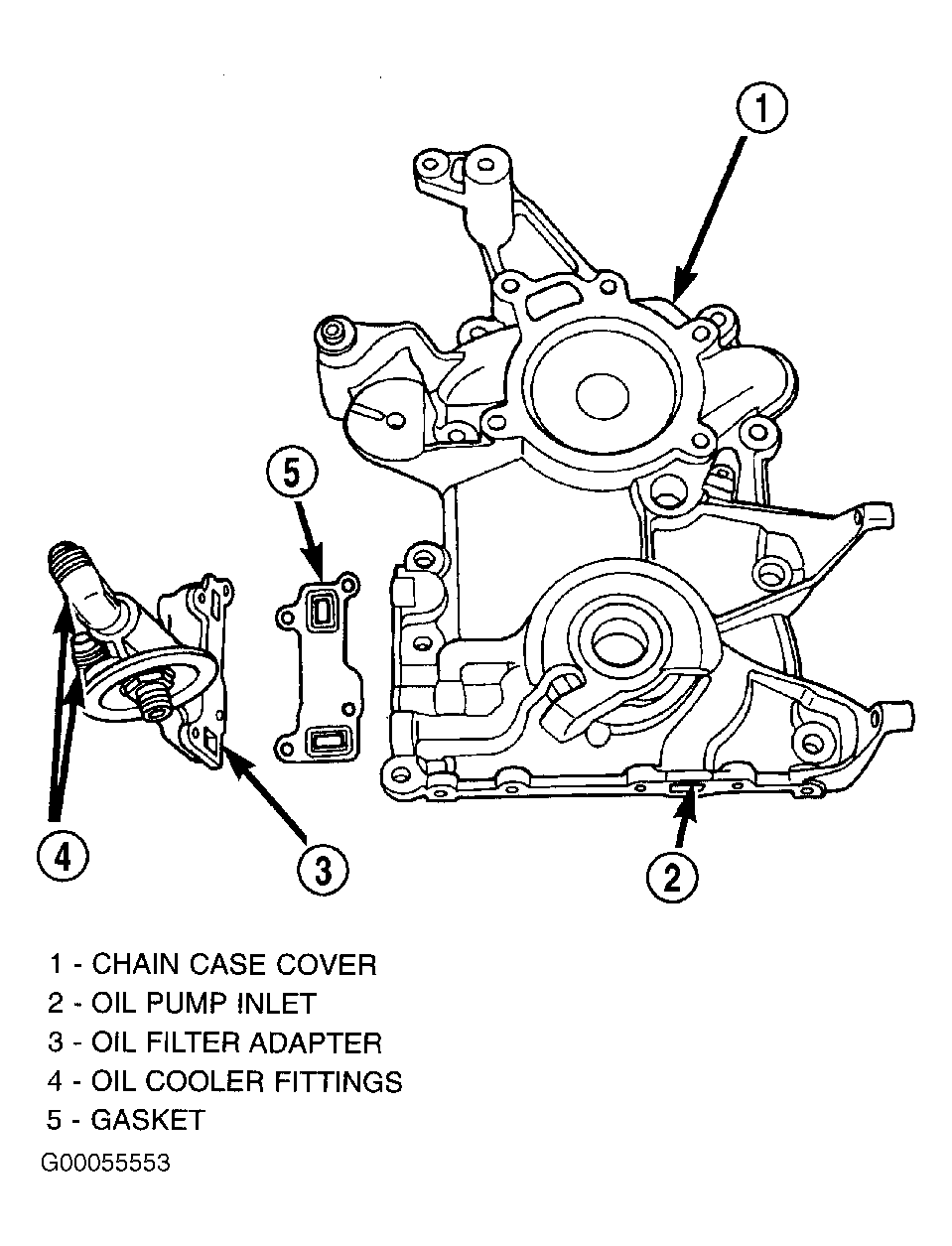

Fig 2: Identifying Oil Filter Adapter

Courtesy of DAIMLERCHRYSLER CORPORATION

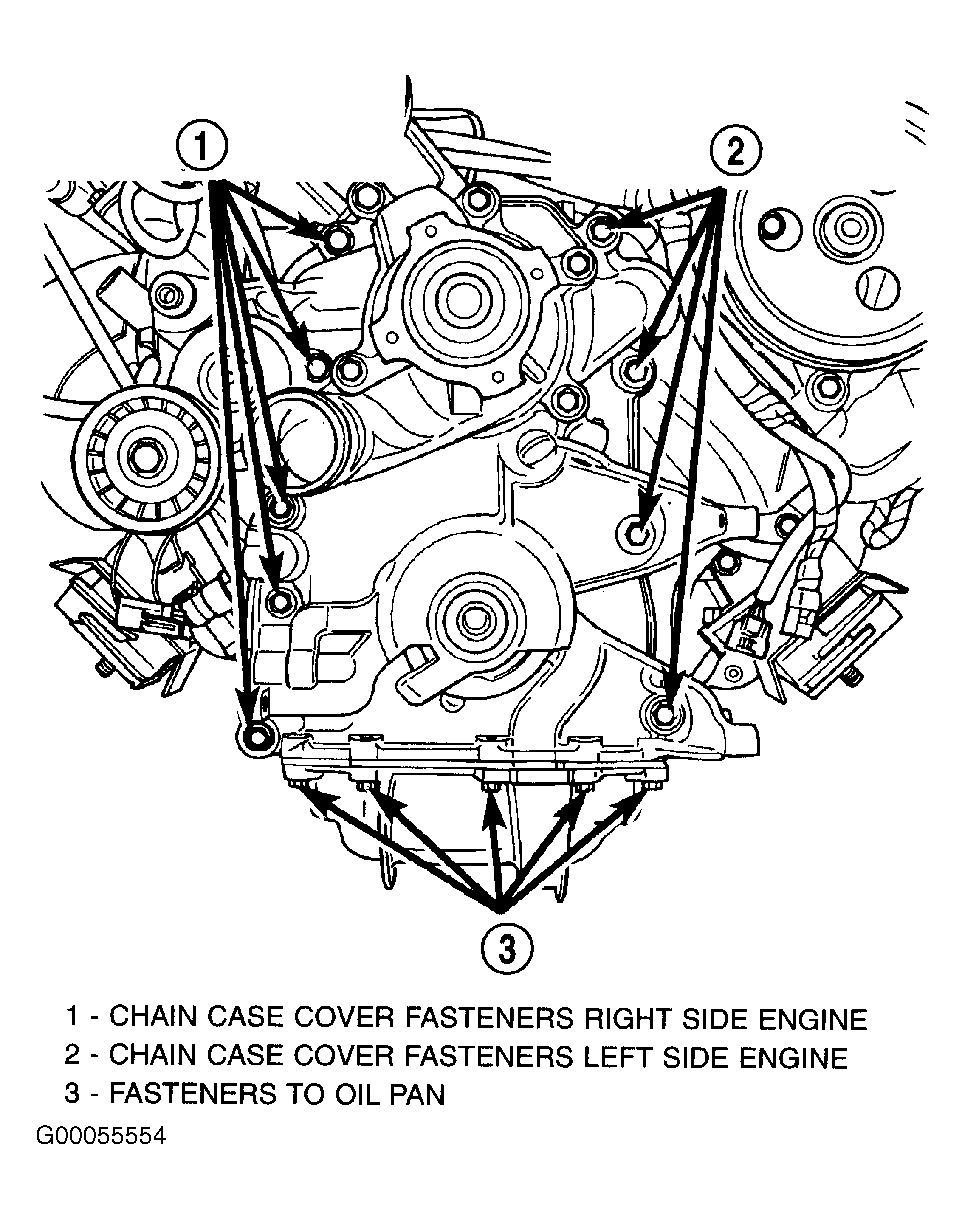

Fig 3: Identifying Timing Chain Case Cover Fasteners

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Identifying Timing Chain Case Cover Gasket & Locating Dowels

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Installing Crankshaft Oil Seal

Courtesy of DAIMLERCHRYSLER CORPORATION
