Cylinder Heads: Notes

The aluminum alloy cylinder head shown in Fig 1 is held in place by 12, 1/2" bolts and 8, 1/4" bolts. Spark plugs are located in peak of combustion chamber between valves.

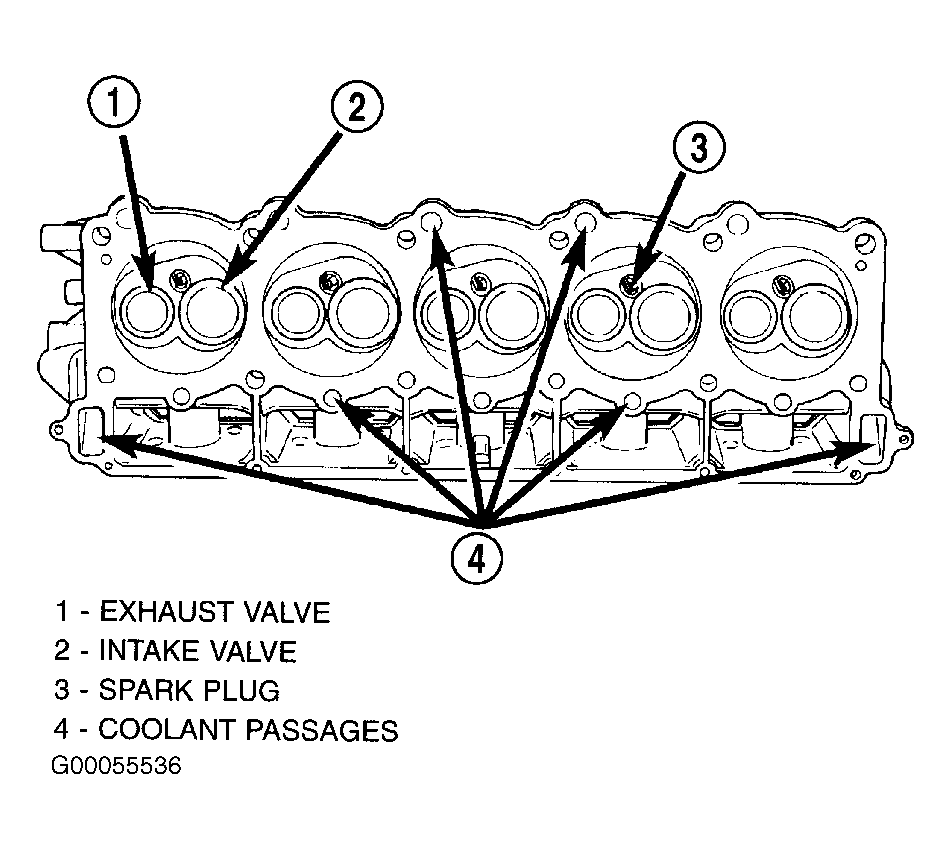

Fig 1: Identifying Cylinder Head Cooling Passages
G00055536Courtesy of DAIMLERCHRYSLER CORPORATION
