Checking Engine Oil Pressure

  1. Check oil pressure using gauge at oil pressure sending unit location. Remove pressure sending unit and install oil pressure gauge. See Fig 1.
    CAUTION: If oil pressure is 0 at idle, DO NOT operate engine at 3000 RPM.
  2. Warm engine at high idle until thermostat opens. Oil pressure should be 68.9 kPa (10 psi) at idle or 310-517 kPa (45-75 psi) at 3000 RPM.

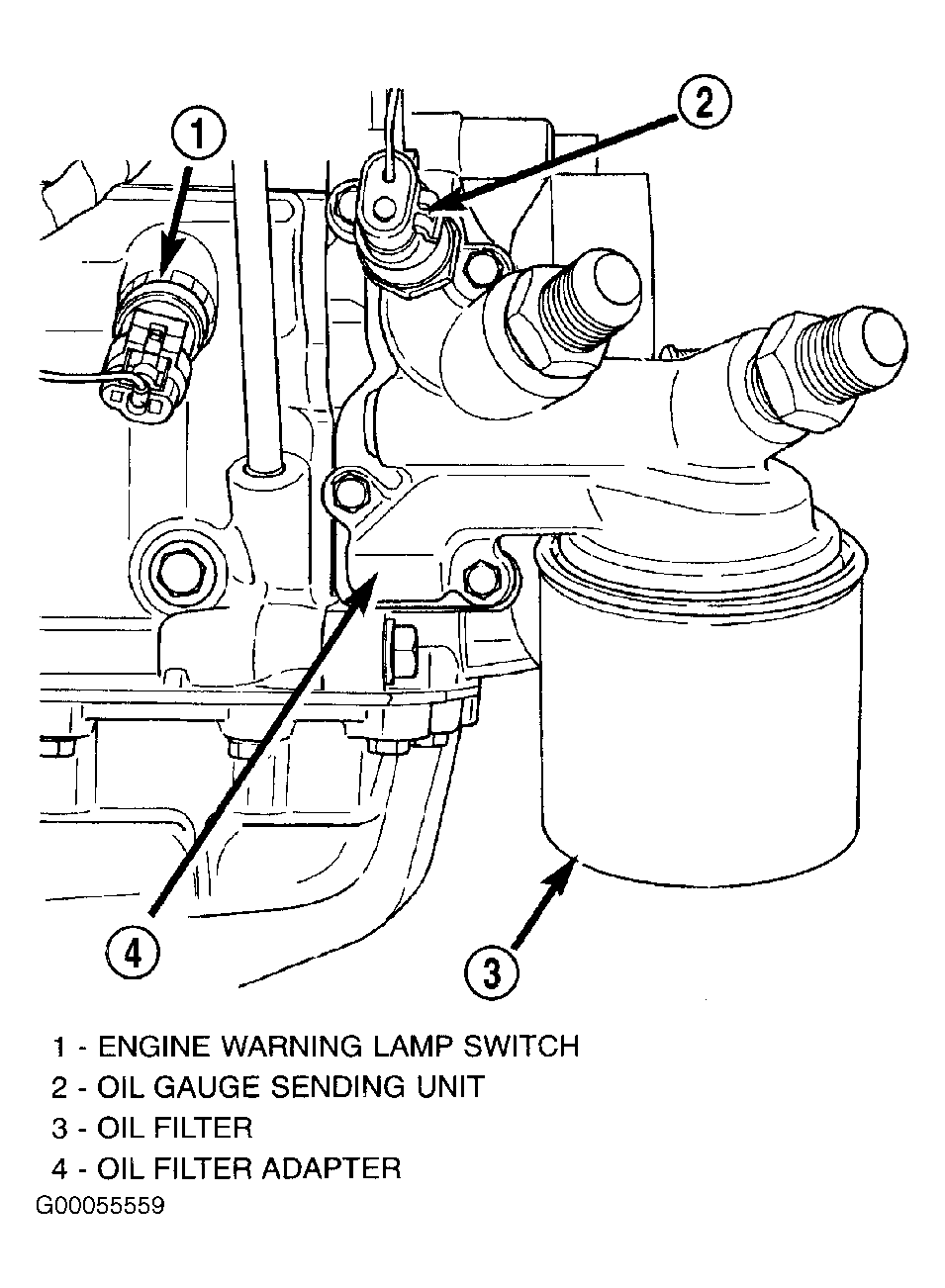

Fig 1: Identifying Oil Pressure Sending Unit Location
G00055559Courtesy of DAIMLERCHRYSLER CORPORATION
