Starter Motor

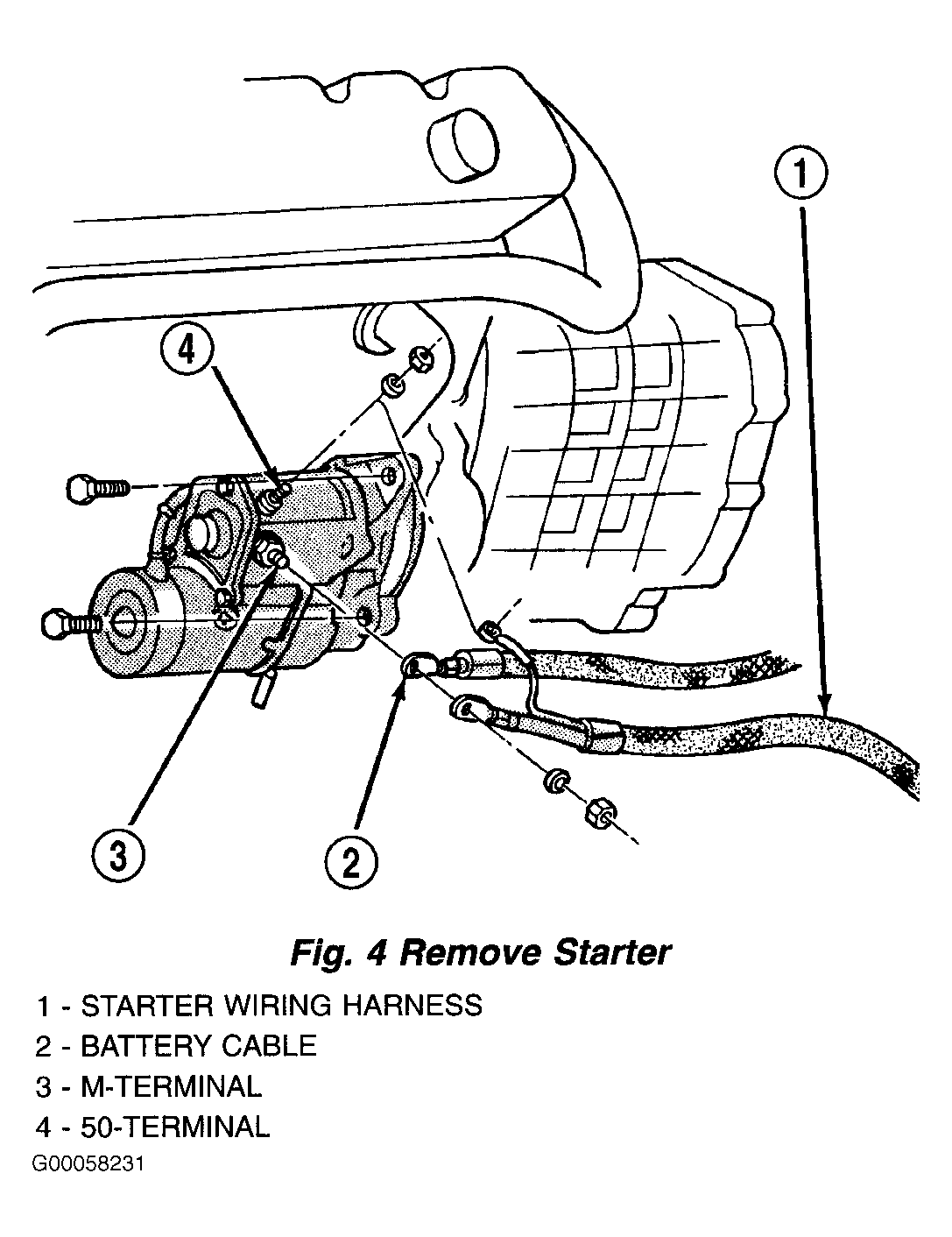

- Disconnect battery negative cable. See Fig 1 . Raise vehicle on hoist. Remove battery cable and solenoid wire from starter. Remove two starter attaching bolts from engine. See Fig 2 . Remove starter from vehicle.
- For installation, reverse above procedures. Clean corrosion/dirt from cables and wire terminals before installing wiring to solenoid.
