Instrument Panel: Notes

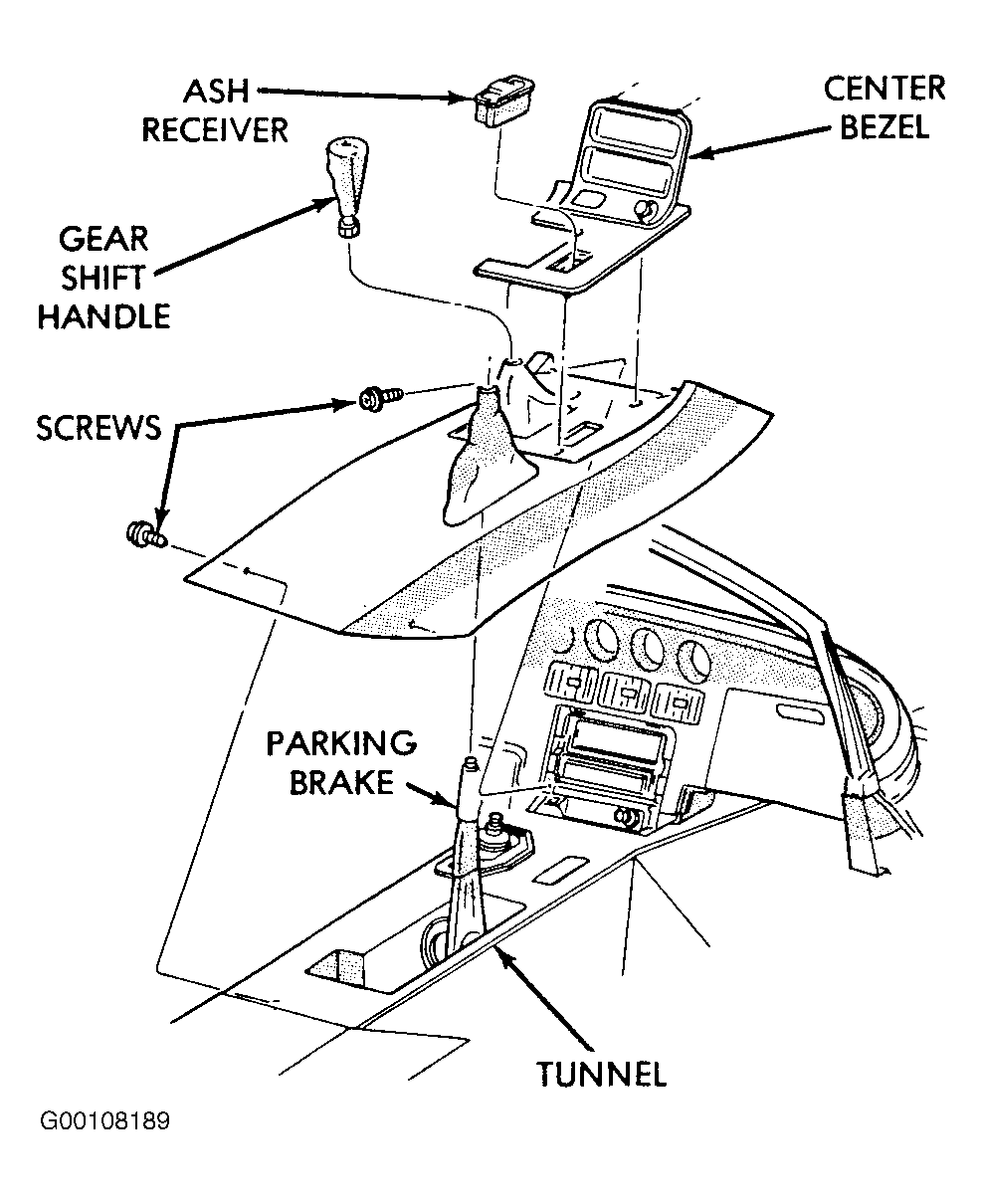

Fig 1: Instrument Center Bezel Removal & Installation

G00108189

Courtesy of CHRYSLER CORP.

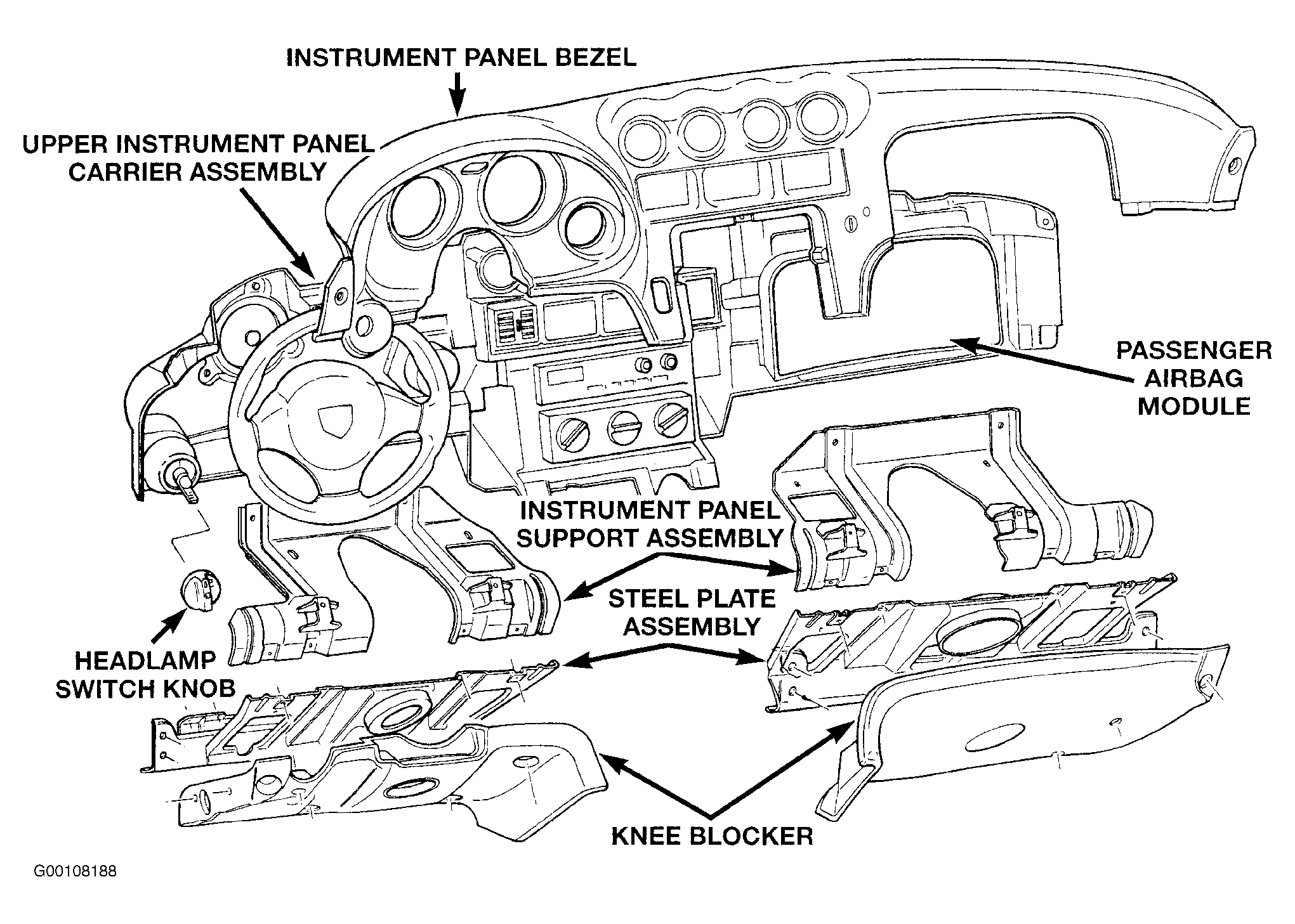

Fig 2: Instrument Panel Removal & Installation

G00108188

Courtesy of CHRYSLER CORP.
