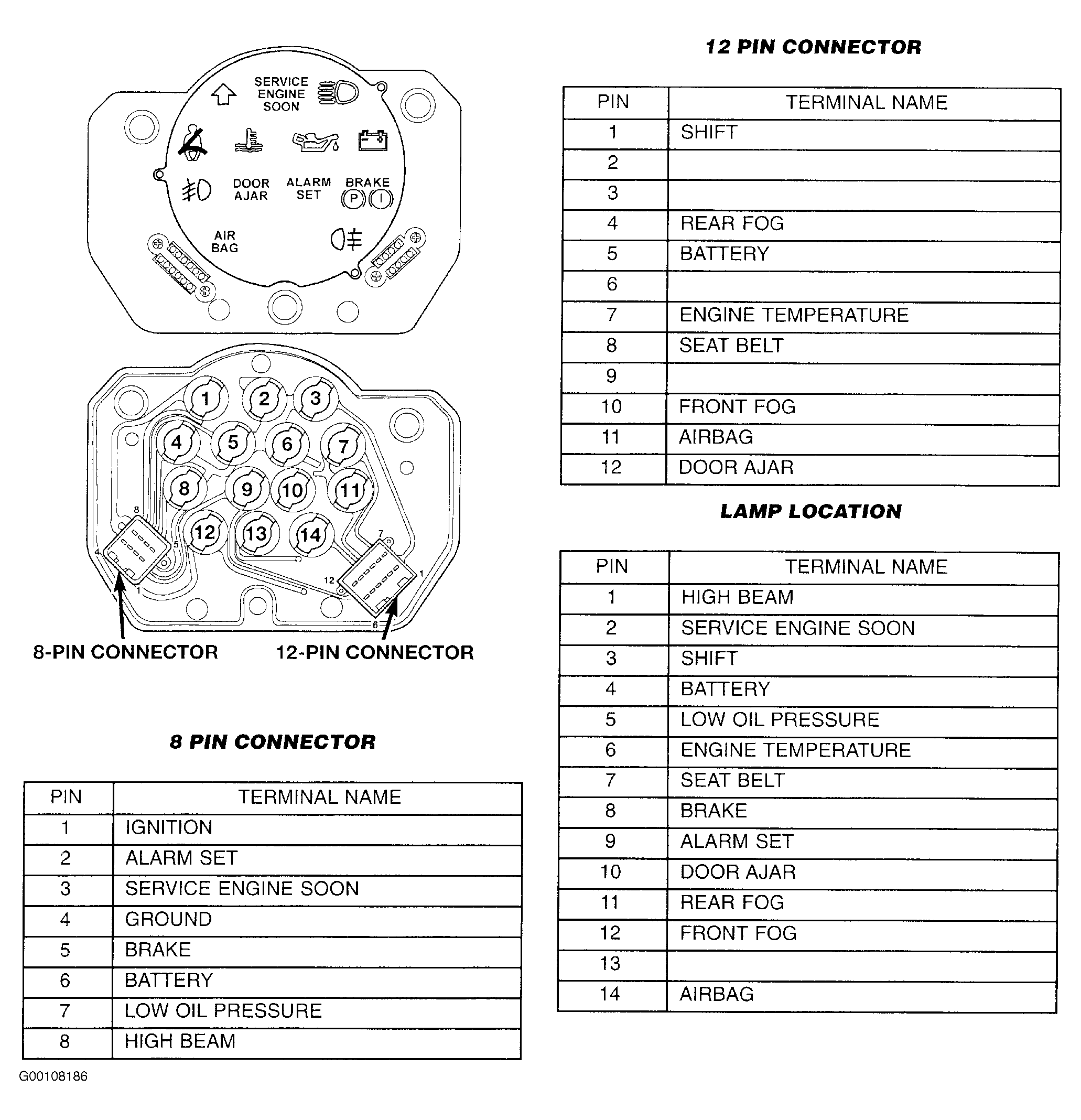

Message Center Test
Courtesy of CHRYSLER CORP.
- Warning lamps come when the ignition switch is first turns to the ON position and will remain ON for a few seconds to confirm lamps are working.
- If any lamp does not light, remove message center. Check lamps and replace as necessary. See MESSAGE CENTER.
- If All of the lamps do not light, remove message center and inspect printed circuit board. If OK go to next step. If not, replace message center.
- If lamps are always ON or lighting when the should not, test the sending units and wiring.
