Door Stanchion Inner Trim Panel: Removal

1. Remove screws attaching the door stanchion inner trim panel to the door stanchion. See Fig 1.
2. Pulling downward and forward on stanchion inner trim panel, disengage trim panel from door stanchion.
3. Pull upward on stanchion trim panel to disengage trim panel from door trim panel.
4. Disengage glass run weather-strip from the leading edge of the inner trim panel.
5. Separate door release cable housing from the leading edge of the inner trim panel.
6. Disengage the release cable end from the stanchion door release handle.
7. Remove trim panel from door stanchion.

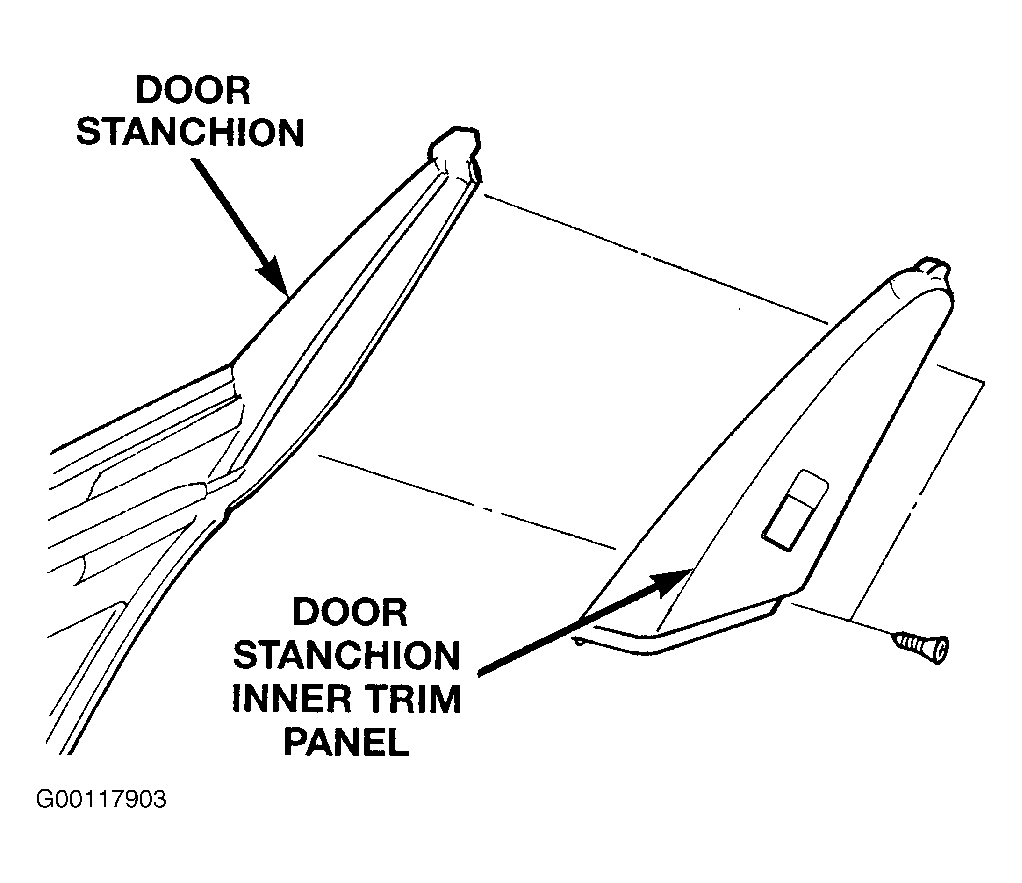

Fig 1: Door Stanchion Inner Trim Panel Removal & Installation

Courtesy of CHRYSLER CORP.
