Turn Signals & Hazard Systems
Turn Signals & Hazard Systems

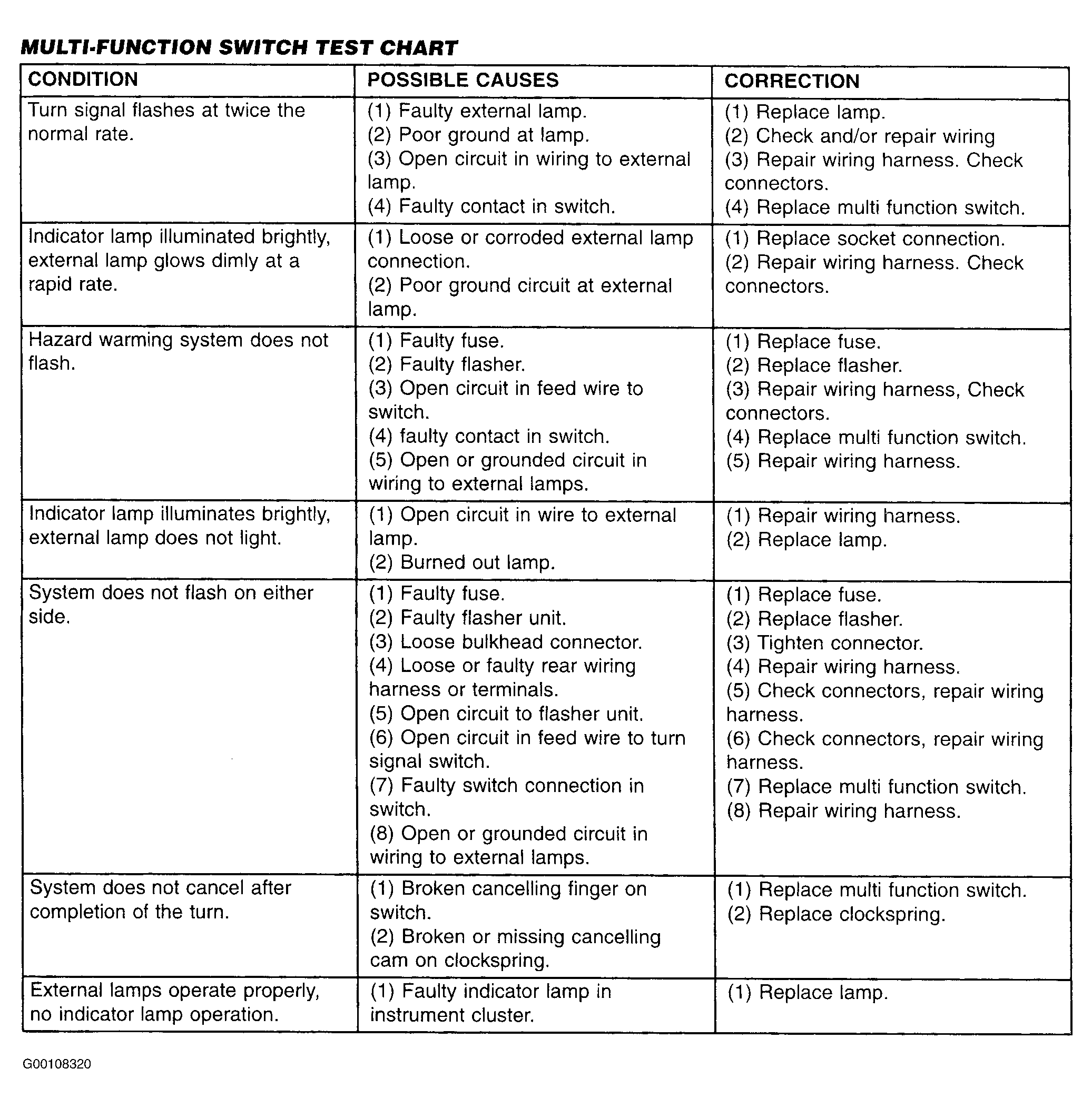

Fig 1: Turn Signal/Hazard Warning Switch Test Chart
Courtesy of CHRYSLER CORP.

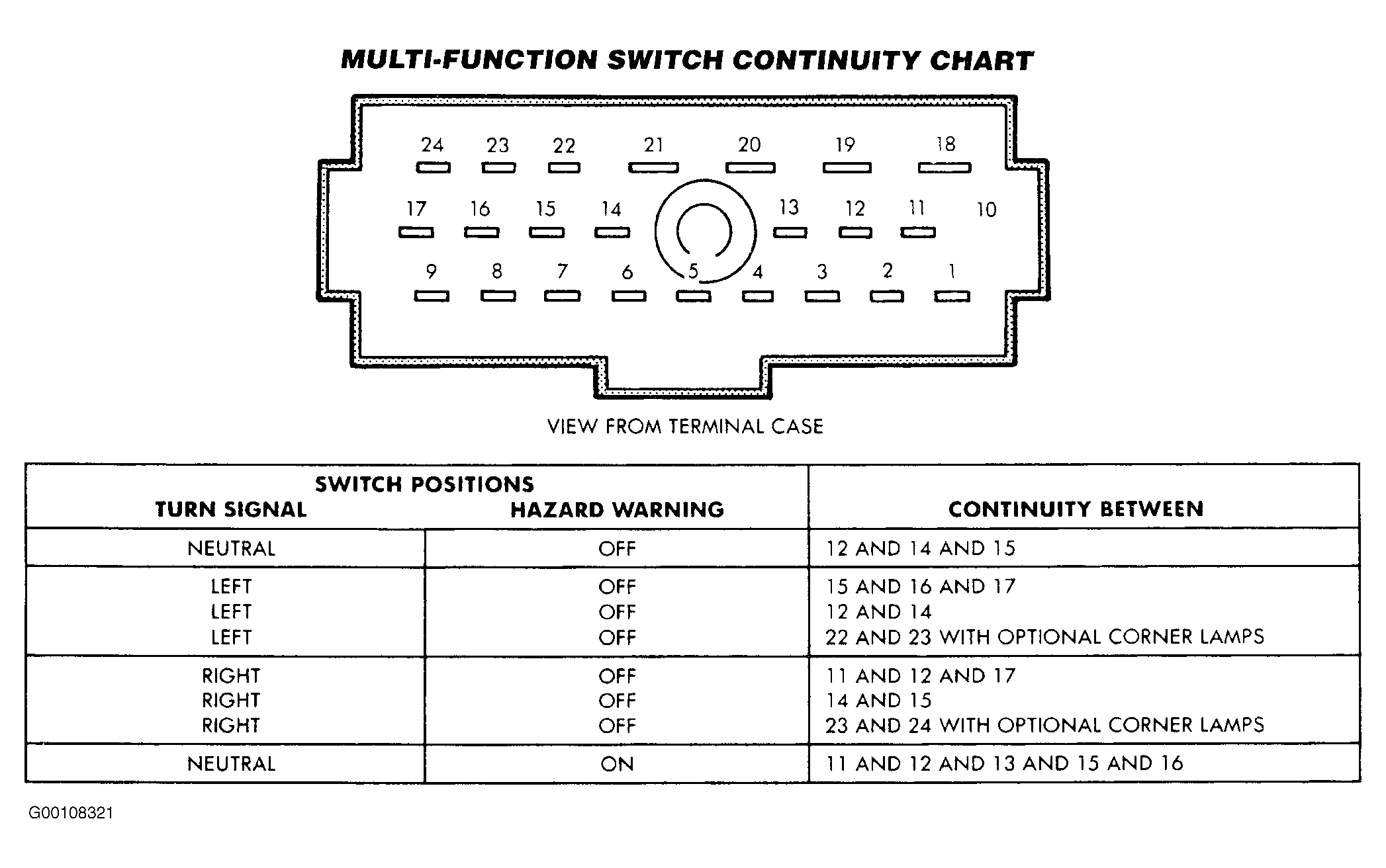

Fig 2: Turn Signal/Hazard Warning Switch Continuity Test
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
