Component Locations

COMPONENT LOCATIONS

Component	Location
Combination Flasher	On Fuse Block Module. See Fig 1
Fuse Block	Left Side Of Steering Column Under Lower Knee Blocker. See Fig 1
Hazard Warning Button	On Top Of Multi-Function Switch. See Fig 2
Horns	Under Front Bumper & Fascia. See Fig 3
Horn Switch	Between Outer & Inner Cover of Driver Airbag Module. See Fig 3
Multi-Function Switch	Between The Steering Column & Instrument Panel On The Steering Column.
Windshield Washer Button	On Muti-Function SwitchFig 2
Windshield Wiper Control	On Muti-Function Switch. See Fig 2
Wiper Control Module	On Top of Passenger Side Toe Box. See Fig 4

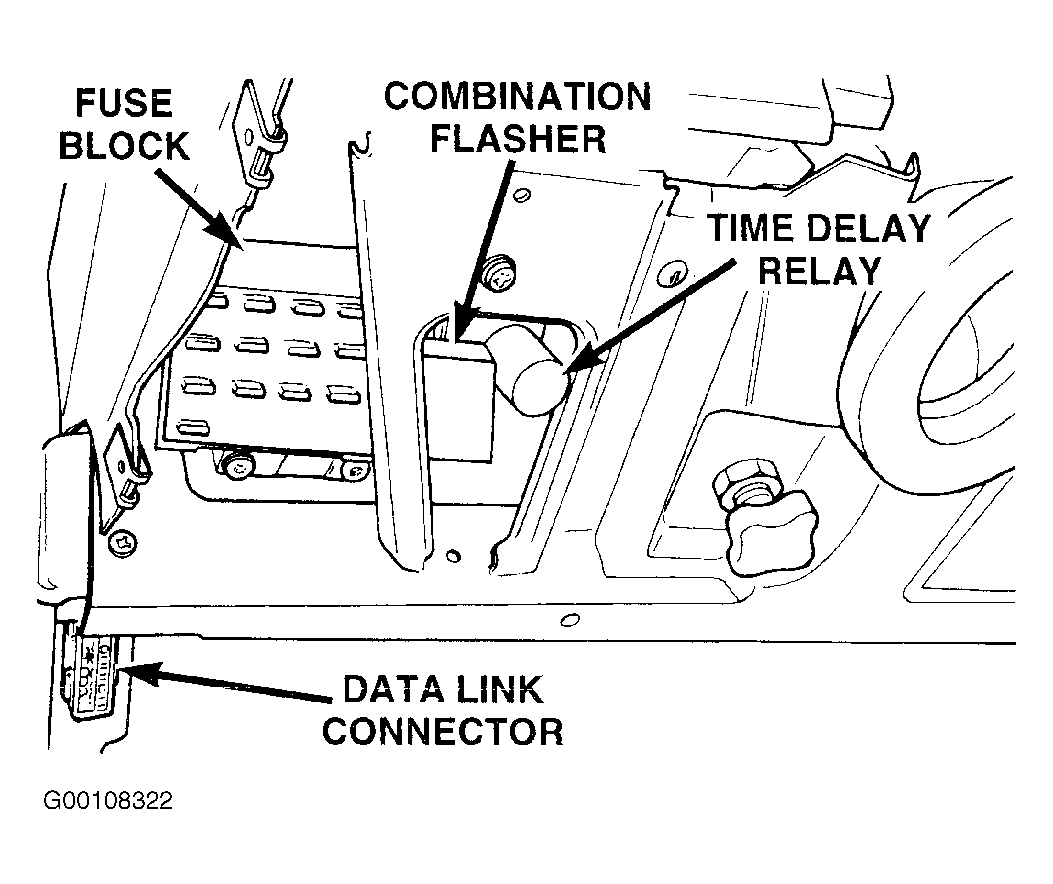

Fig 1: Locating Combination Flasher & Fuse Block

Courtesy of CHRYSLER CORP.

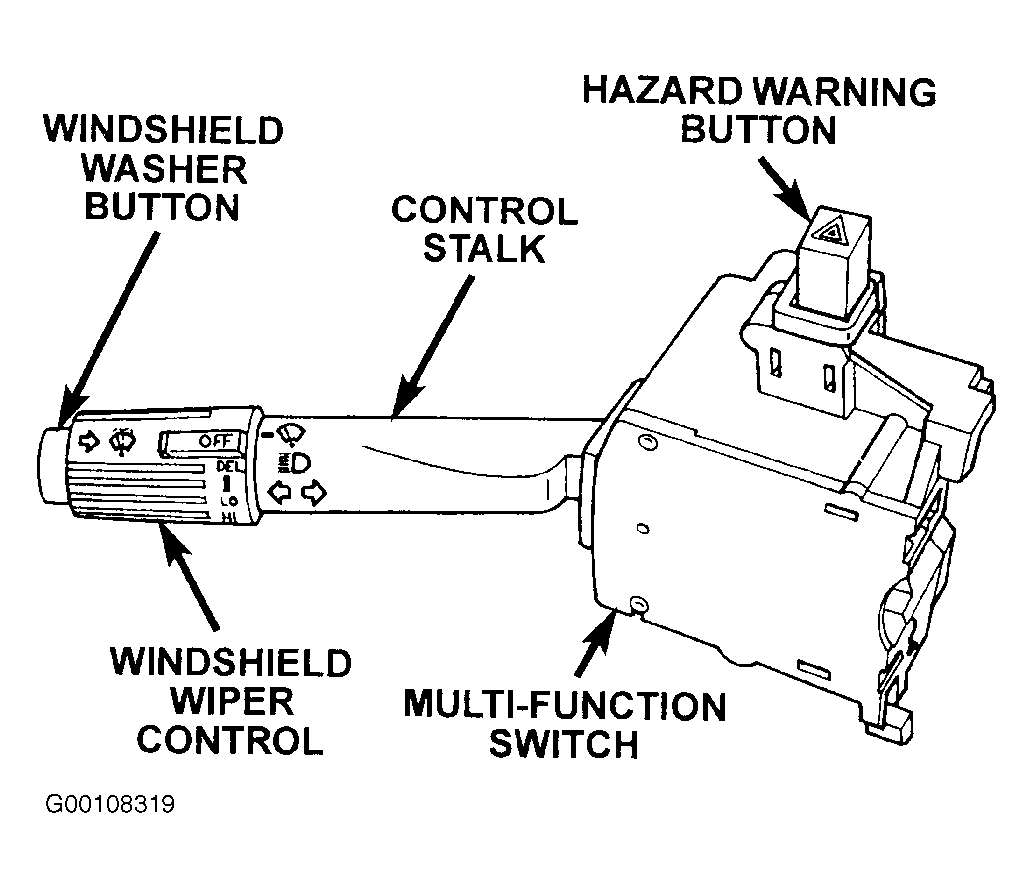

Fig 2: Identifying Muti-Function Switch & Related Components

Courtesy of CHRYSLER CORP.

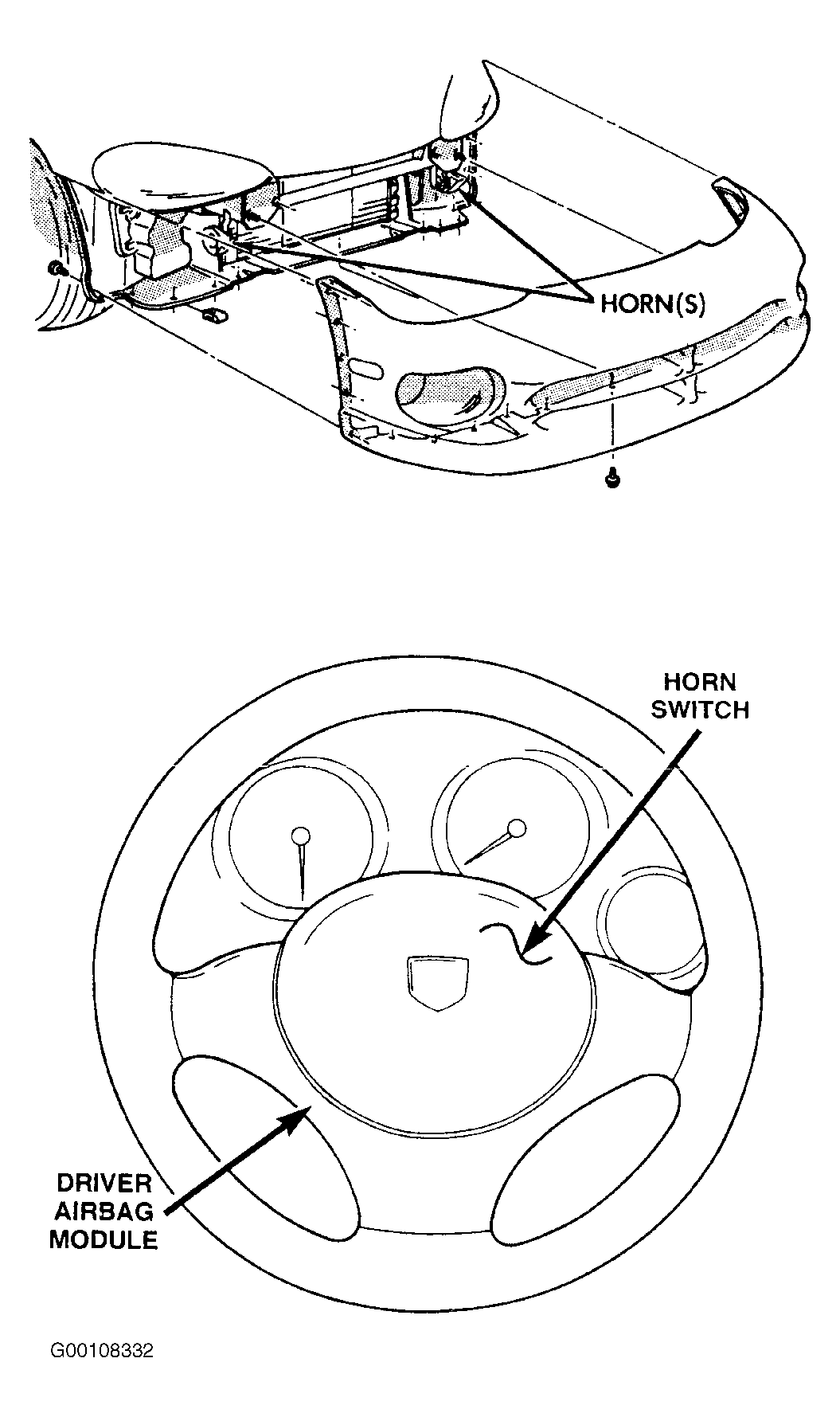

Fig 3: Locating Horn Components

Courtesy of CHRYSLER CORP.

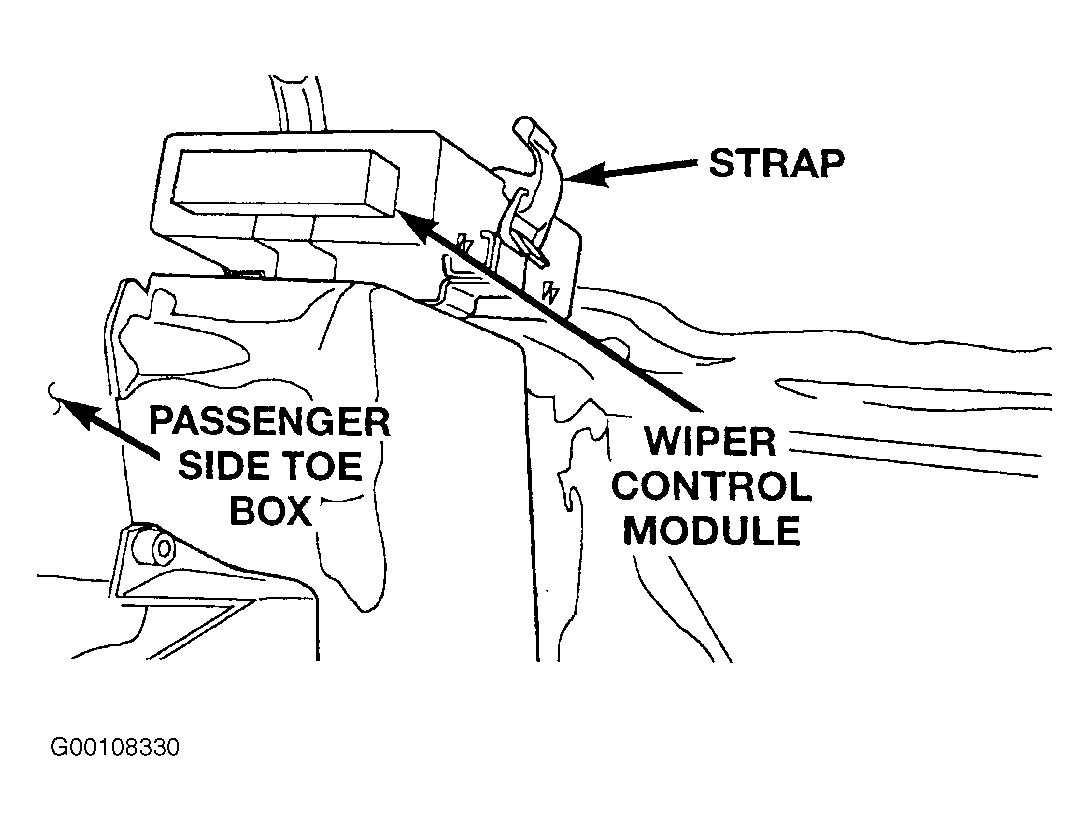

Fig 4: Locating Control Module

Courtesy of CHRYSLER CORP.
