Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

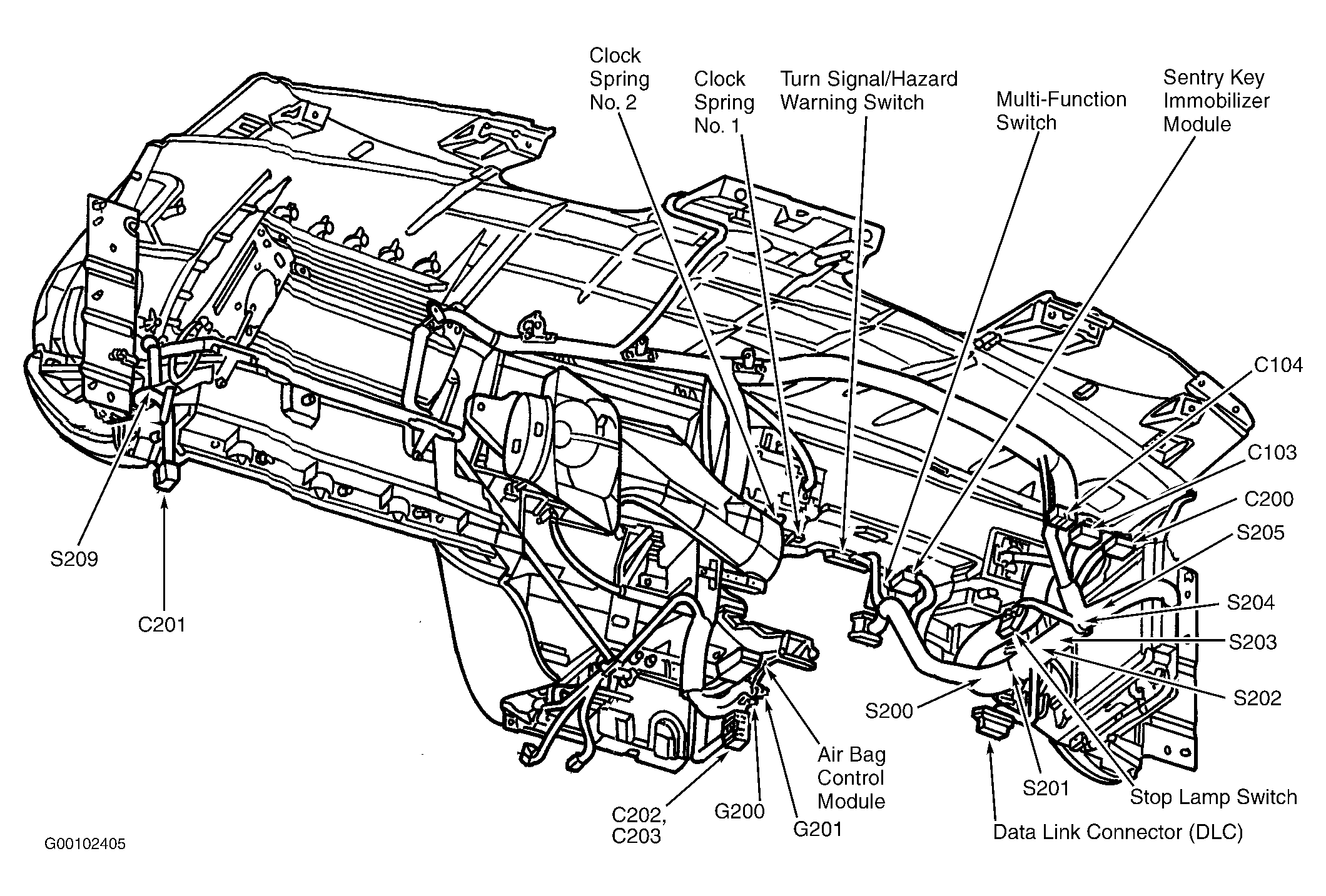

| Air Bag Control Module | On tunnel floor pan, forward of center console. See Figure . |
| Automatic Temperature Control Power Module | On lower right side of HVAC unit housing. |
| Body Control Module | At left end of dash, attached to junction block. |
| Controller Anti-Lock Brake | At left fender side shield, on bottom of hydraulic control unit. |
| Daytime Running Lamp (DRL) Module | On junction block. |
| Powertrain Control Module (PCM) | In left side of engine compartment. See Figure . |
| Rear Window Defogger/Antenna Module | In right "C" pillar, behind trim panel. |
| Sentry Key Immobilizer Module | In steering column. See Figure . |
| Sun Roof Control Module | Above front of headliner. |
| Transmission Control Module | In engine compartment, between left front fender & battery. See Figure . |
