Power Distribution Center

The Power Distribution Center (PDC) is located in the engine compartment, next to battery. The PDC contains fuses and relays, a label which identifies these components is located on the underside of the cover. See Fig 1 -Fig 3 .

Fig 1: Locating Power Distribution Center Fuses & Relays

Courtesy of DAIMLERCHRYSLER CORP.

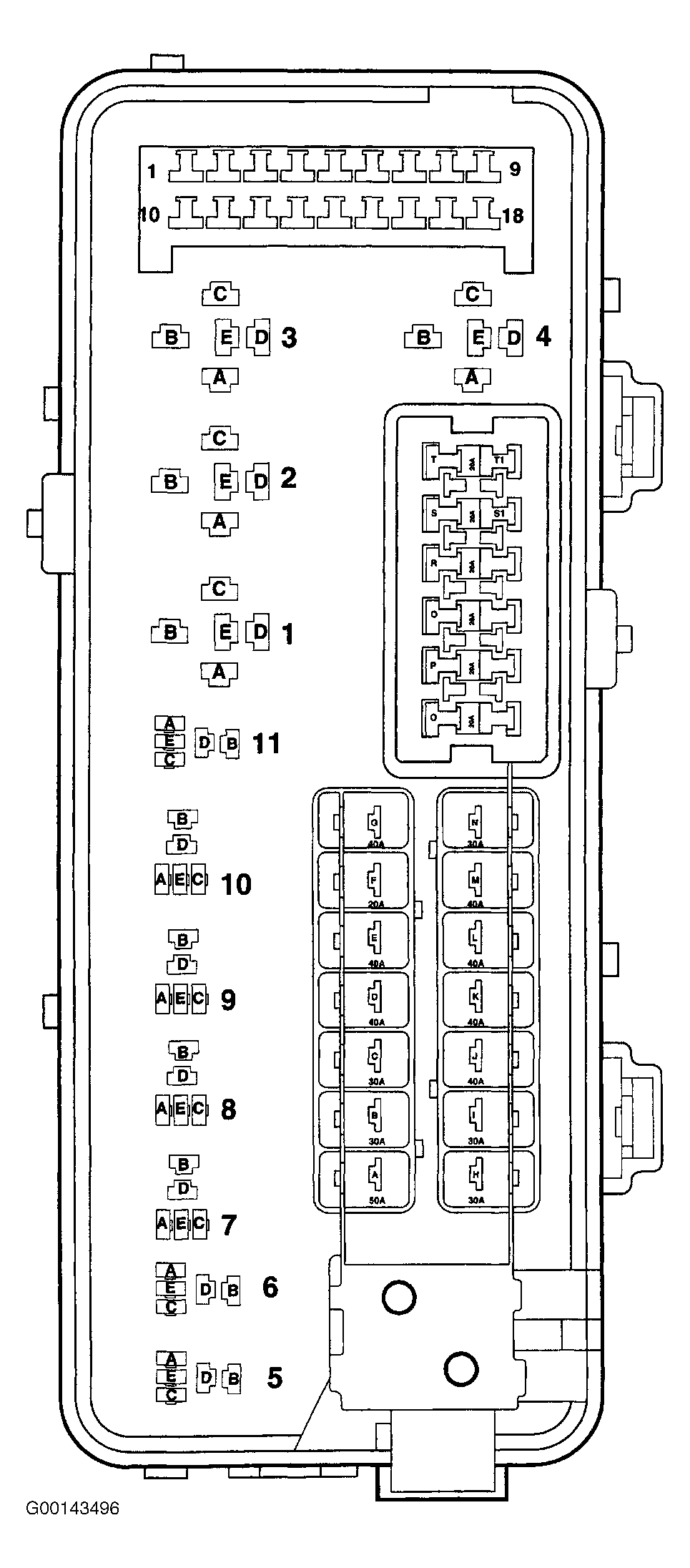

Fig 2: Identifying Location Of Power Distribution Center Fuses & Relays

Courtesy of CHRYSLER CORP.

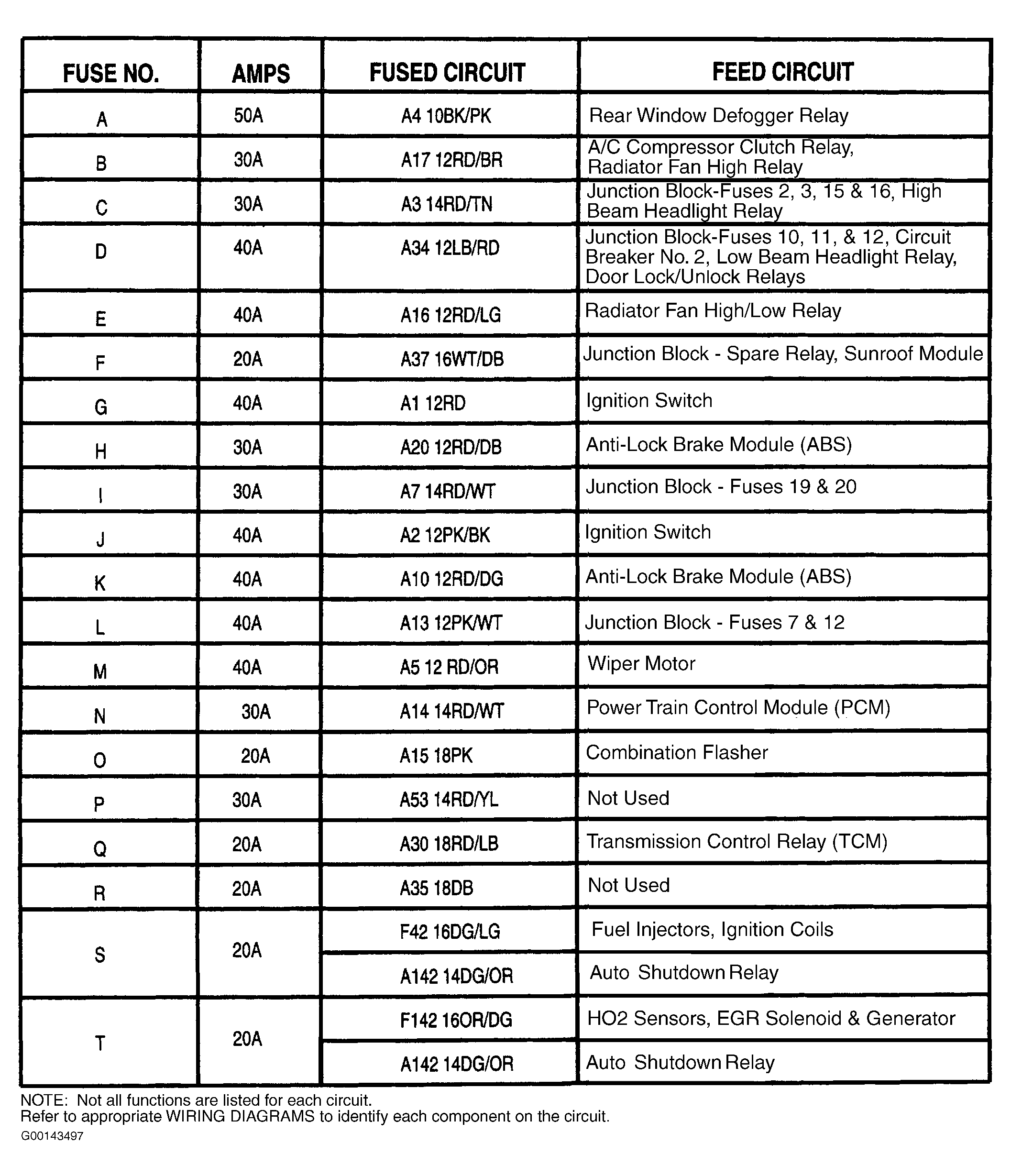

Fig 3: Identifying Power Distribution Center Fuse Amperage & Circuits

Courtesy of CHRYSLER CORP.
