Fuse Replacement

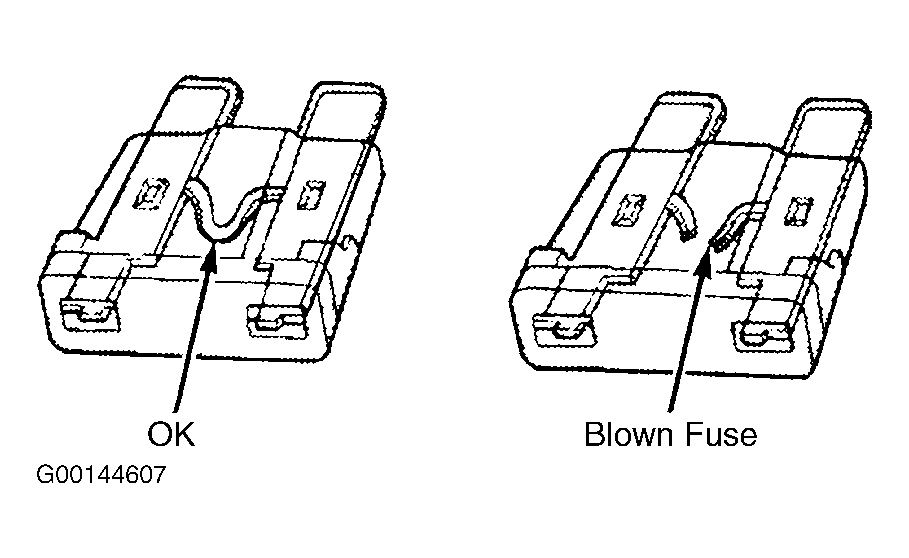

- Before replacing a fuse, always turn off the electrical item concerned. To identify a blown fuse, see Fig 1
. Turn the ignition key to the "LOCK" position.
- Open the fuse cover.
- Referring to the fuse load capacity table, check the fuse pertaining to the problem. See FUSE COLOR CODE IDENTIFICATION

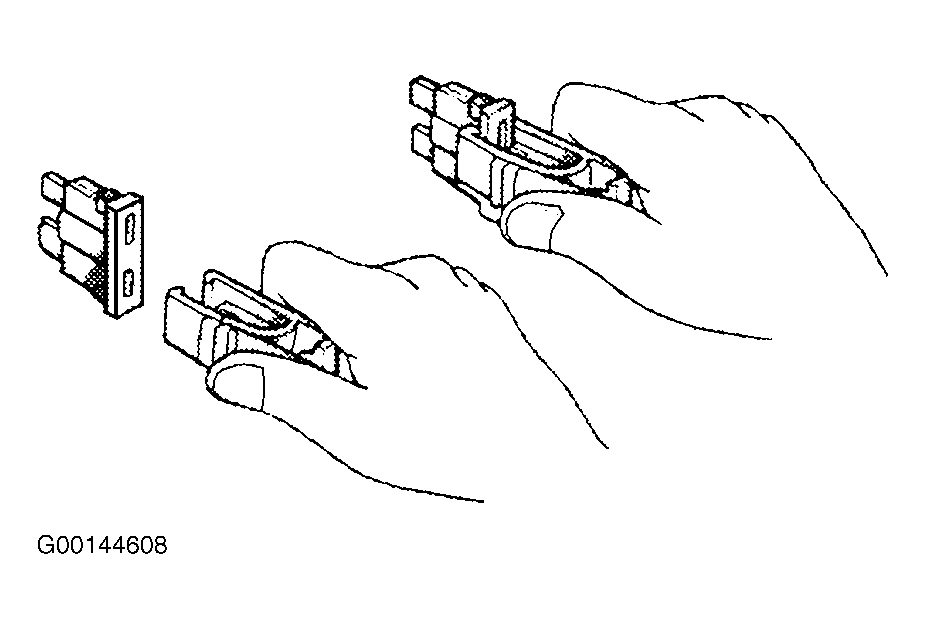

- A fuse puller is in the fuse block inside the car. First, pull the fuse puller out of the fuse block. See Fig 2
. Then, using the fuse puller, pull the fuse straight out from the fuse block. If the fuse is not blown, something else must be causing the problem.
- Insert a new fuse of the correct amperage rating securely into the clip.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
