Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Circuit Breakers | On junction block. |
| Dedicated Fuses | In power distribution center or relay & fuse block. |

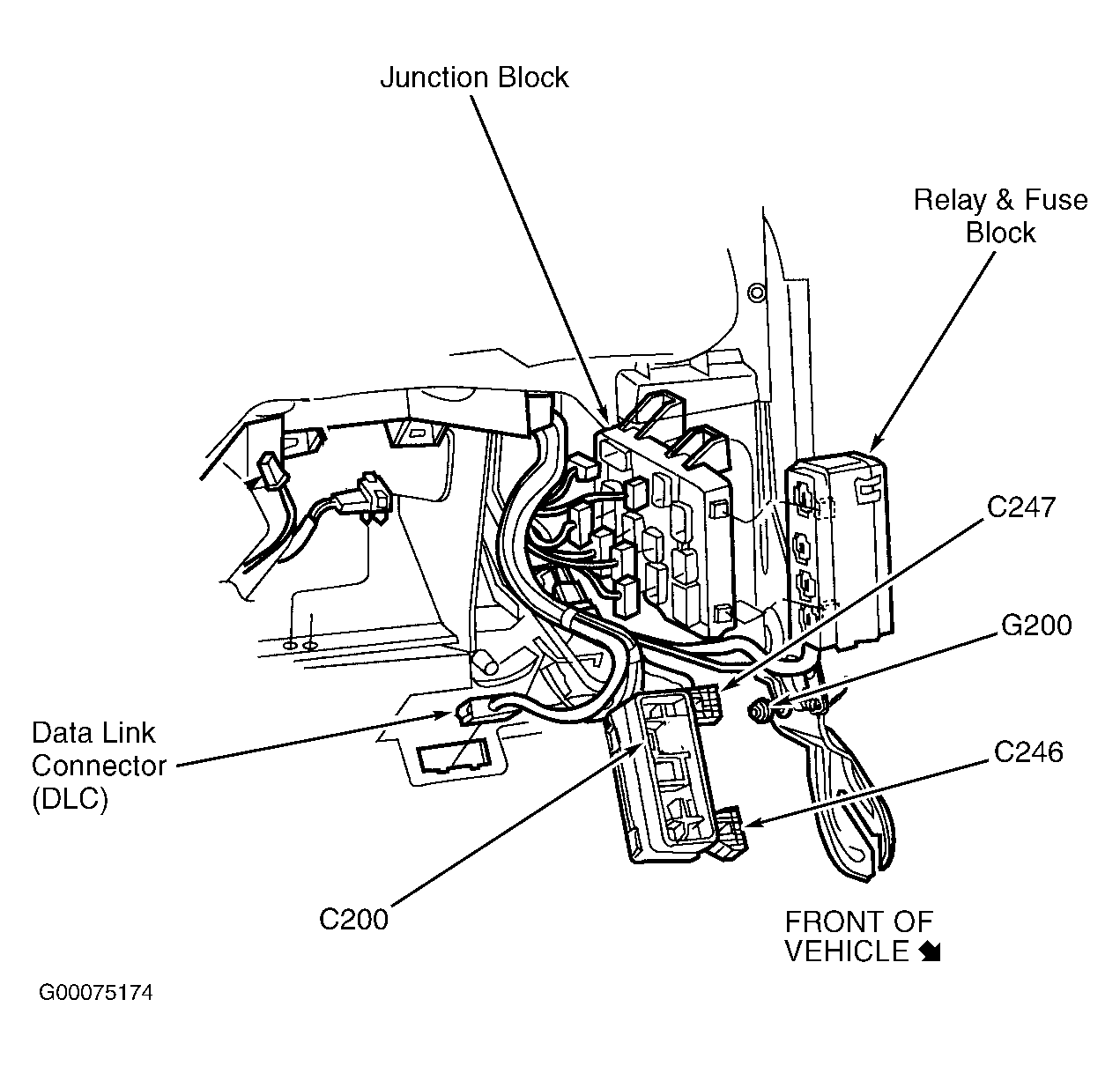

| Junction Block | On left end of dash. See Figure . |
| Multi-Purpose Fuses | On junction block, on left end of dash. |
| Power Distribution Center | On left front inner fender. See Figure . |
| Relay & Fuse Block | Behind left side of dash, attached to junction block. See Figure . |
