RESUME/CANCEL/DECEL Switch

  1. Remove speed control RESUME/CANCEL/DECEL switch assembly. See SPEED CONTROL SWITCHES  under REMOVAL & INSTALLATION. Disconnect 2-pin switch connector. Using an ohmmeter, check resistance between switch pins. See Fig 1. No continuity should be present.
  2. With ohmmeter leads in same position, press RESUME/ACCEL button. Ohmmeter should indicate 15,246-15,554 ohms. Press CANCEL button. Ohmmeter should indicate 899-919 ohms. Press DECEL button. Ohmmeter should indicate 2910-2970 ohms. If resistance is not as specified, replace RESUME/CANCEL/DECEL switch assembly.

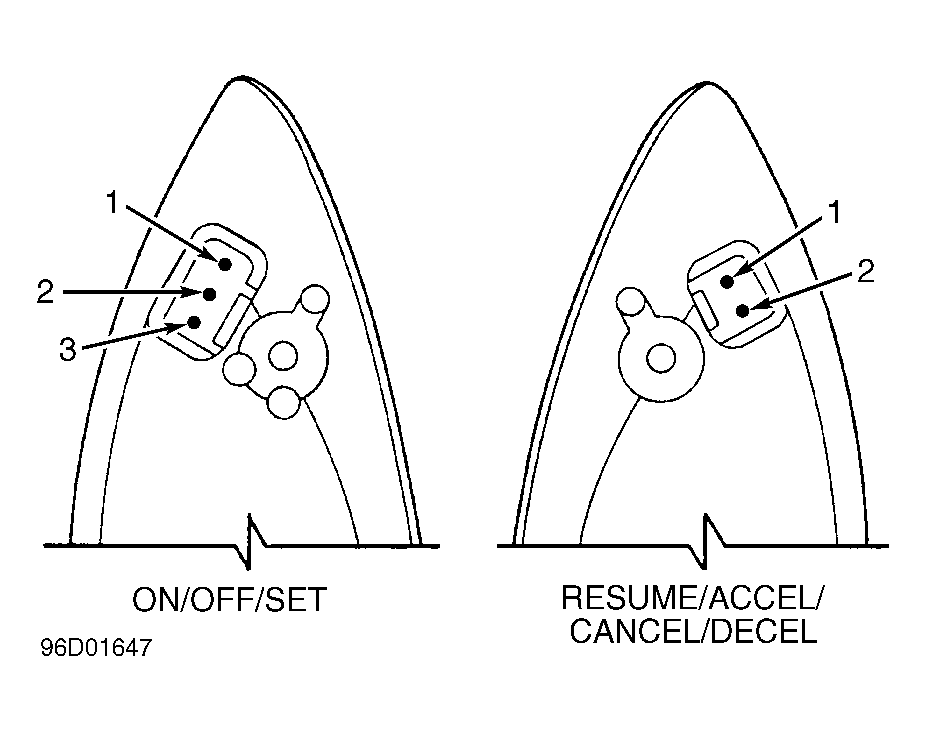

Fig 1: Speed (Cruise) Control Switch Terminals
G96D01647Courtesy of CHRYSLER CORP.
