TC-40A: No Crank Reference Signal At Pcm

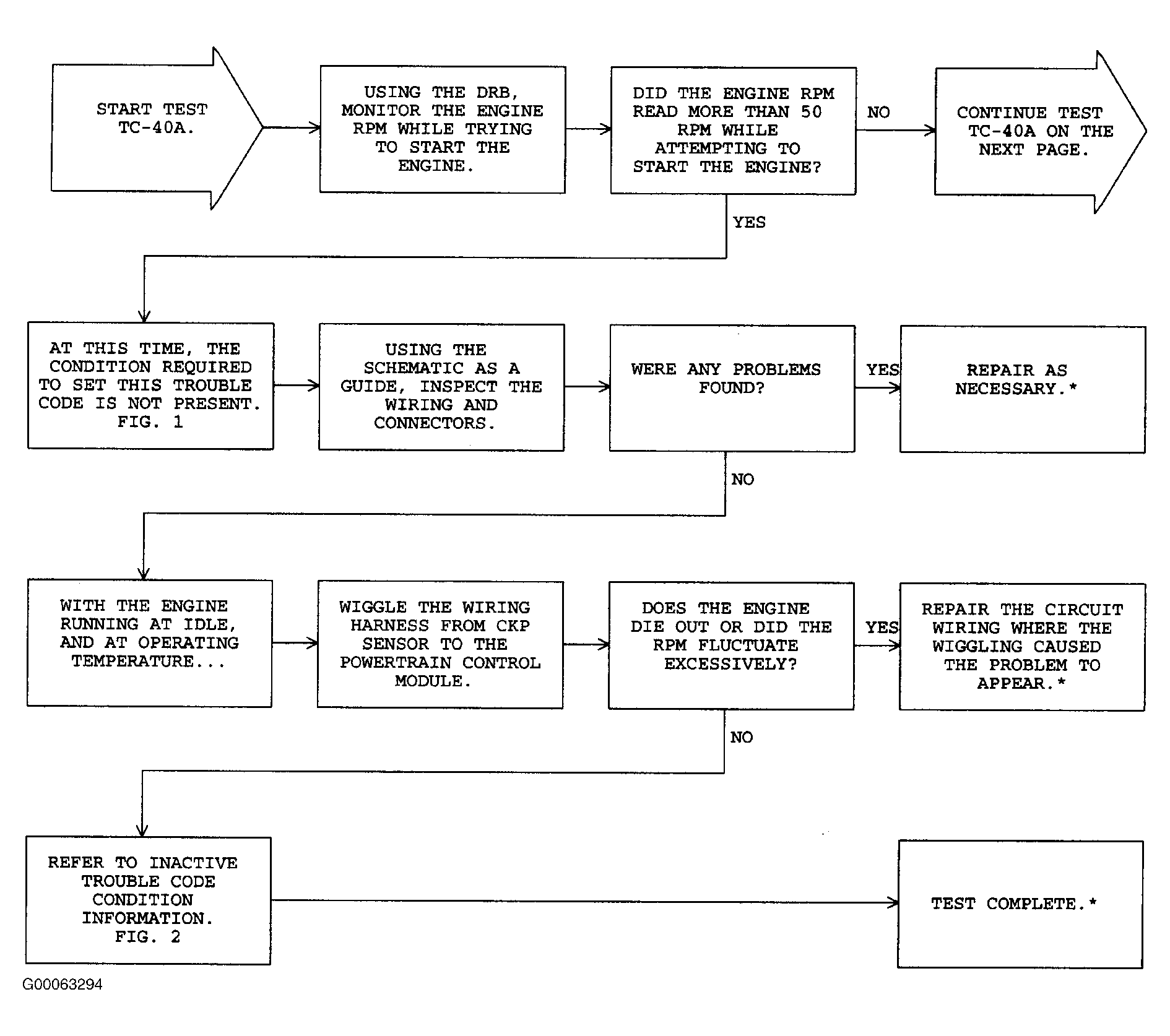

Fig 1: TC-40A: No Crank Reference Signal At PCM (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

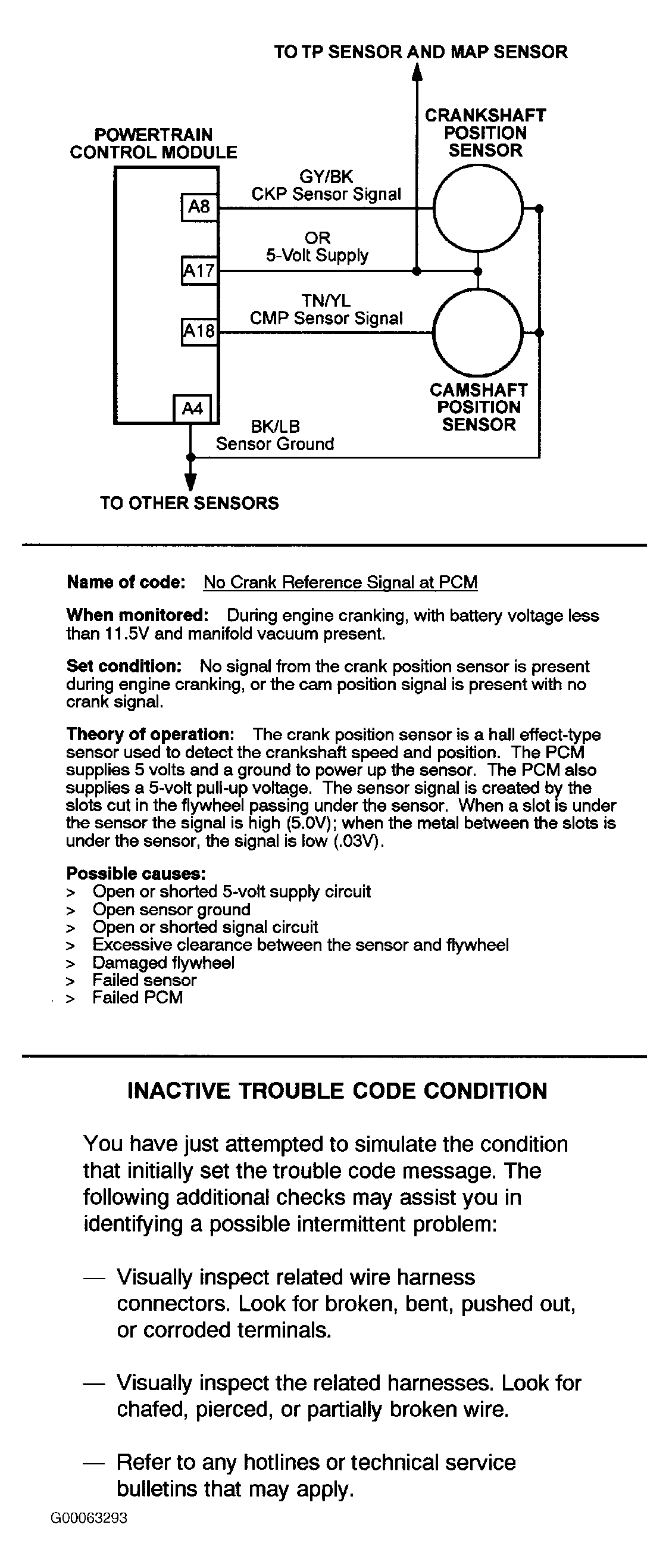

Fig 2: TC-40A: No Crank Reference Signal At PCM (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

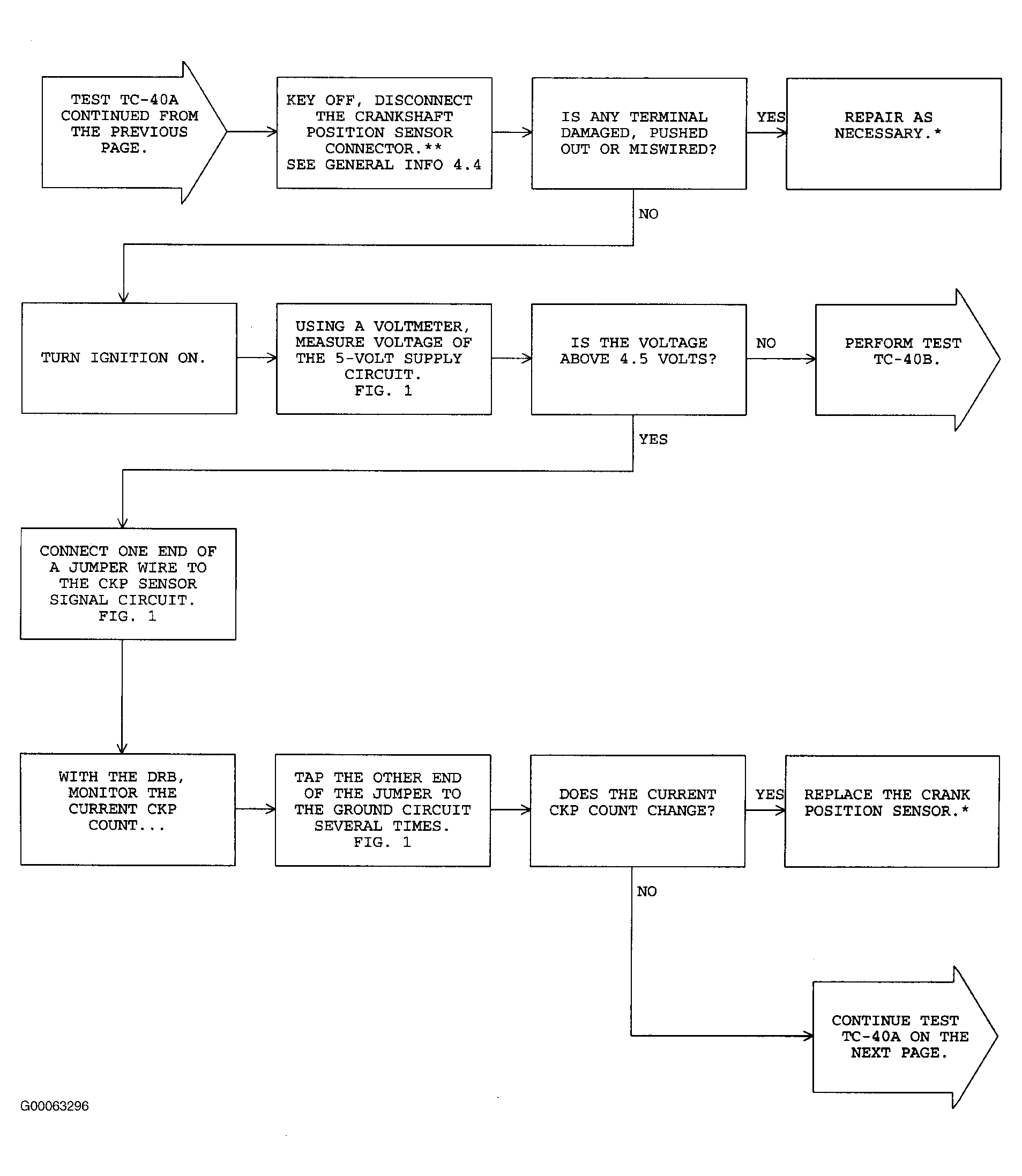

Fig 3: TC-40A: No Crank Reference Signal At PCM (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

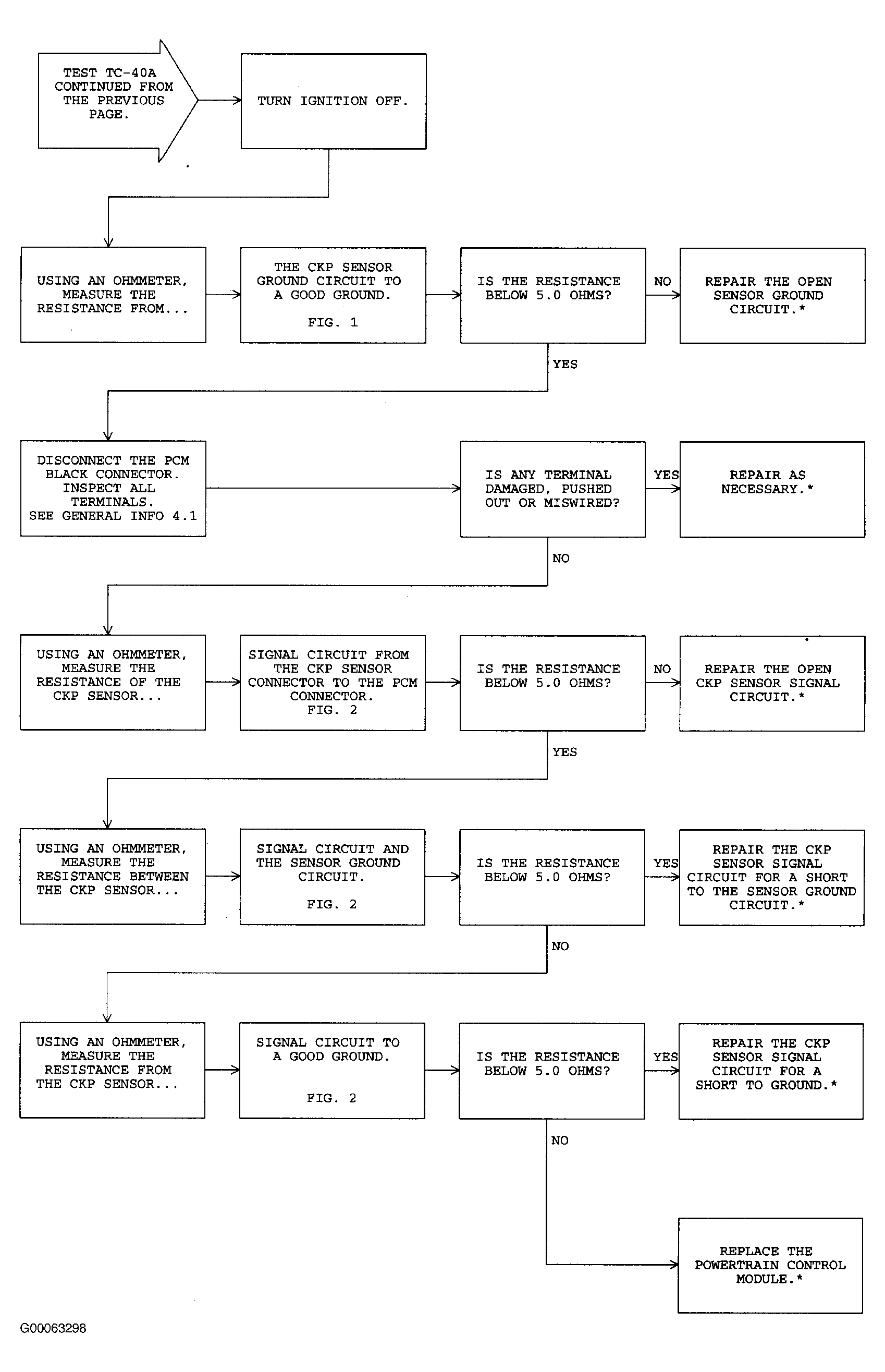

Fig 4: TC-40A: No Crank Reference Signal At PCM (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

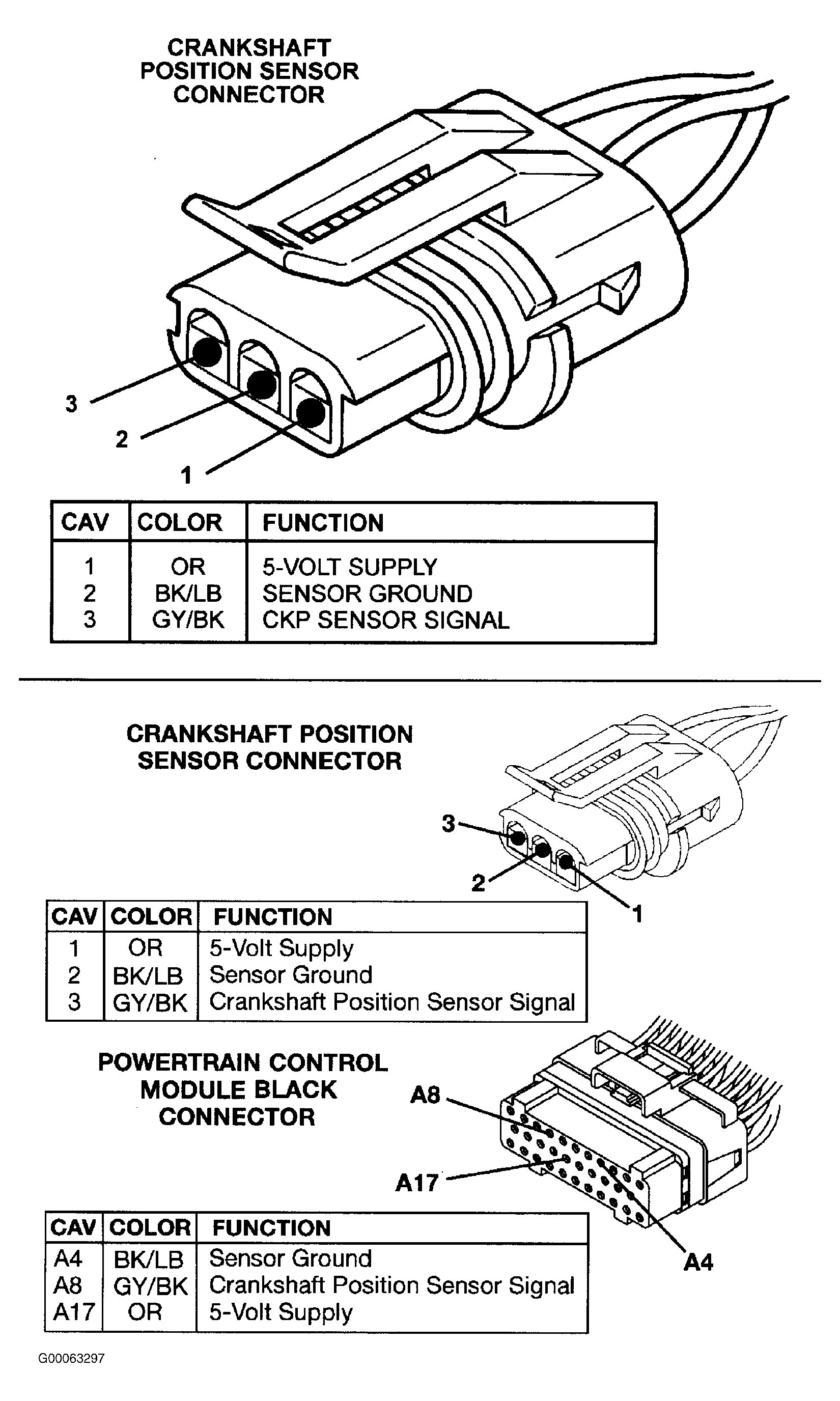

Fig 5: TC-40A: No Crank Reference Signal At PCM (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

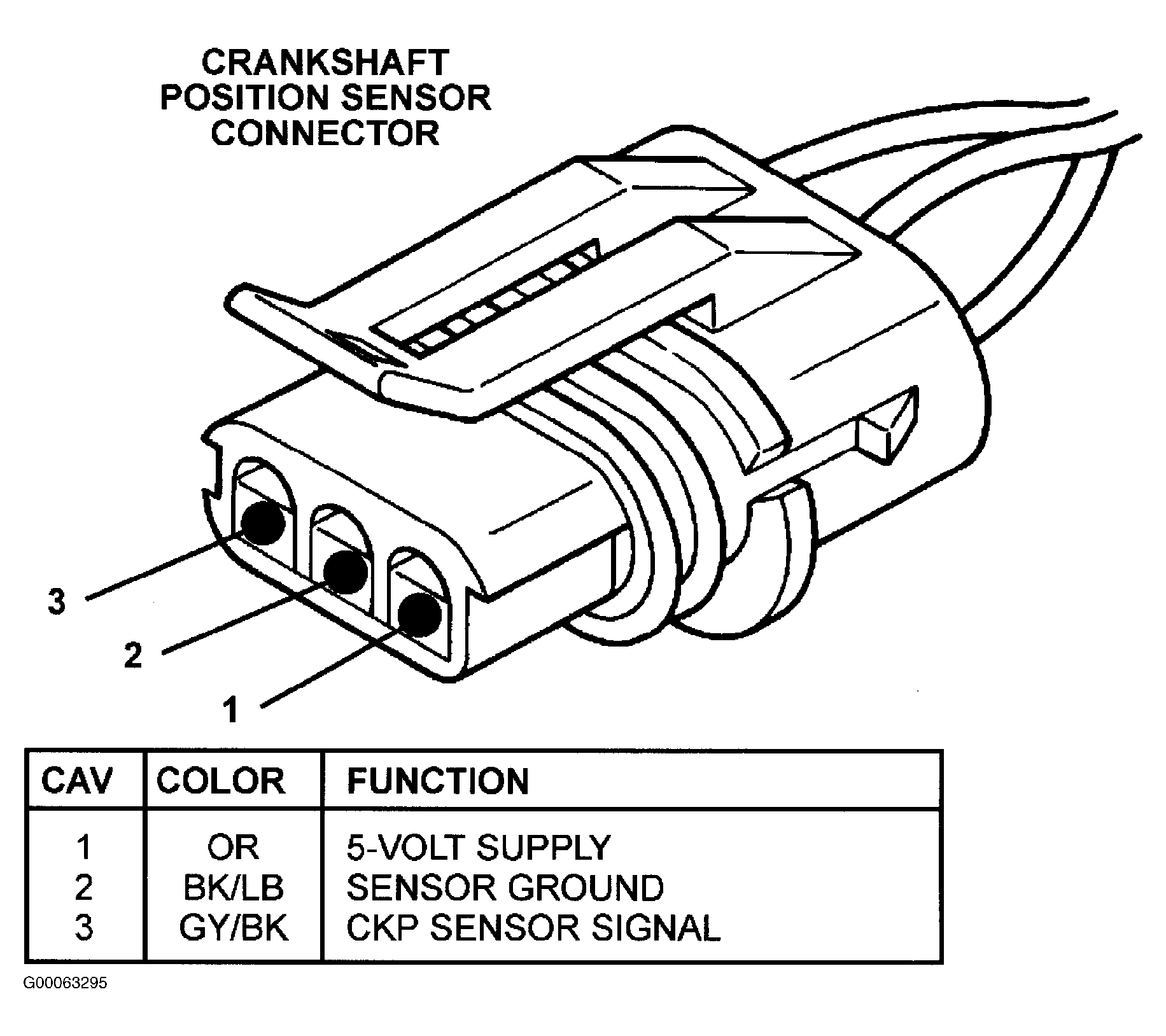

Fig 6: TC-40A: No Crank Reference Signal At PCM (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
