TC-196A: Reverse Gear Lock-Out Circuit Open Or Short

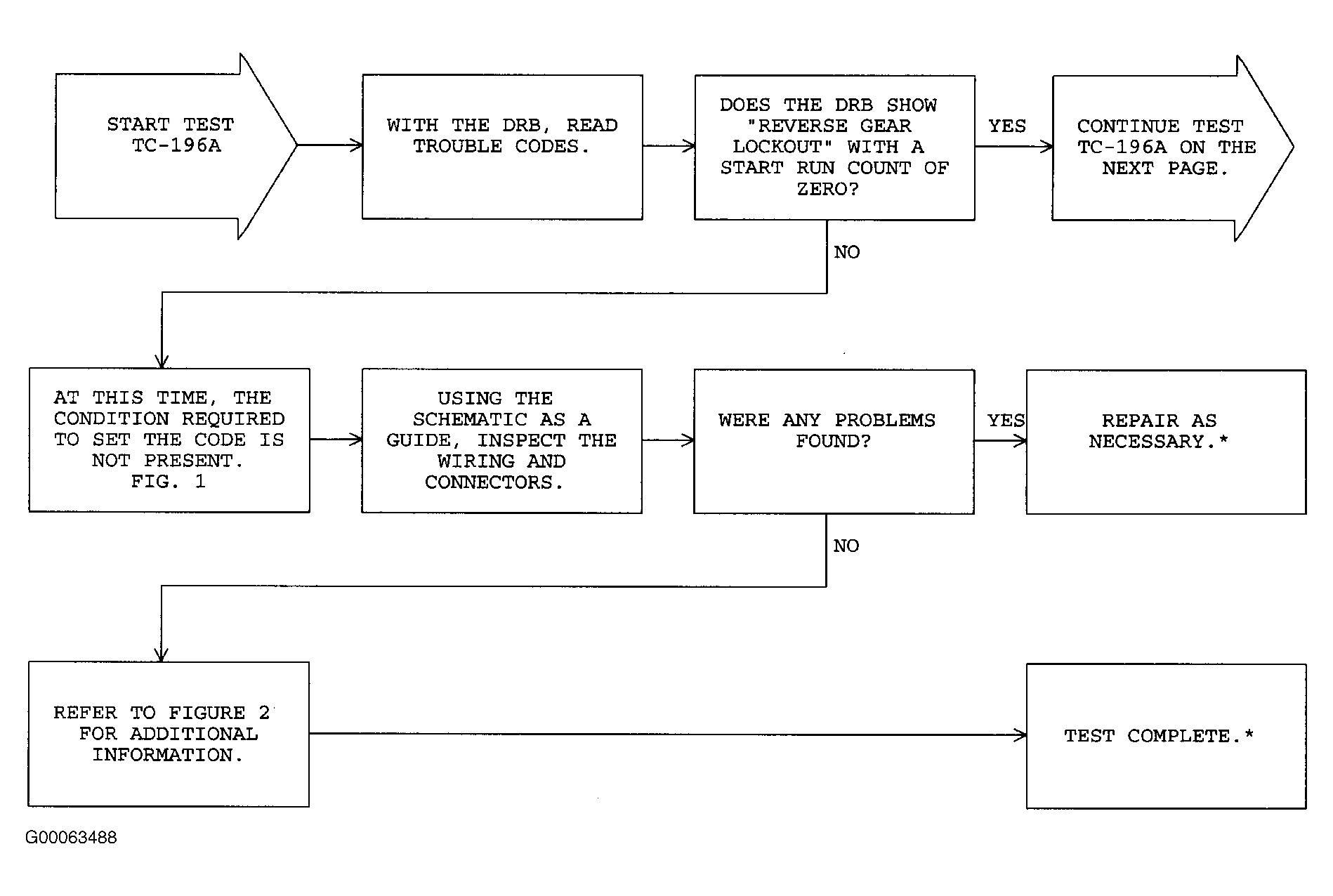

Fig 1: TC-196A: Reverse Gear Lock-Out Circuit Open Or Short (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

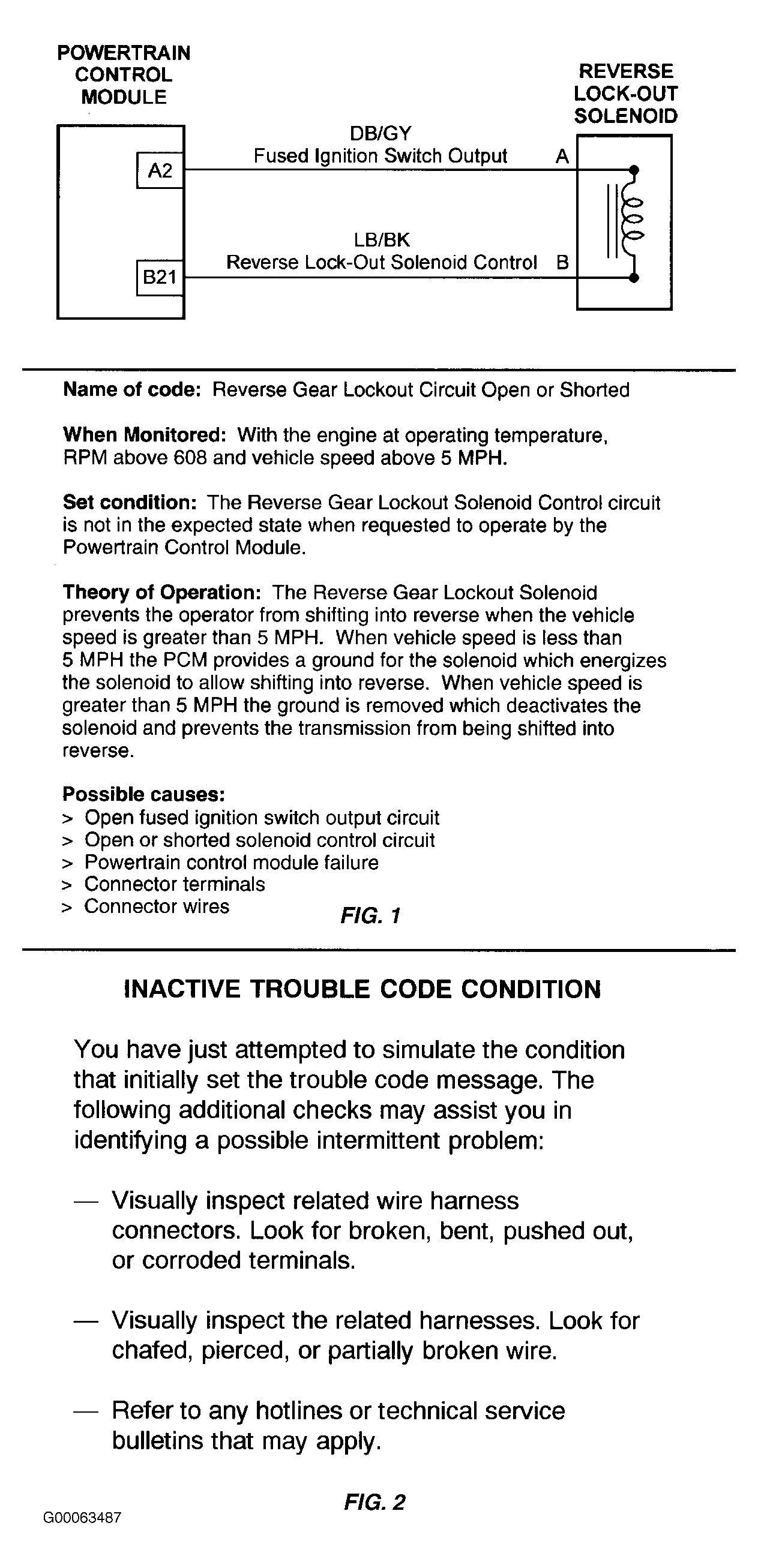

Fig 2: TC-196A: Reverse Gear Lock-Out Circuit Open Or Short (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

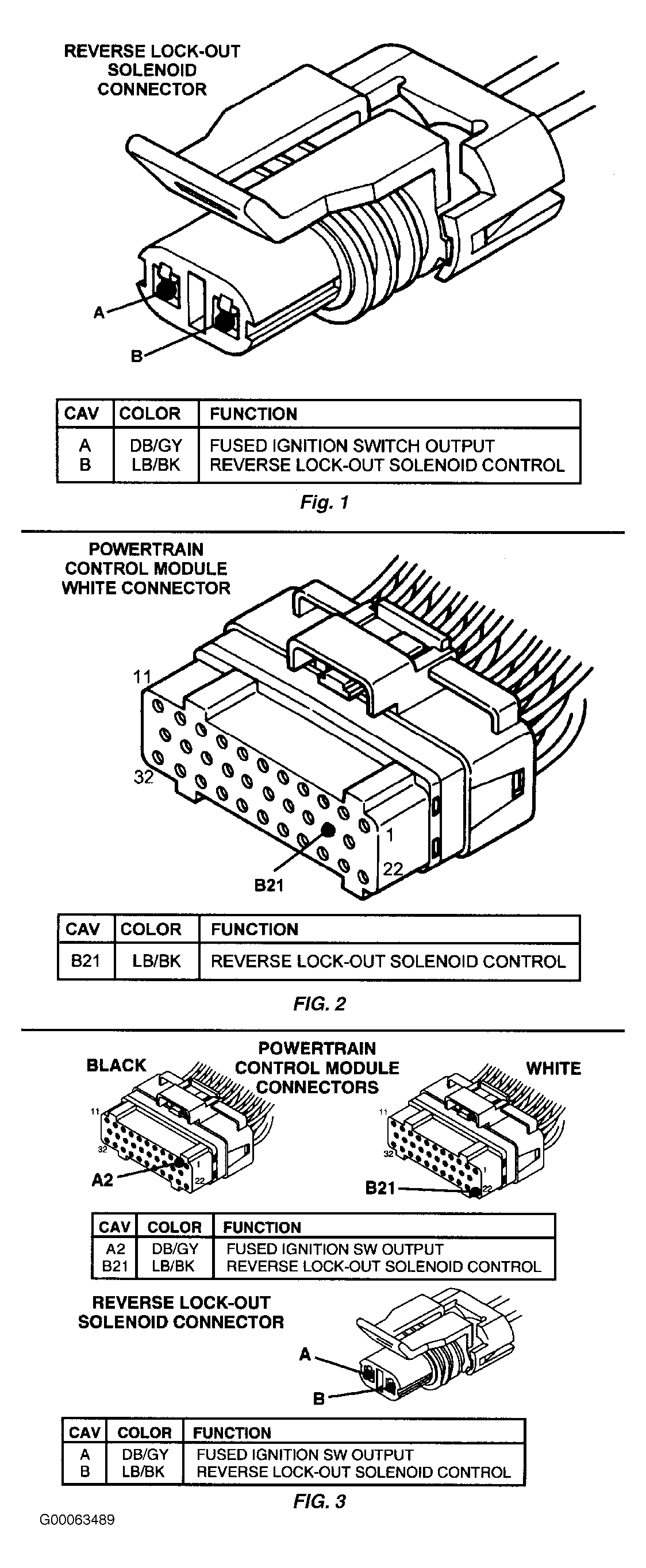

Fig 3: TC-196A: Reverse Gear Lock-Out Circuit Open Or Short (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

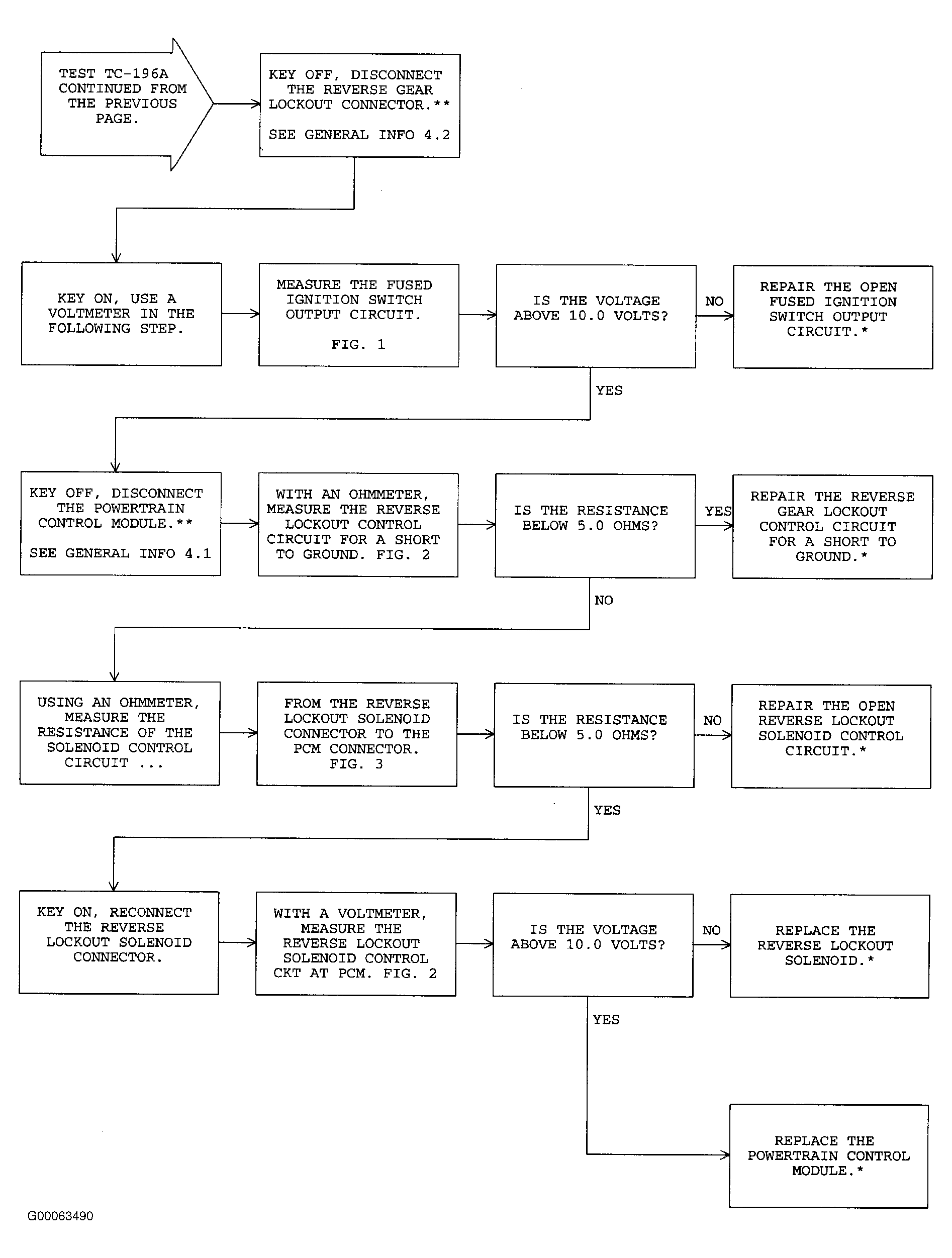

Fig 4: TC-196A: Reverse Gear Lock-Out Circuit Open Or Short (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
