NTC-22A: Checking Tachometer

NOTE: Perform Test NTC-1A Before Proceeding

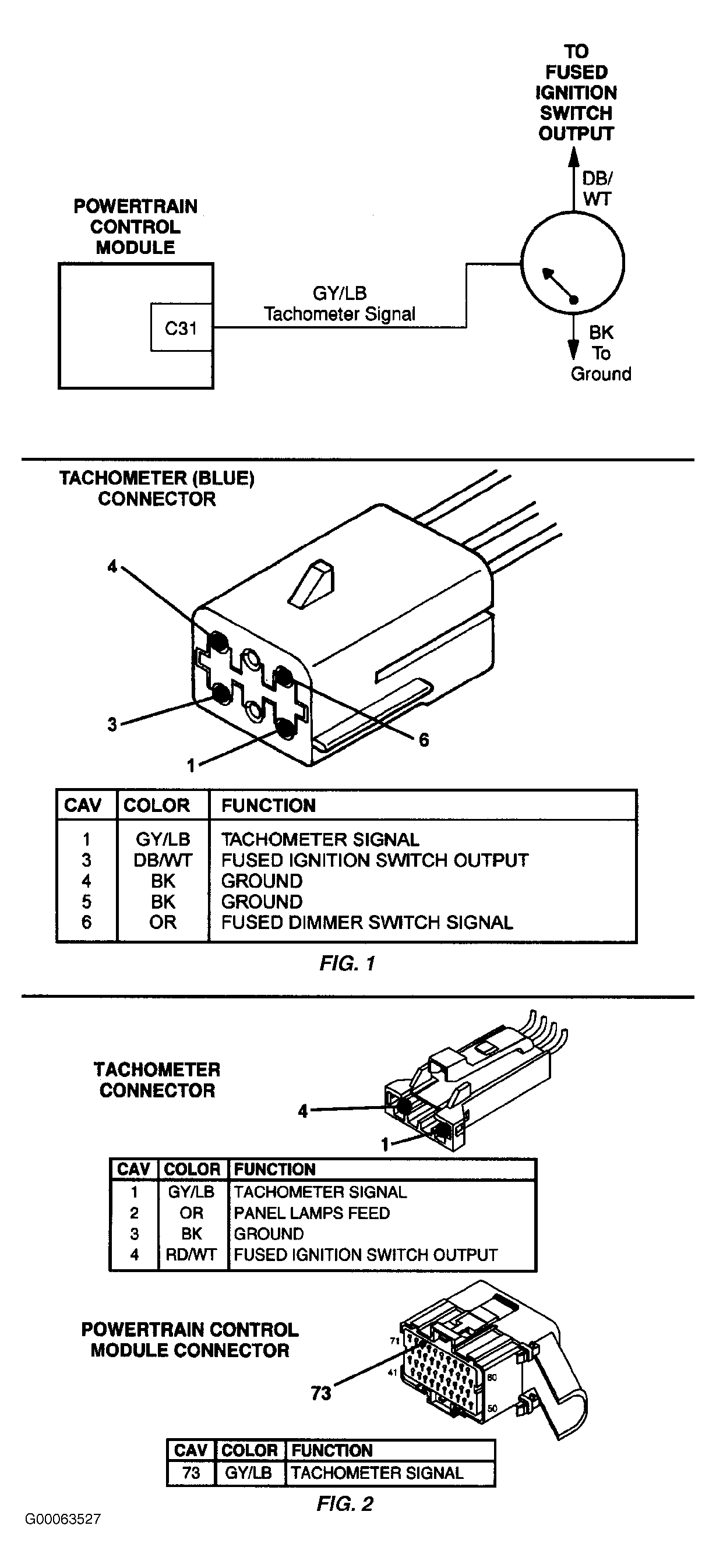

Fig 1: NTC-22A: Checking Tachometer (1 Of 2)
G00063527Courtesy of DAIMLERCHRYSLER CORPORATION

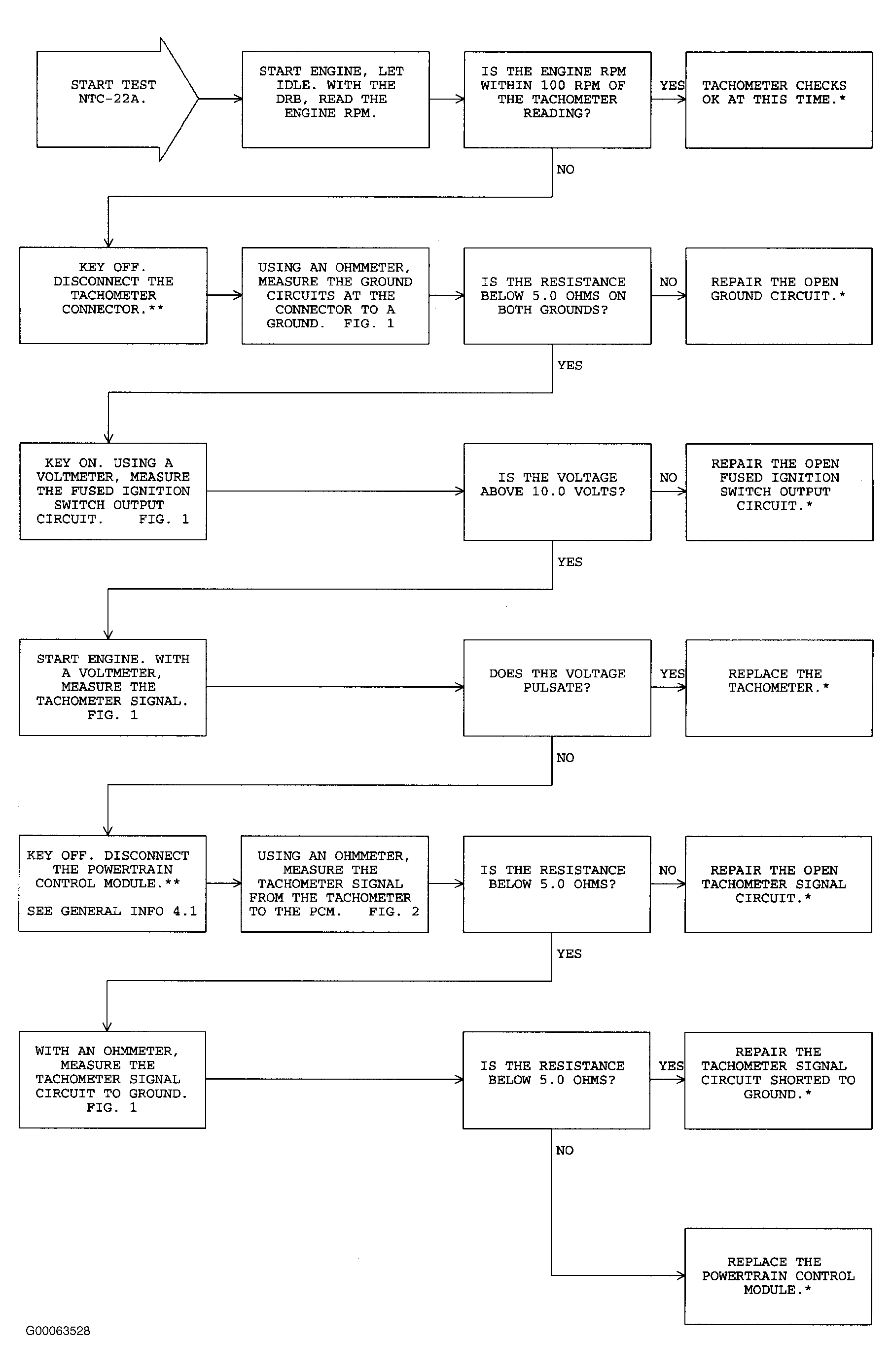

Fig 2: NTC-22A: Checking Tachometer (2 Of 2)
G00063528Courtesy of DAIMLERCHRYSLER CORPORATION
