Home >> Dodge and Ram >> 1997 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> No Start Tests >> NS-4A: Repairing Low Fuel Pressure

NS-4A: Repairing Low Fuel Pressure

NOTE: Perform Test NS-1A Before Proceeding

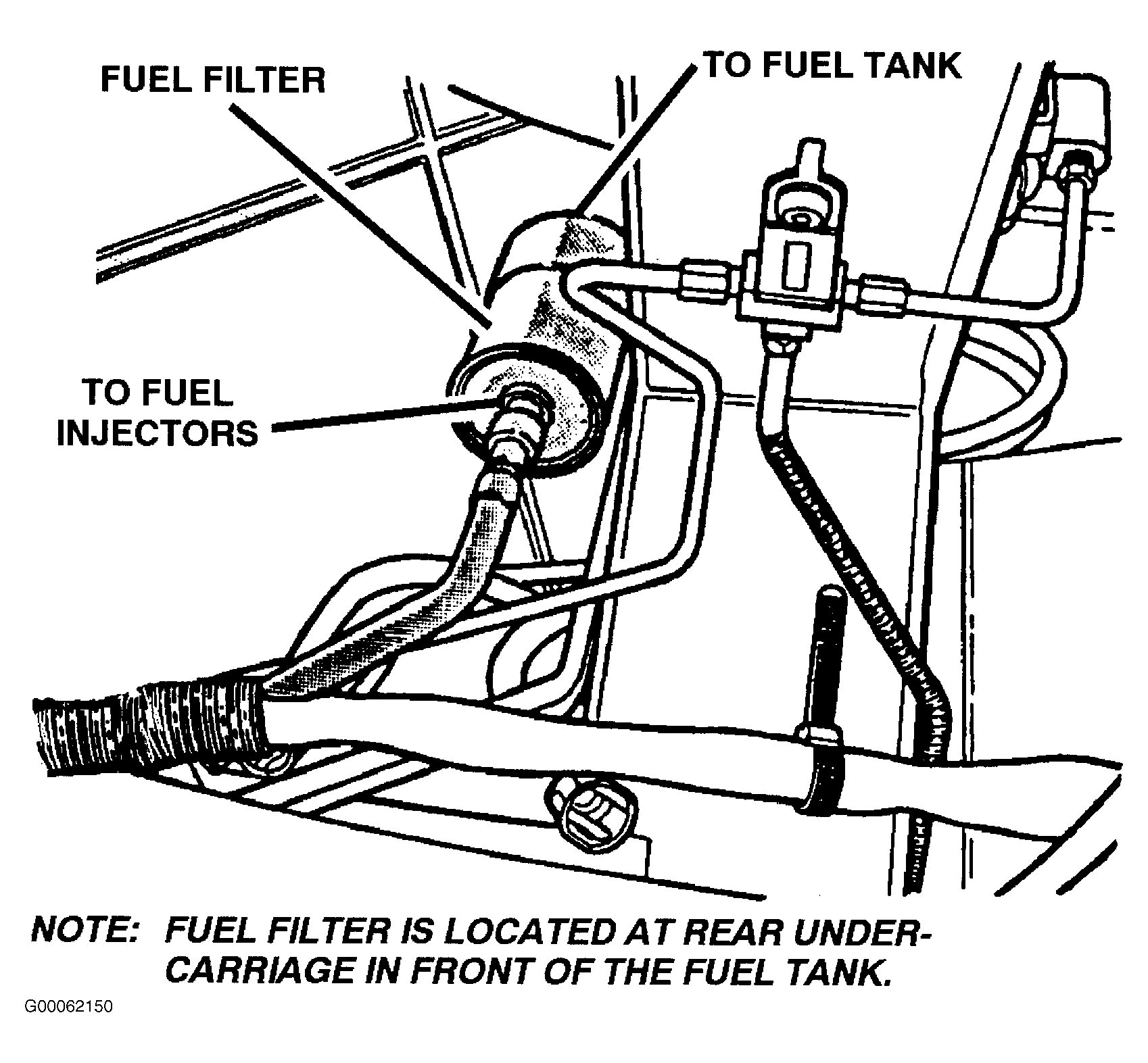

Fig 1: NS-4A: Repairing Low Fuel Pressure (1 Of 2)
G00062150Courtesy of DAIMLERCHRYSLER CORPORATION

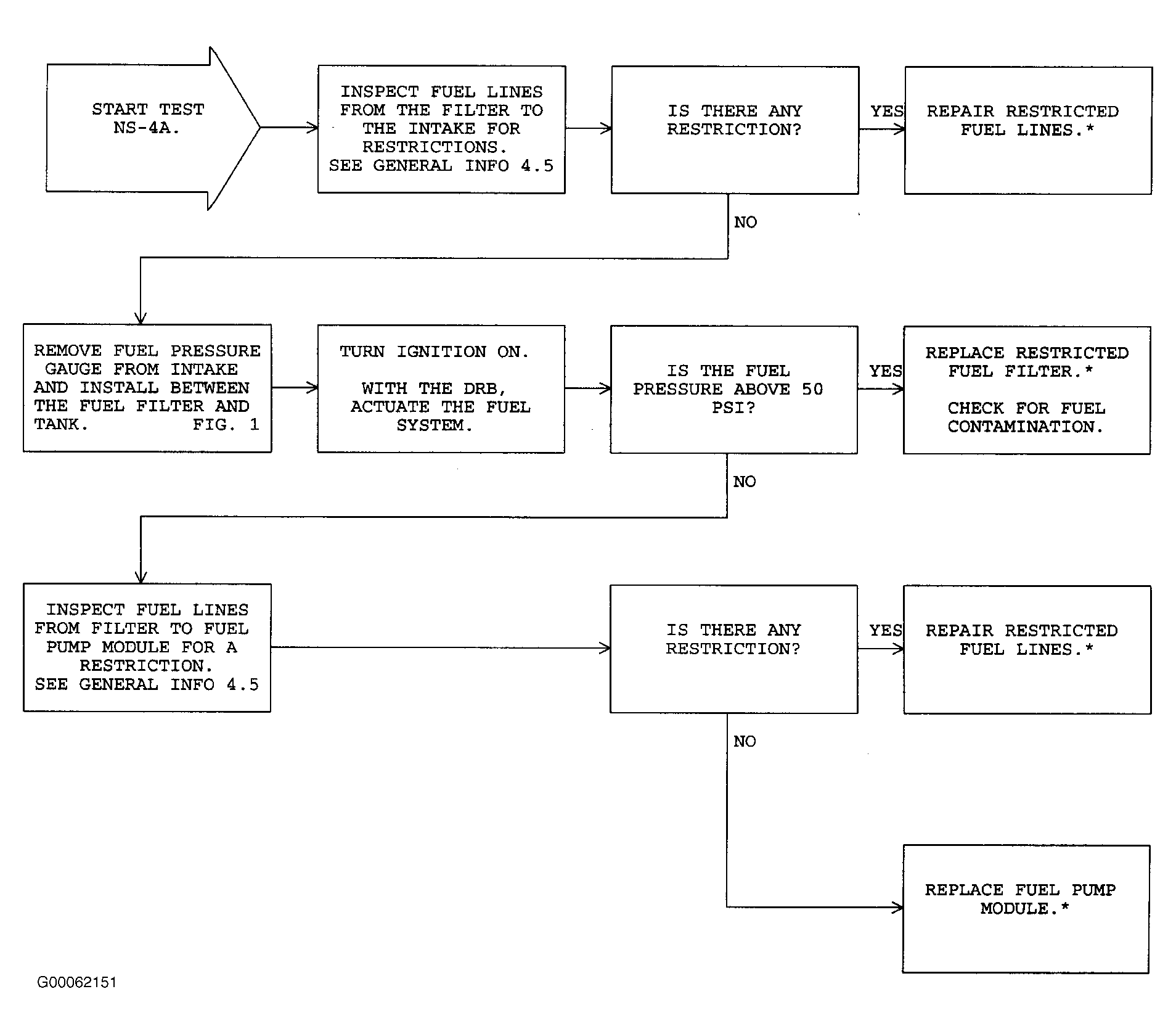

Fig 2: NS-4A: Repairing Low Fuel Pressure (2 Of 2)
G00062151Courtesy of DAIMLERCHRYSLER CORPORATION
