Power Window Motor: Installation

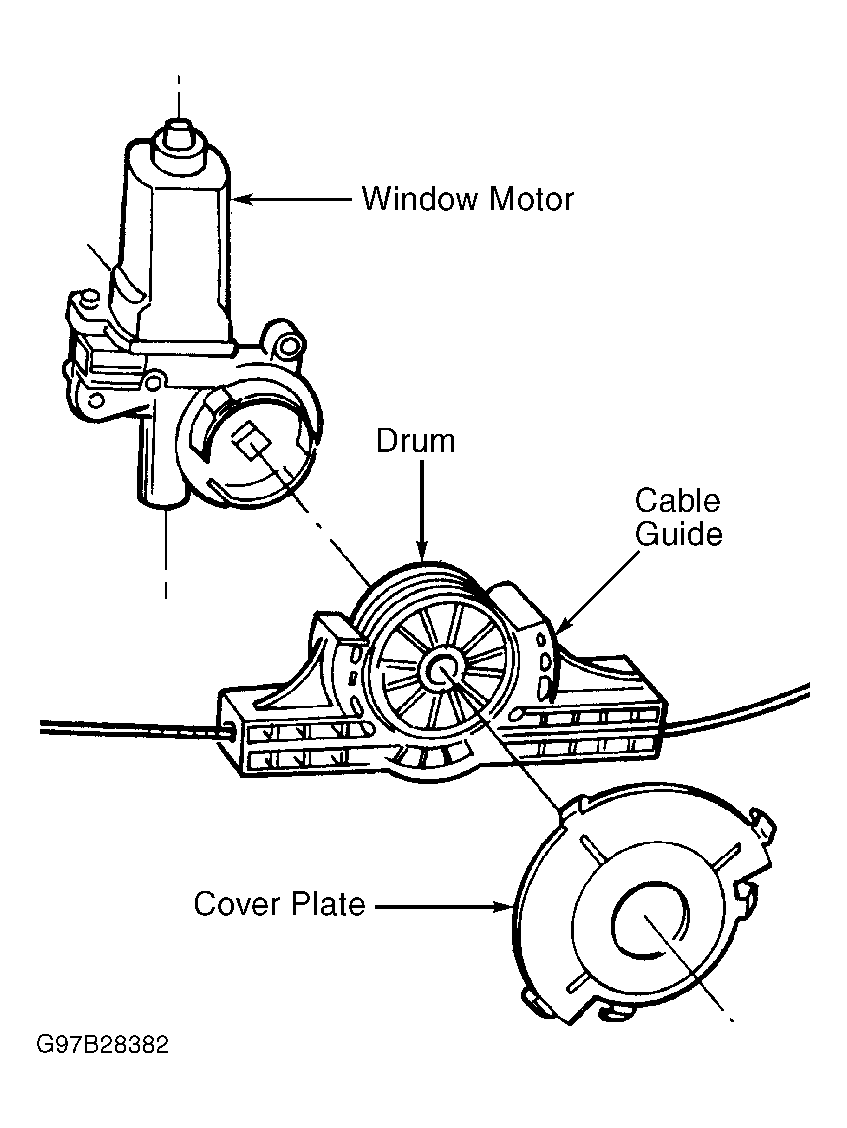

- Install NEW window motor. Tighten screws/nuts to 30-40 INCH lbs. (3.4-4.5 N.m). Install cable guide and drum into window motor. To install drum onto window motor shaft, a slight rotation of drum may be necessary.
- Using needle nose pliers, rotate drum. If drum still does not align with motor shaft, with aid of an assistant, lower window glass 1-2 inches. Drum will rotate when glass is lowered.
- Install cover plate onto window motor. Connect window motor connector. Remove tape holding window in place. Test window operation. To complete installation, reverse removal procedure.
Courtesy of CHRYSLER CORP.
