Door Lock Switch

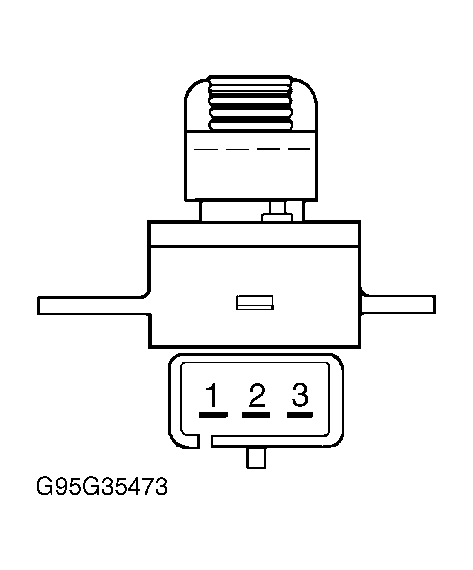

Remove switch. Check resistance between appropriate switch terminals with switch in LOCK and UNLOCK positions. See DOOR LOCK SWITCH RESISTANCE table. See Fig 1 . Replace switch if readings are not as specified.
DOOR LOCK SWITCH RESISTANCE
| Terminals No. | Ohms (Approx.) | |
|---|---|---|
| 1 & 2 | ||
| Lock | 1500 | |
| Unlock | 249 | |
