TC-49A: Pcm Failure EEPROM Write Denied

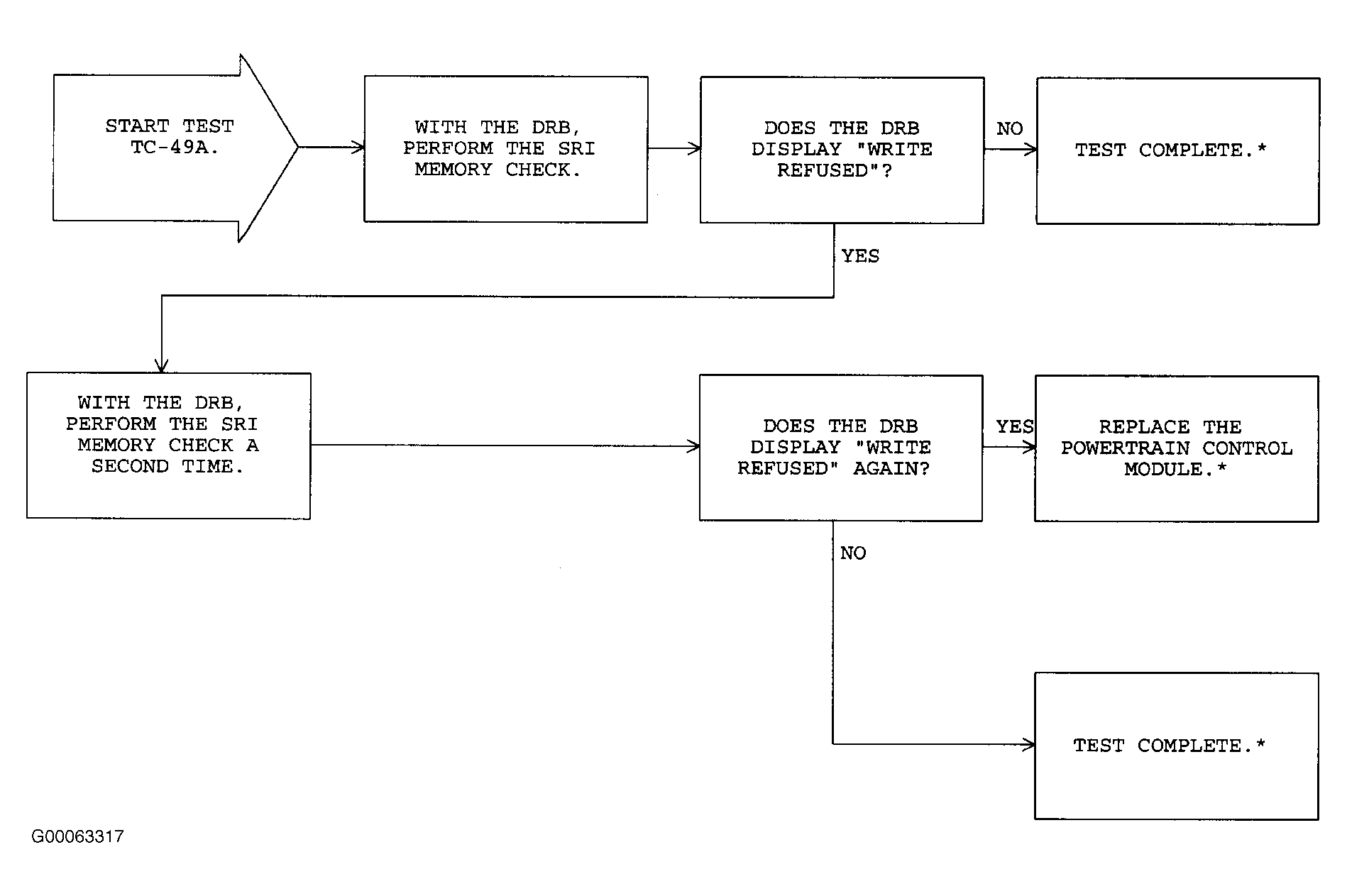

Fig 1: TC-49A: PCM Failure EEPROM Write Denied (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-49A: PCM Failure EEPROM Write Denied (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
