TC-16A: A/C Clutch Relay Circuit

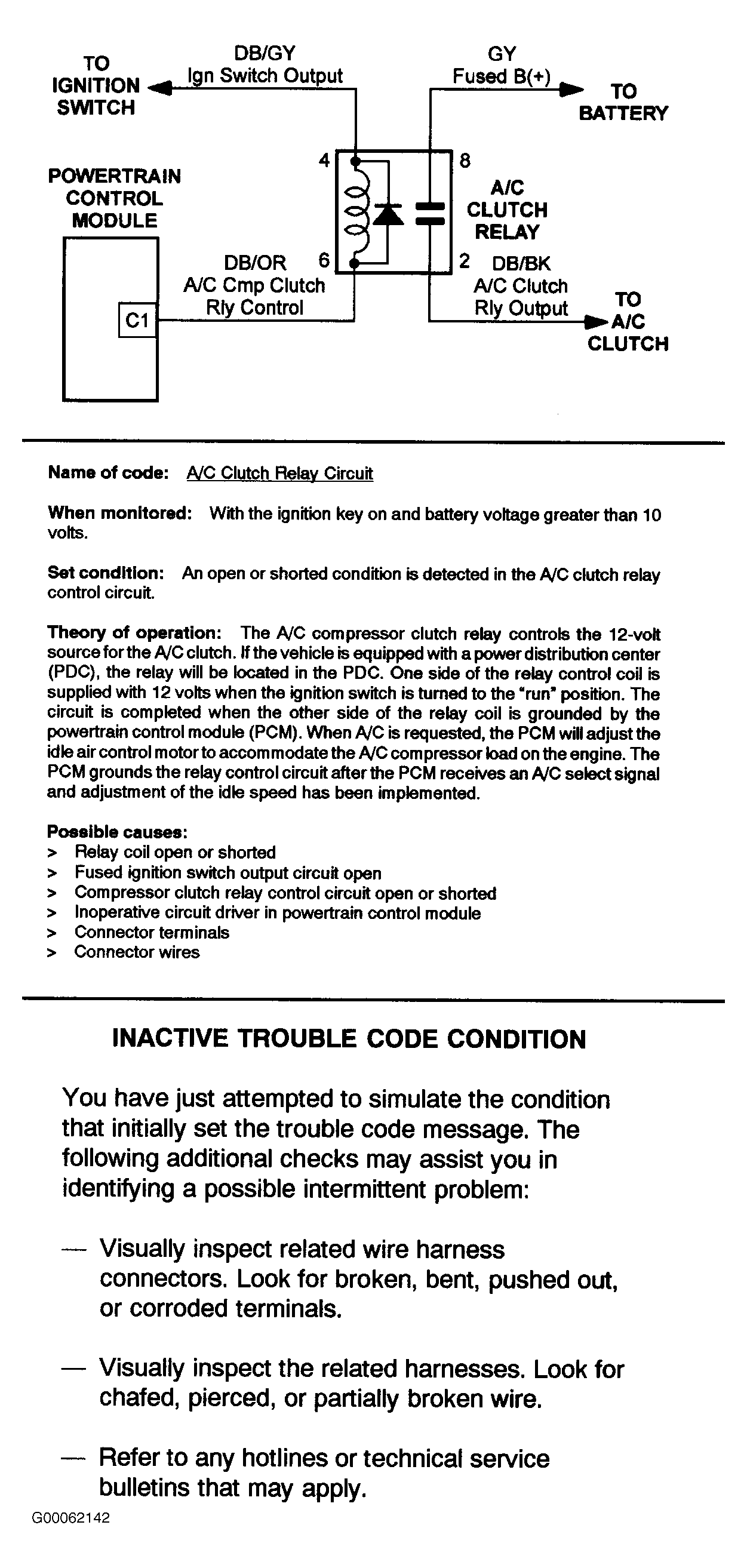

Fig 1: TC-16A: A/C Clutch Relay Circuit (1 Of 4)
G00062142Courtesy of DAIMLERCHRYSLER CORPORATION

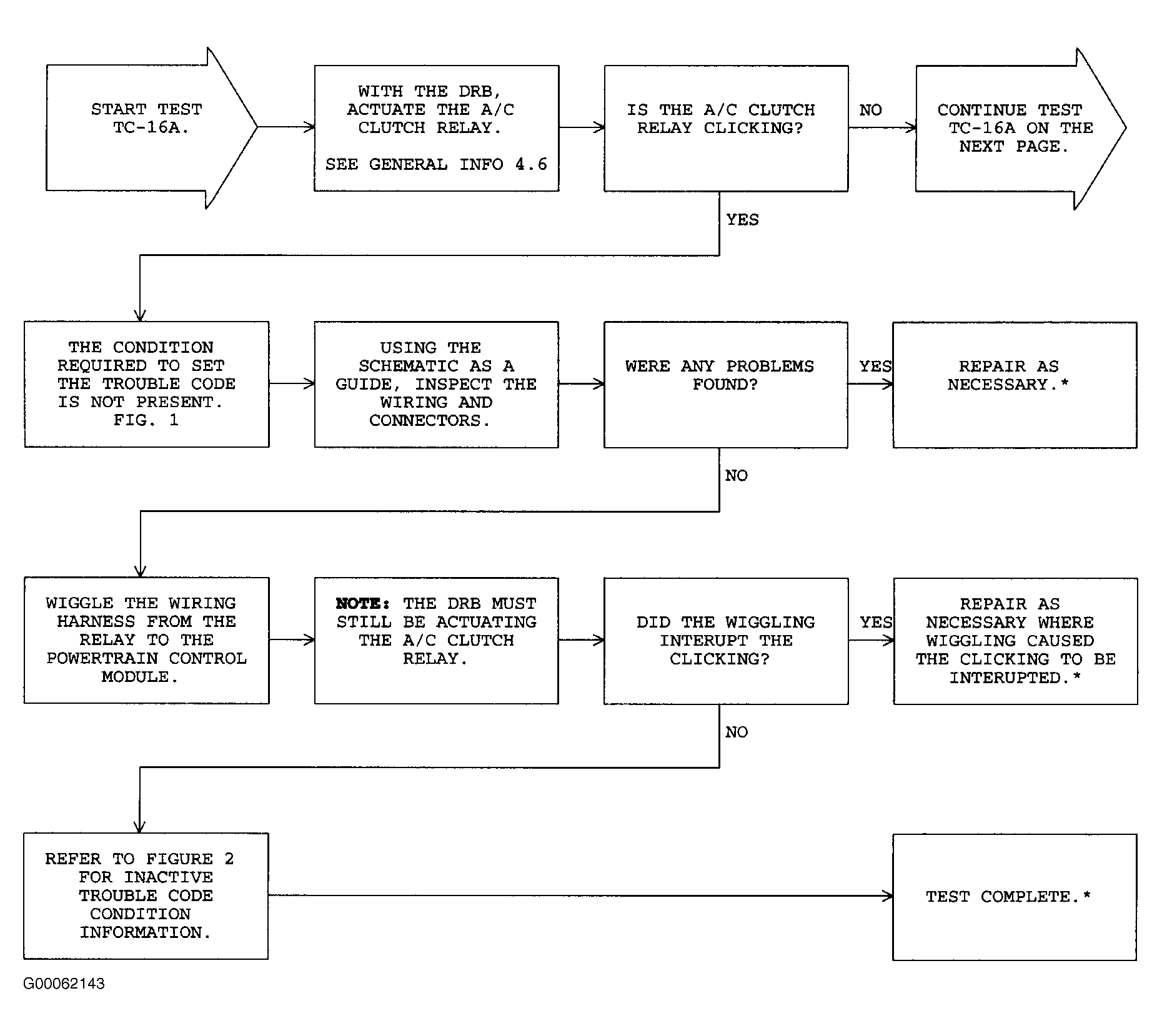

Fig 2: TC-16A: A/C Clutch Relay Circuit (2 Of 4)
G00062143Courtesy of DAIMLERCHRYSLER CORPORATION

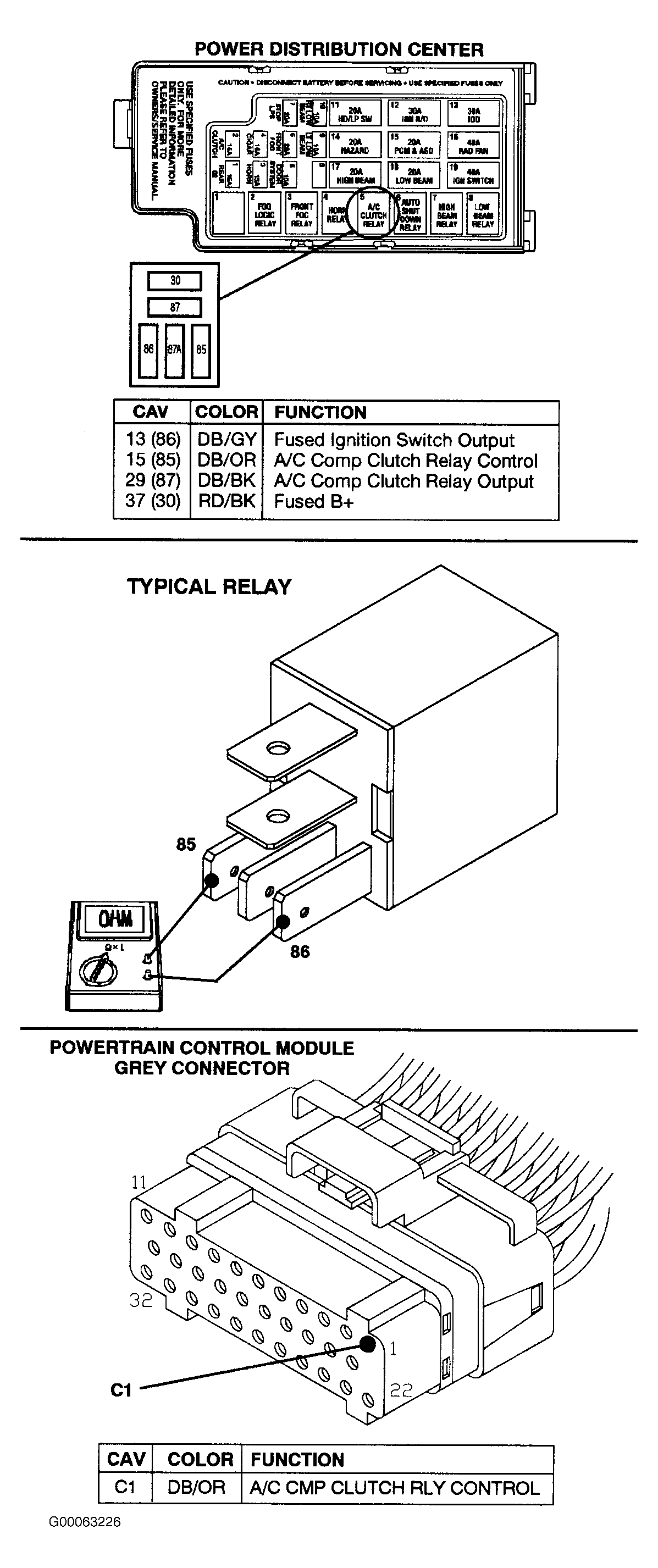

Fig 3: TC-16A: A/C Clutch Relay Circuit (3 Of 4)
G00063226Courtesy of DAIMLERCHRYSLER CORPORATION

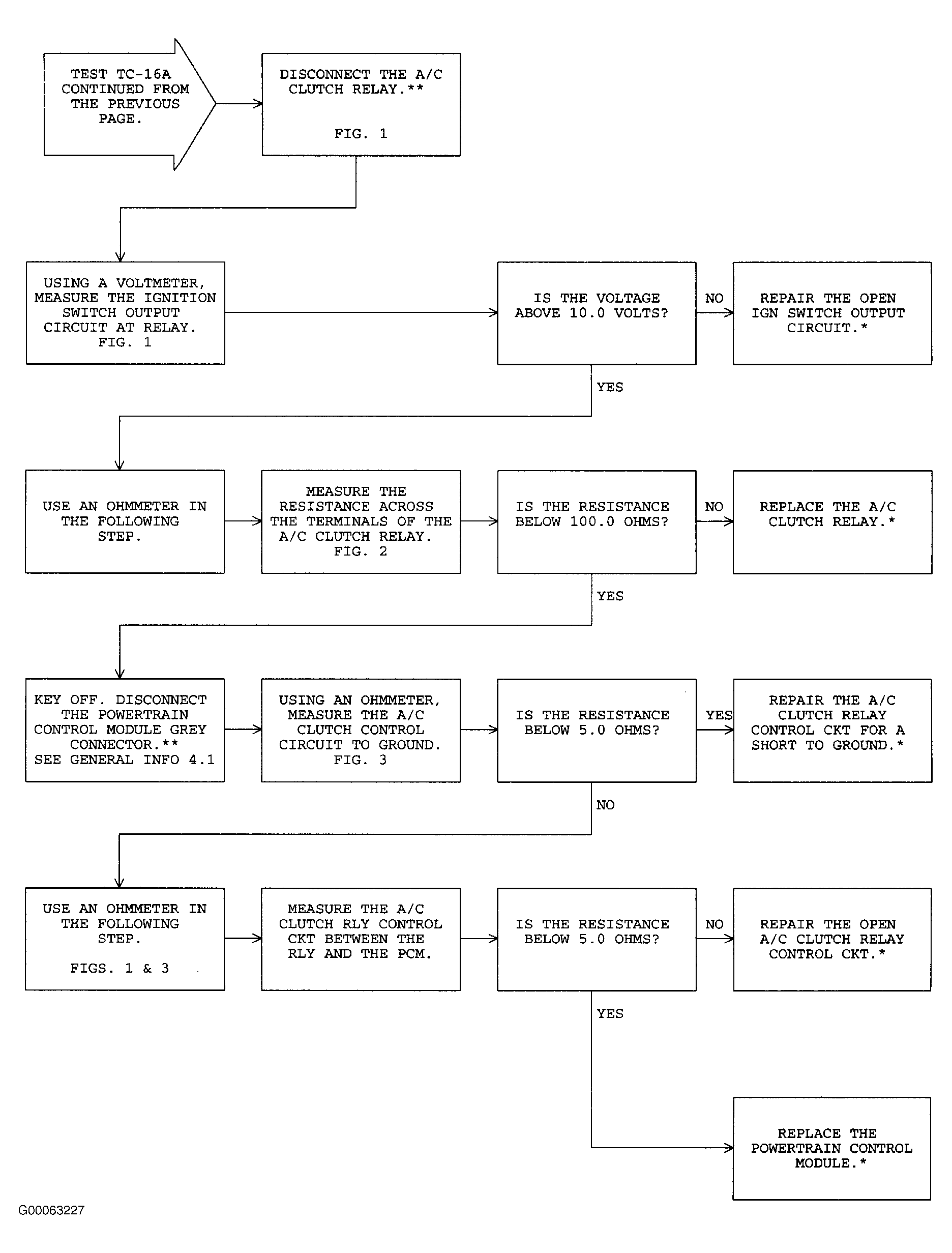

Fig 4: TC-16A: A/C Clutch Relay Circuit (4 Of 4)
G00063227Courtesy of DAIMLERCHRYSLER CORPORATION
