TC-106A: Multiple Cylinder Misfire

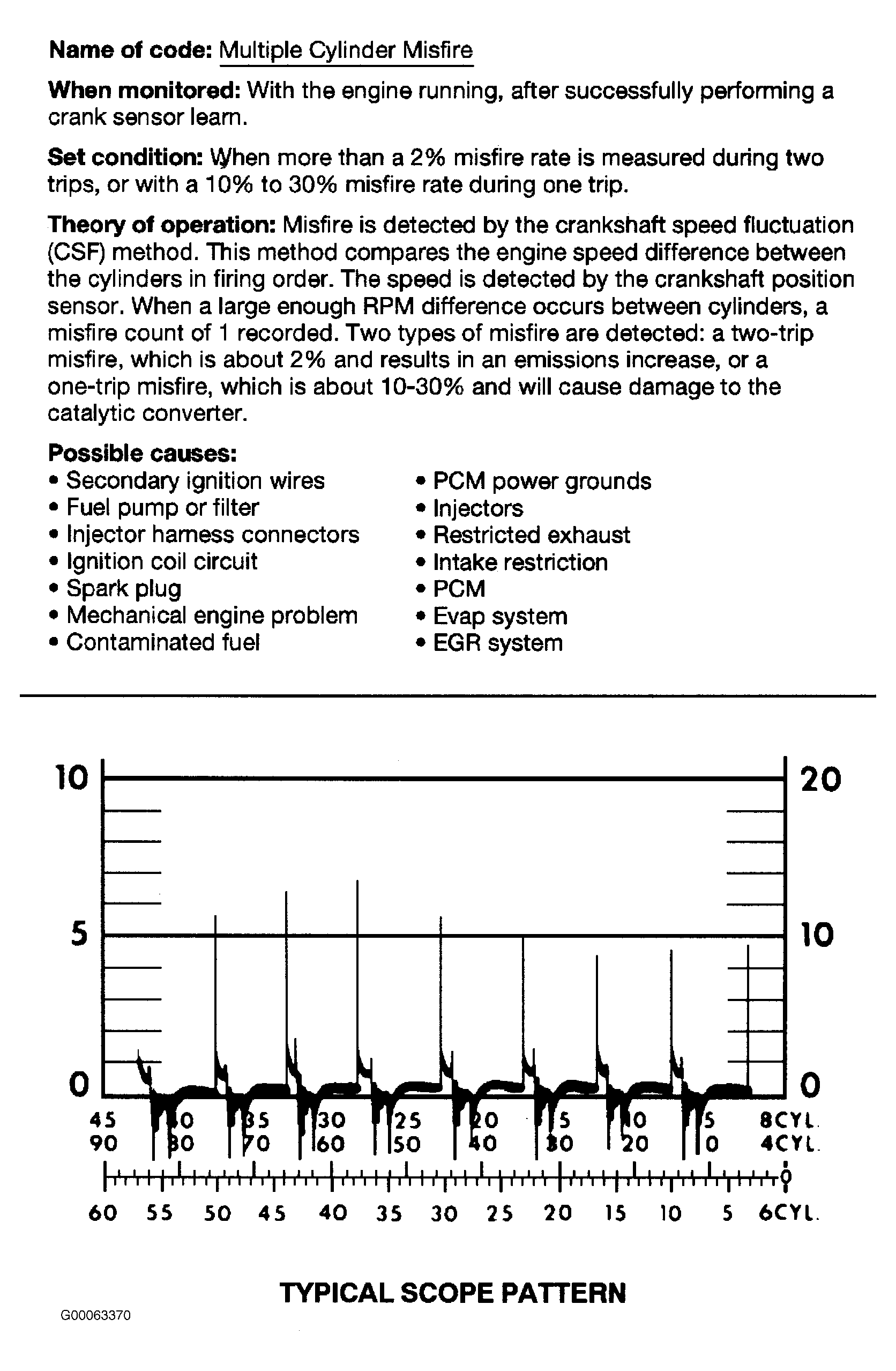

Fig 1: TC-106A: Multiple Cylinder Misfire (1 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-106A: Multiple Cylinder Misfire (2 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: TC-106A: Multiple Cylinder Misfire (3 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: TC-106A: Multiple Cylinder Misfire (4 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: TC-106A: Multiple Cylinder Misfire (5 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: TC-106A: Multiple Cylinder Misfire (6 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: TC-106A: Multiple Cylinder Misfire (7 Of 7)

Courtesy of DAIMLERCHRYSLER CORPORATION
