TC-93A: High Speed Fan Relay Circuit

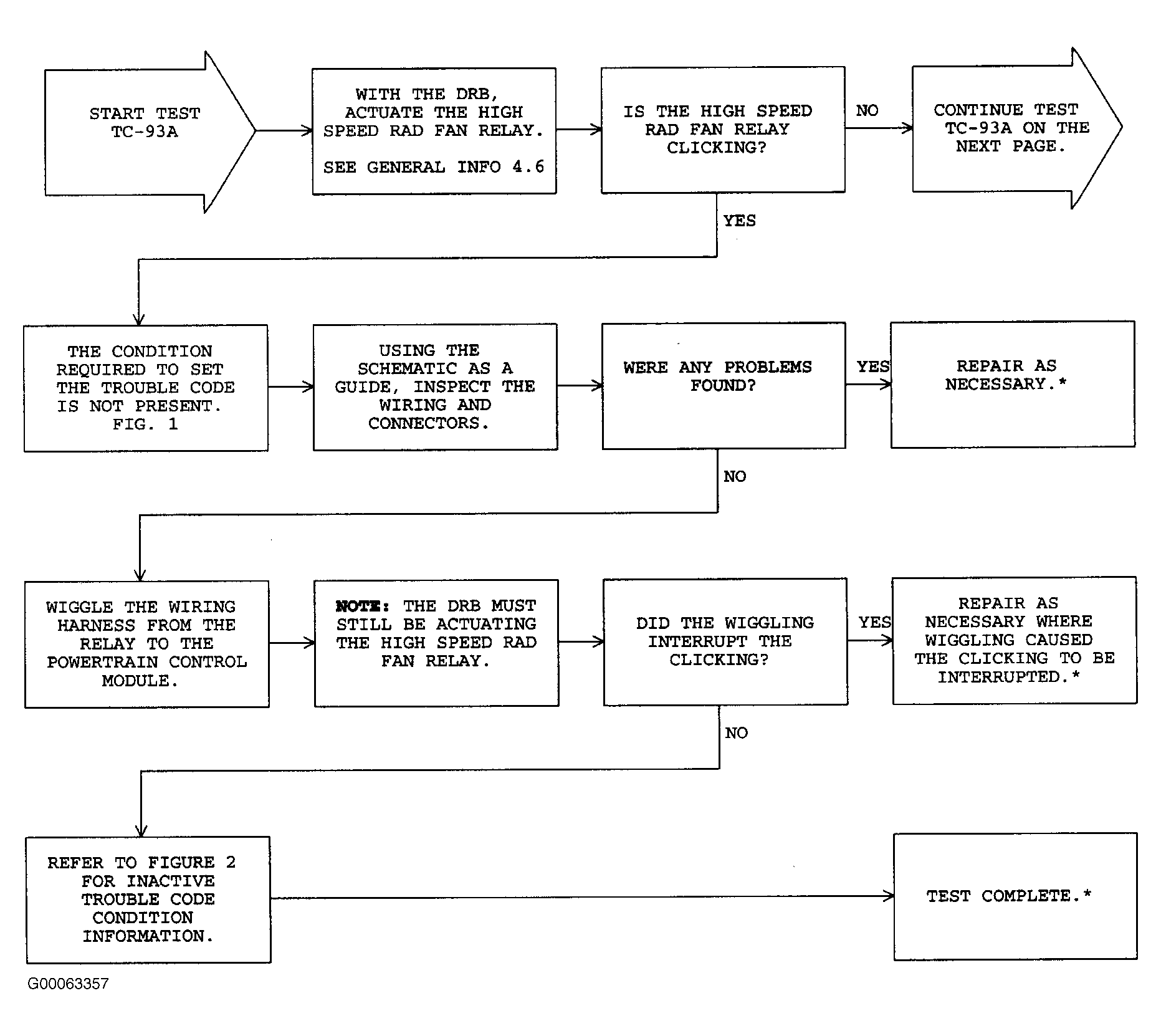

Fig 1: TC-93A: High Speed Fan Relay Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

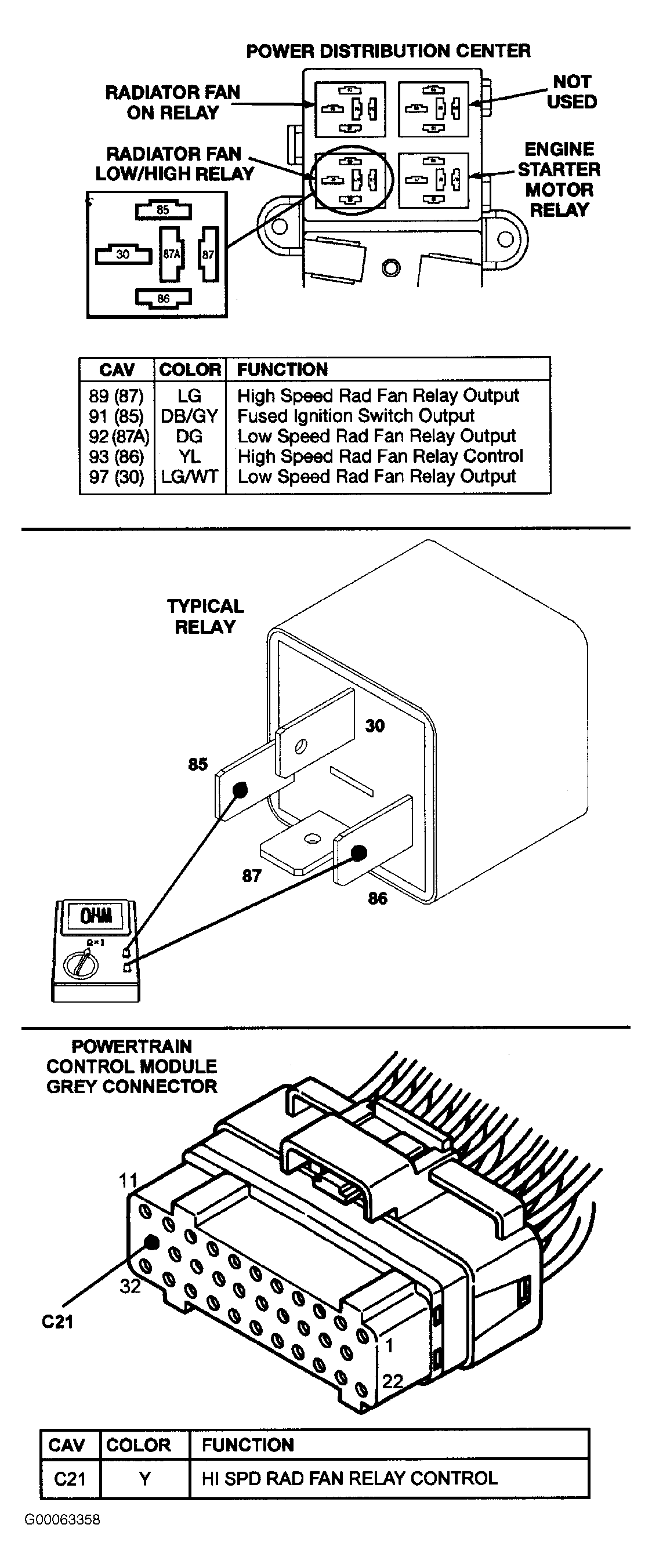

Fig 2: TC-93A: High Speed Fan Relay Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

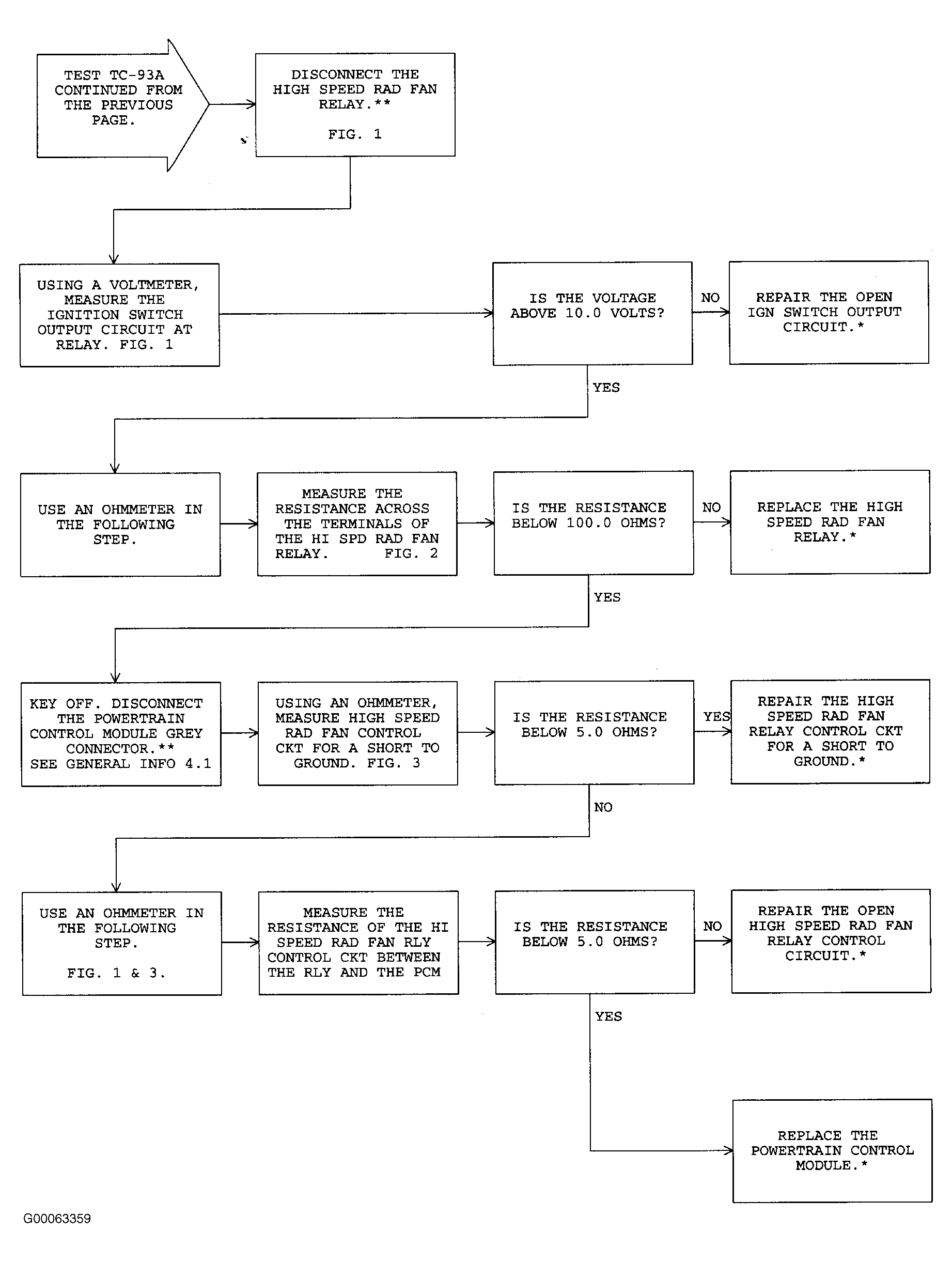

Fig 3: TC-93A: High Speed Fan Relay Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

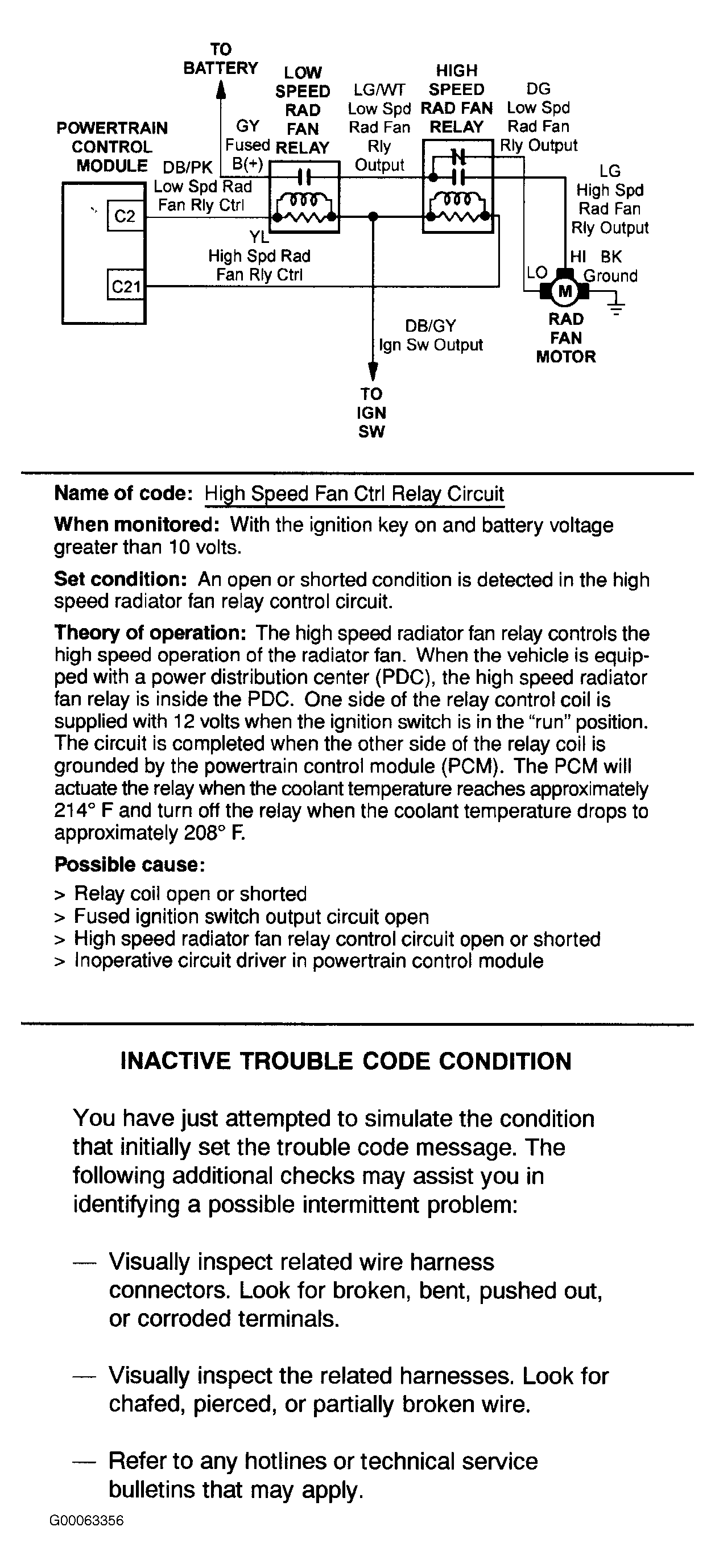

Fig 4: TC-93A: High Speed Fan Relay Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
