TC-92A: Low Speed Fan Relay Circuit

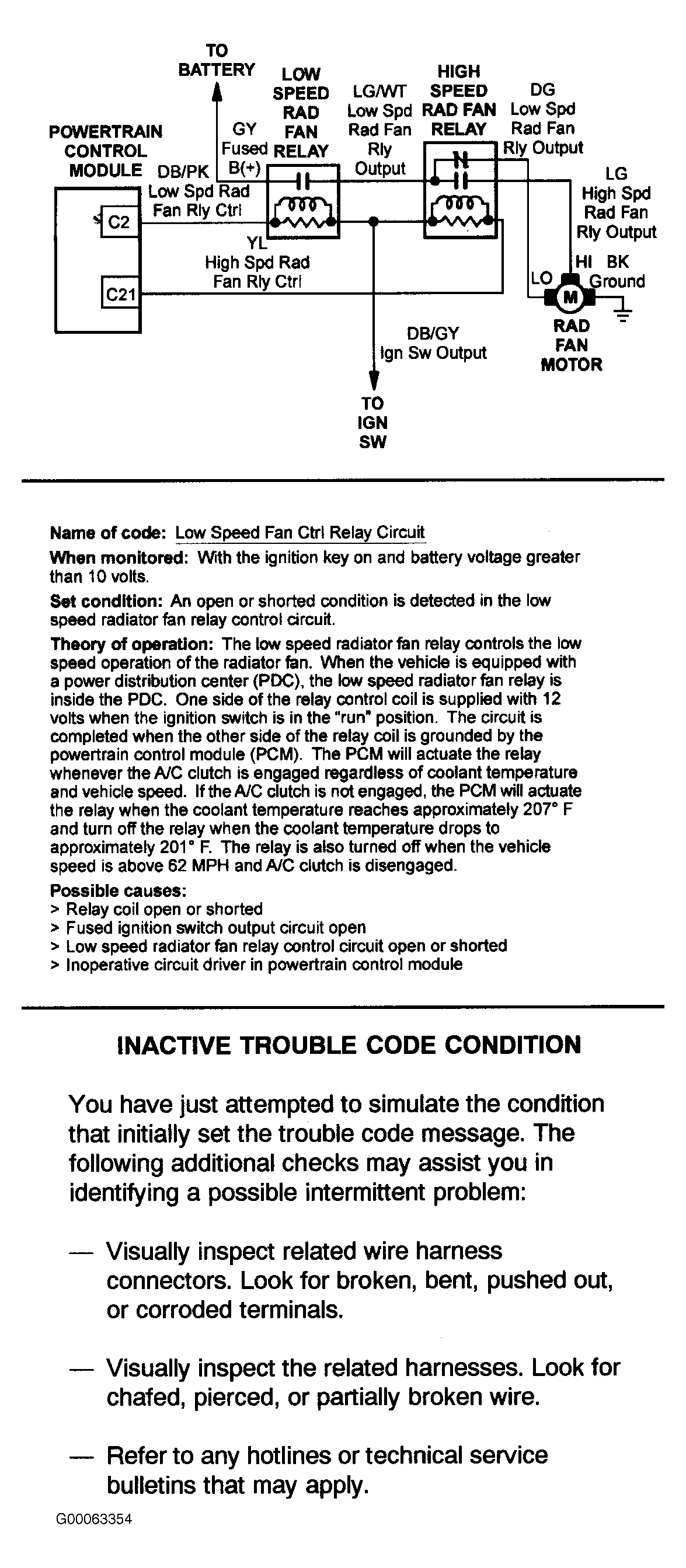

Fig 1: TC-92A: Low Speed Fan Relay Circuit (1 Of 4)
G00063354Courtesy of DAIMLERCHRYSLER CORPORATION

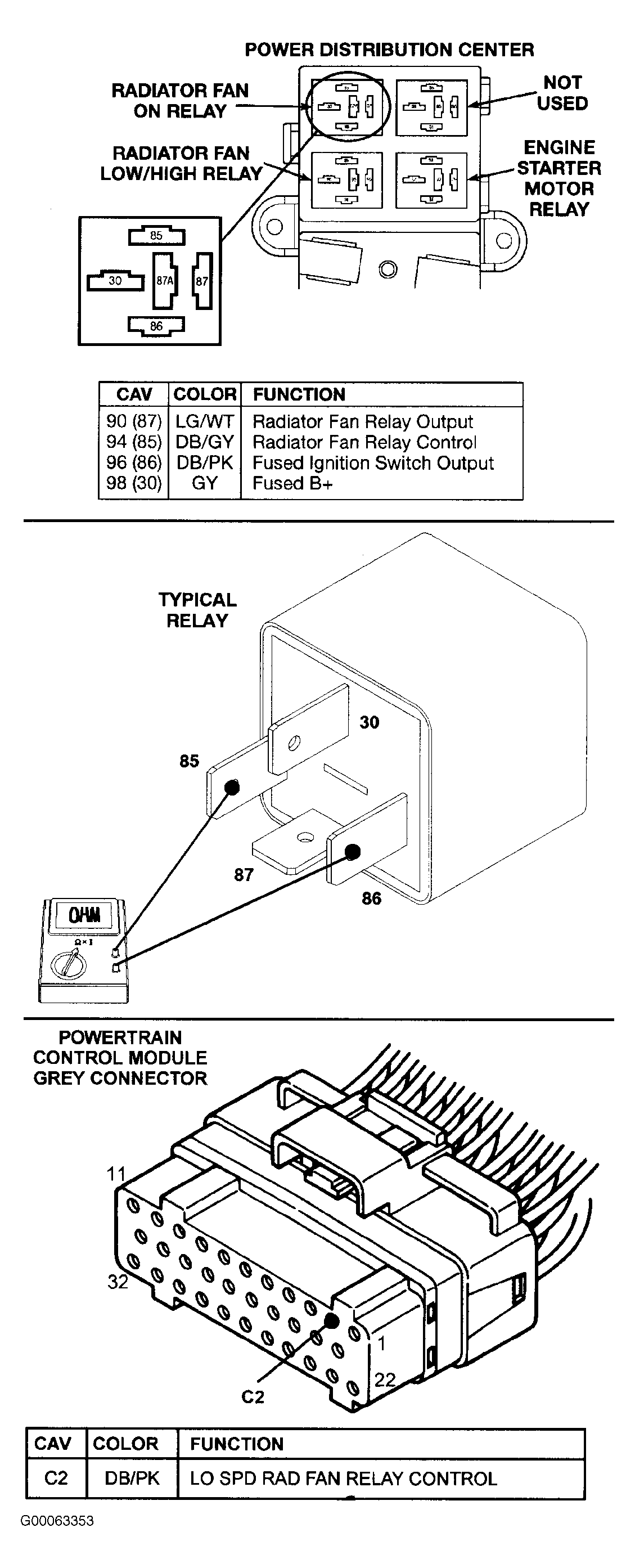

Fig 2: TC-92A: Low Speed Fan Relay Circuit (2 Of 4)
G00063352Courtesy of DAIMLERCHRYSLER CORPORATION

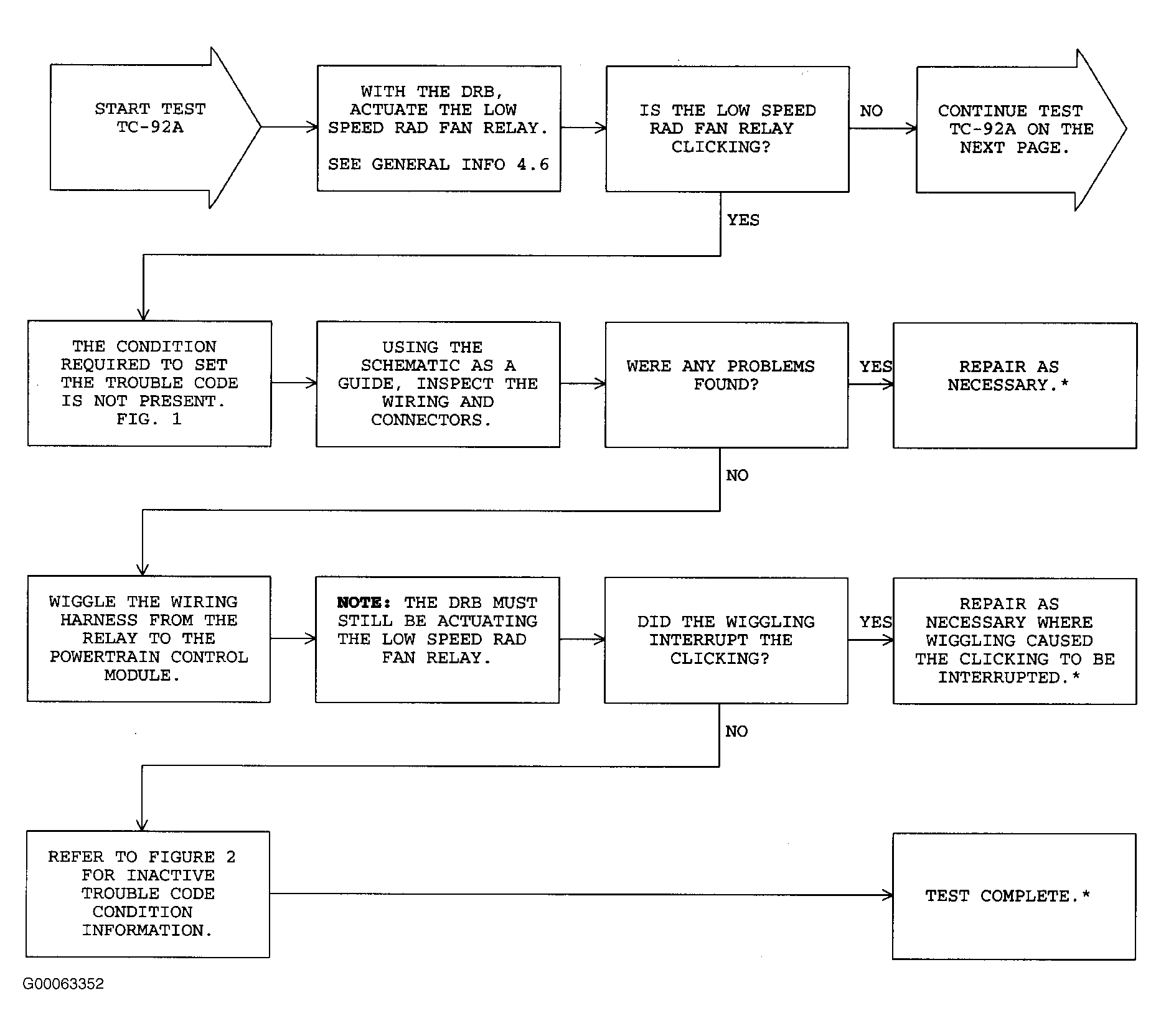

Fig 3: TC-92A: Low Speed Fan Relay Circuit (3 Of 4)
G00063353Courtesy of DAIMLERCHRYSLER CORPORATION

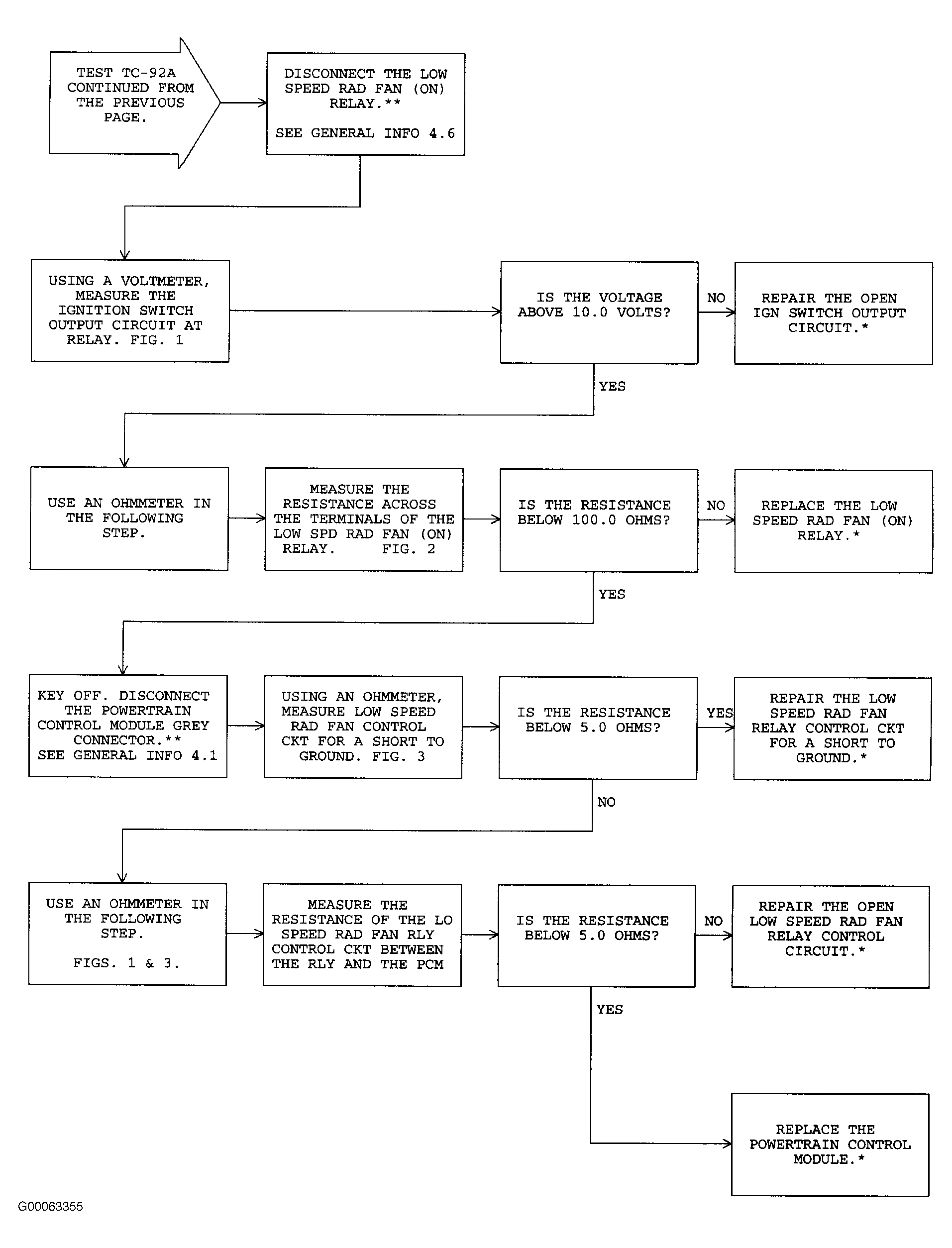

Fig 4: TC-92A: Low Speed Fan Relay Circuit (4 Of 4)
G00063355Courtesy of DAIMLERCHRYSLER CORPORATION
