TC-25D: Idle Air Control Motor Circuits

NOTE: Perform Test TC-25A Before Proceeding

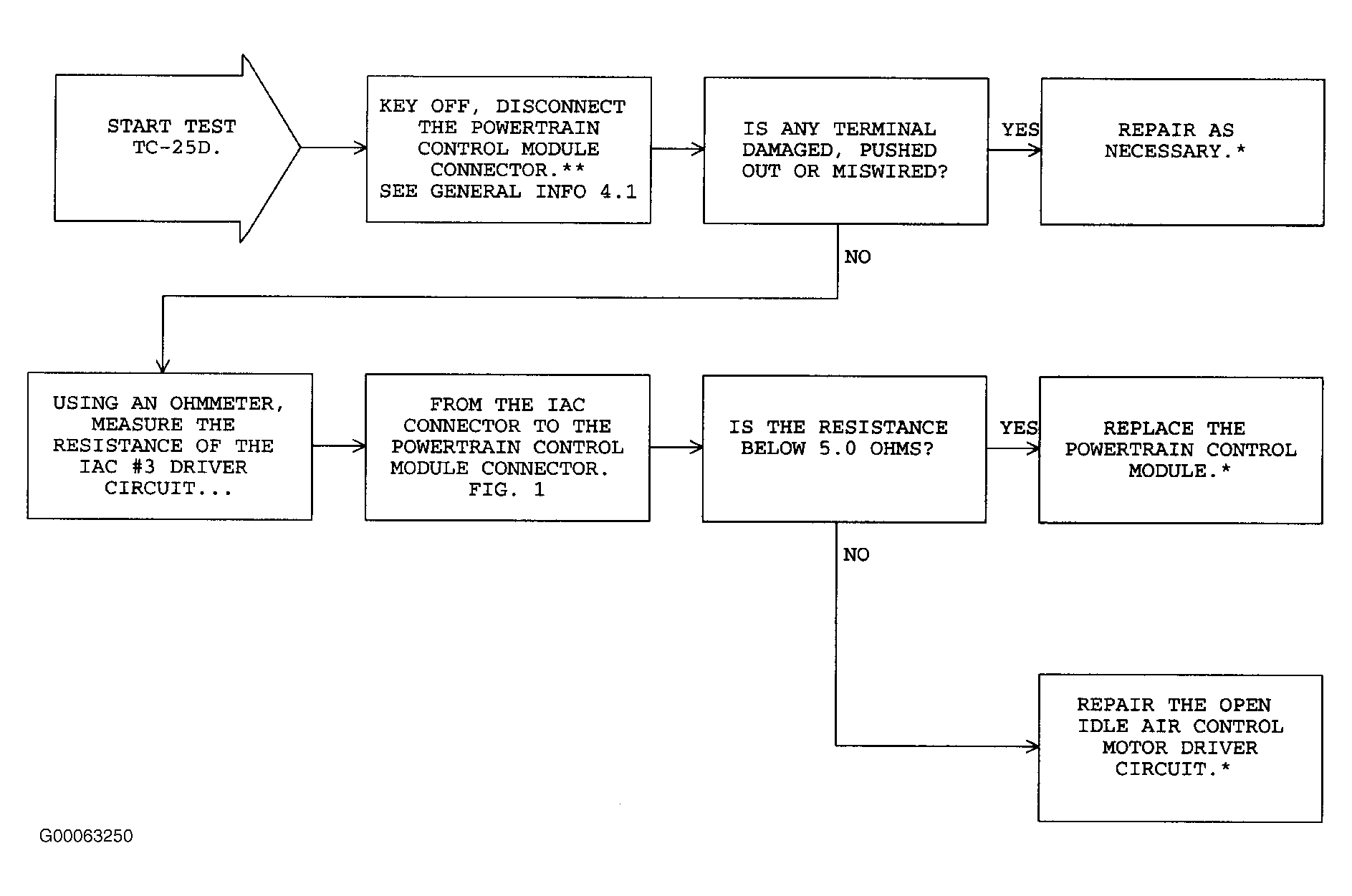

Fig 1: TC-25D: Idle Air Control Motor Circuits (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-25D: Idle Air Control Motor Circuits (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
